Assembly of the right and left hand side
are the same.
Assembly of the right and left hand side
are the same.

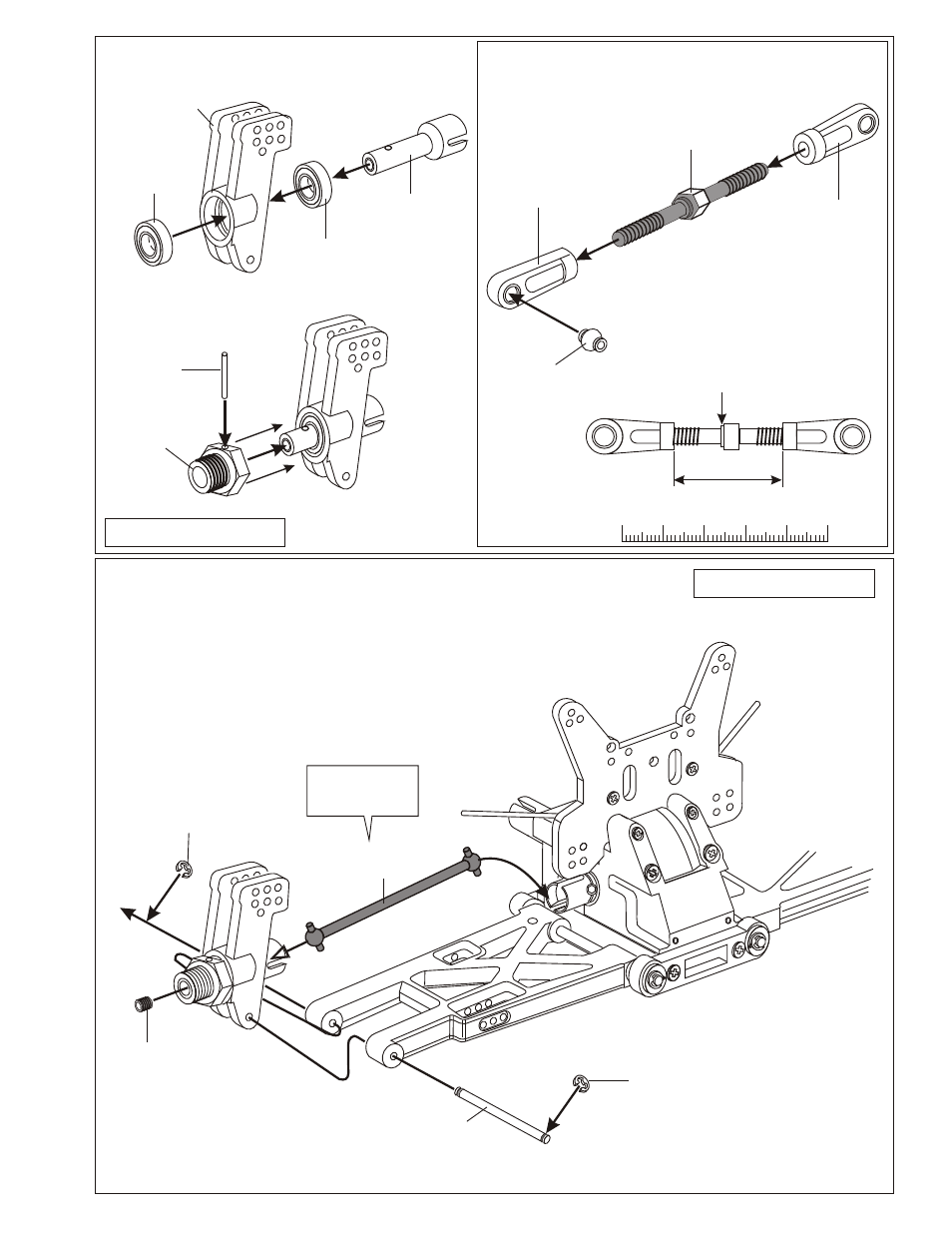

ASSEMBLY OF THE REAR HUB
36055
2.5 x 17mm
Pin
36054
Wheel Hub
( Alum. )
36053
8 x 16 x 5
Ball Bearings
36053
8 x 16 x 5
Ball Bearings
36082
Rear Wheel
Axle Shaft
36081
Rear Hub
0 10 20 30 40 50
mm
90020
2.5mm
E-Ring
5x5mm
Set Screw
* Insert rear drive shaft
befor assembly.
36110
Rear Drive
Shaft
* Do not r tighten
5x5mm set screw over tighten.
36170
3mm
Rear Arm Shaft
90020
2.5mm
E-Ring
ASSEMBLY OF THE REAR DRIVE SHAFT
* Builds two upper Rods for left and right side.
36690
7mm Plastic
Arm Ball End
36690
7mm Plastic
Arm Ball End
36880
5x60mm
Turnbuckle
36850
7mm Ball
* Anticlockwise mark.
42mm
