Page 17
Center Gear Assembly

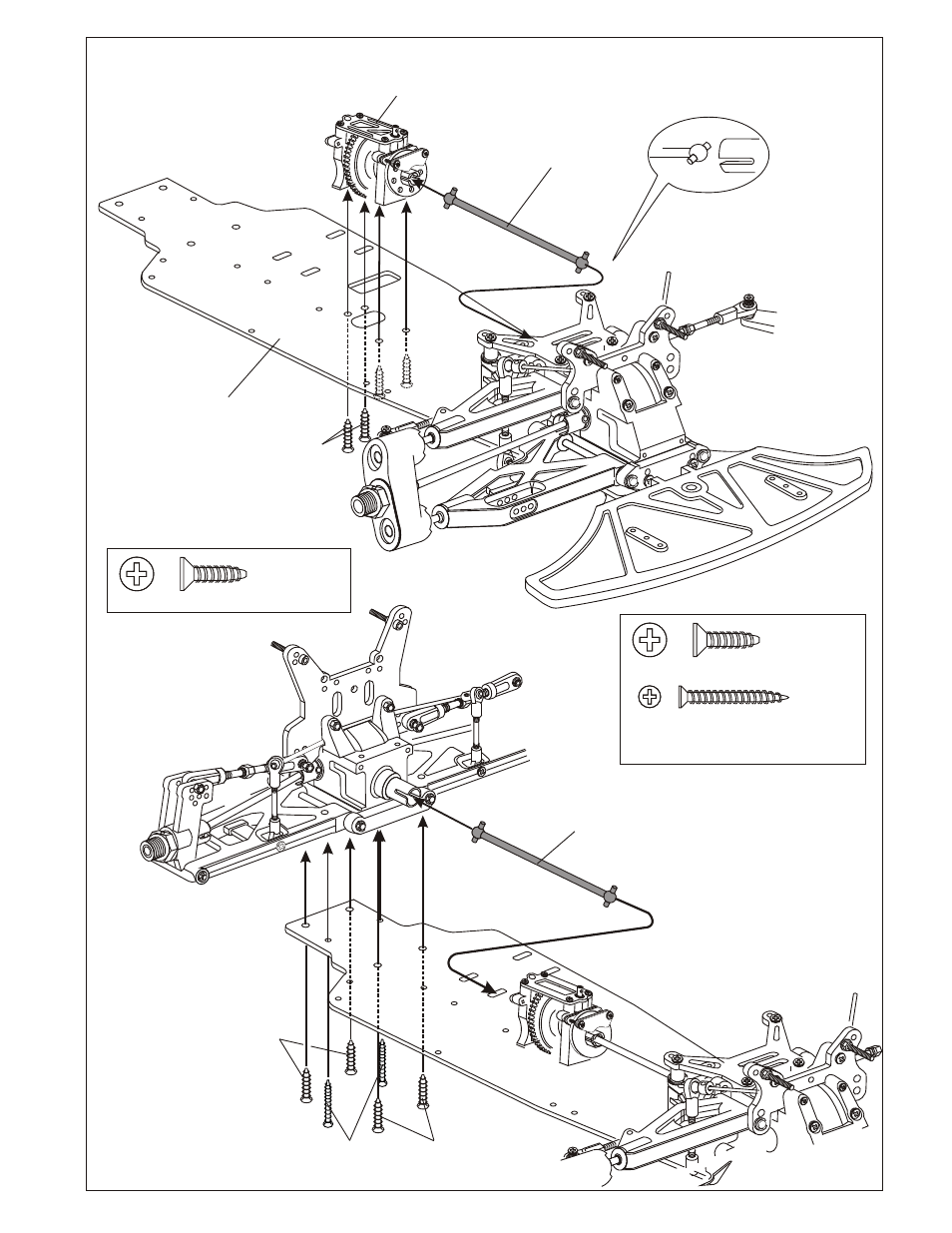

ASSEMBLY OF THE CENTER DRIVE SHAFT
R
0
1
4 x 16mm
Flat Head
Tapping Screw x4
4 x 16mm
Flat Head
Tapping Screw x4
34040
Chassis
* Insert drive shaft into
cap joint.
34050
Center Drive
Shaft (Front)
4 x 16mm
Flat Head
Tapping Screw
34050
Center Drive
Shaft (Rear)
* Insert drive shaft into cap joint.
4 x 16mm
Flat Head
Tapping Screw
4 x 16mm
Flat Head
Tapping Screw
3 x 25mm
Flat Head
Tapping Screw
( 2 Pcs )
3 x 25mm
Flat Head
Tapping Screw x2
