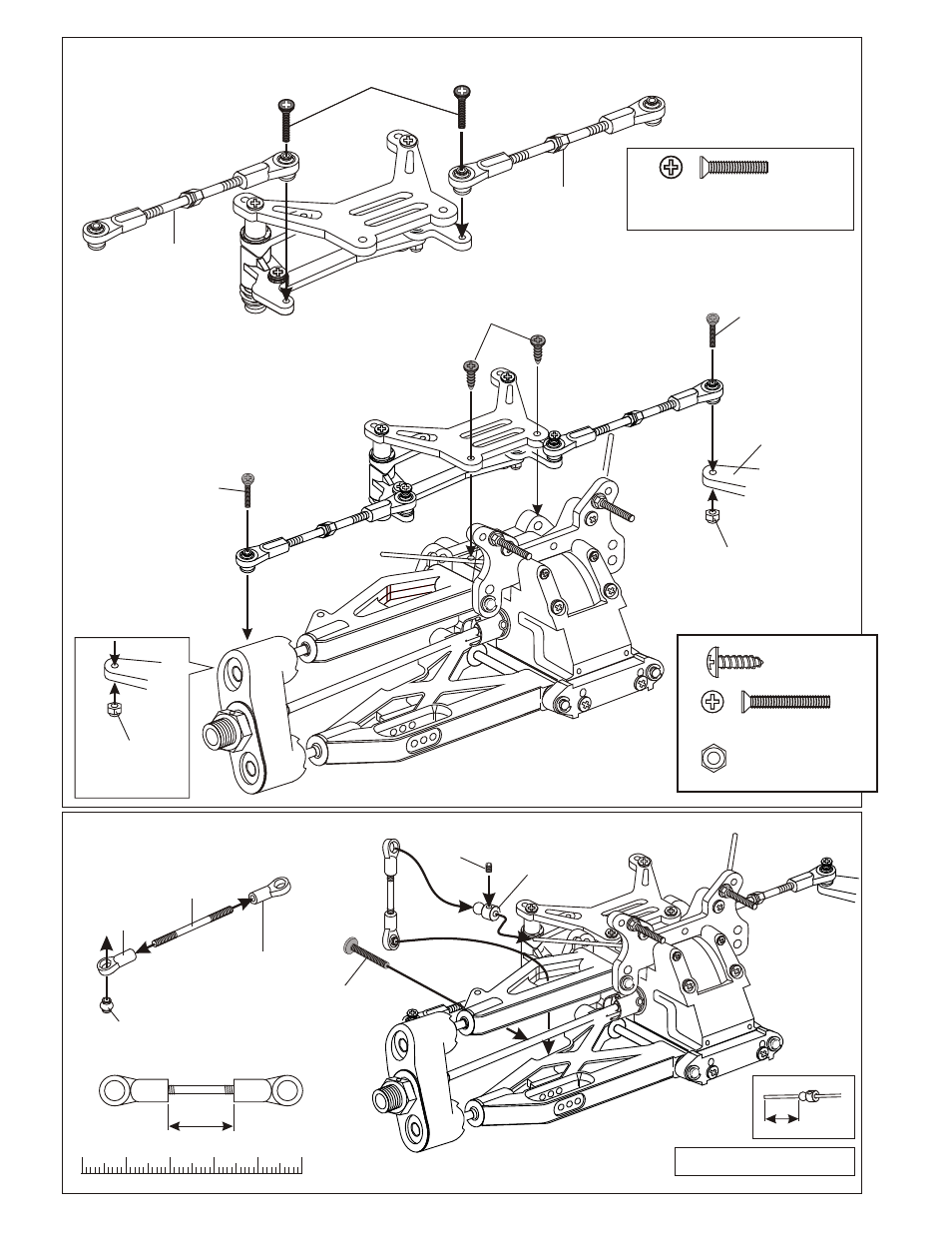

ASSEMBLY OF THE FRONT PLATE AND
STEERING ROD
Front Steering Rod
( Right )
Front Steering Rod
( Left ) 3 x 15mm Flat Head
Screw
ASSEMBLY OF THE FRONT PLATE
ONTO THE FRONT GEAR BOX
3 x 20mm Flat Head
Screw
3mm nylon
Lock Nut
3 x 10mm
Tapping Screw
3 x 20mm
Flat Head Screw
3 x 20mm
Flat Head Screw
R 0
1
3mm
Nylon Lock Nut
3mm
Nylon Lock Nut
Knuckle Arm
( Left-Side )
3x10mm
Tapping Screw
¦ Ы § р ¤ ъ Б ³ µ ·
3x15 Flat Head
Screw
R R
0
1
ASSEMBLY OF THE STABILIZER ROD
(#30340 Anti-roll Kit)
0 10 20 30 40 50
mm
15mm
30402
3 X 30mm
Tie Rod
30403
6mm
Ball Joint
30411
6mm
Ball Joint
30401
6mm
Stabilizer
Ball End
3 x 15mm
Screw
3 x 3mm
Set Screw
30340
6mm
Stabilizer
Ball End
Assembly of the right and left hand side
are the same.
* Insert stabilizer rod
into upper arm.
30mm
