Assembly of the rear shock tower – OFNA Racing Ultra GTP MBX User Manual

Page 11

4 X 10mm
Set Screw

3mm
E-Ring

36030
Rear Lower
Arms

* Don't over tighten tapping screw.

30340
Stabilizer Bar

30351
Rear Lower Arm
Holder

30350
Rear Wheel
Toe-in Cams

30151
Arm Shaft
(Long)

* A 4 x 10mm set screw is used
to adjust the ride height.

3mm
E-Ring

34009
Rear Shock
Tower, GTP & WII

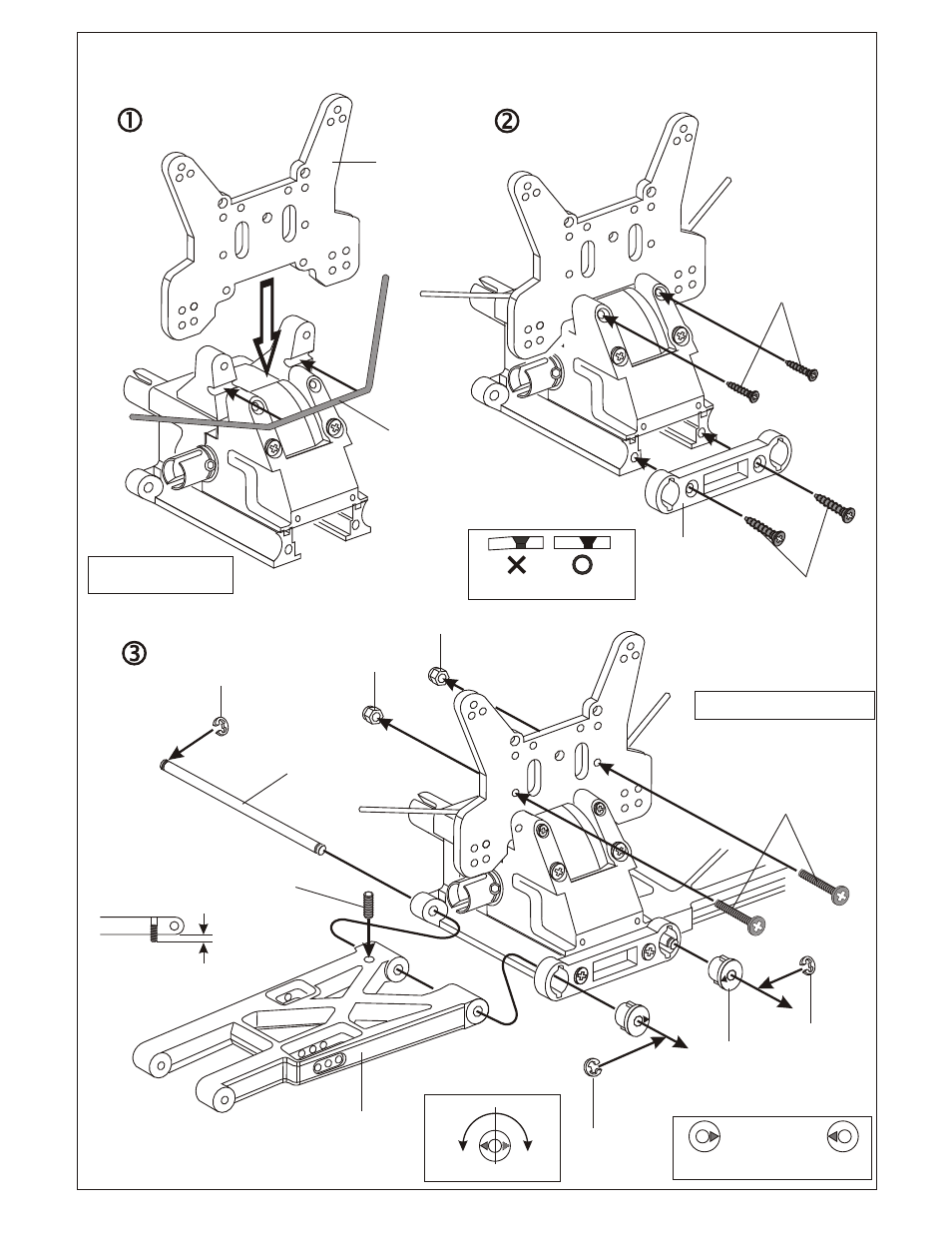

ASSEMBLY OF THE REAR SHOCK TOWER

4x16mm
Flat Head
Tapping Screw

3 x 20mm
Flat Head
Screw

1
Degree

1.5
Degree

* Set triangle marks in
the direction shown
in Fig.1.

* Approx 3mm.

Fig.1

3mm
E-Ring

* Insert stabilizer before
assembly of the shock tower

Assembly of the right and left hand side
are the same.

3 x 15mm
Screw

M3
Nylon
Lock Nut
