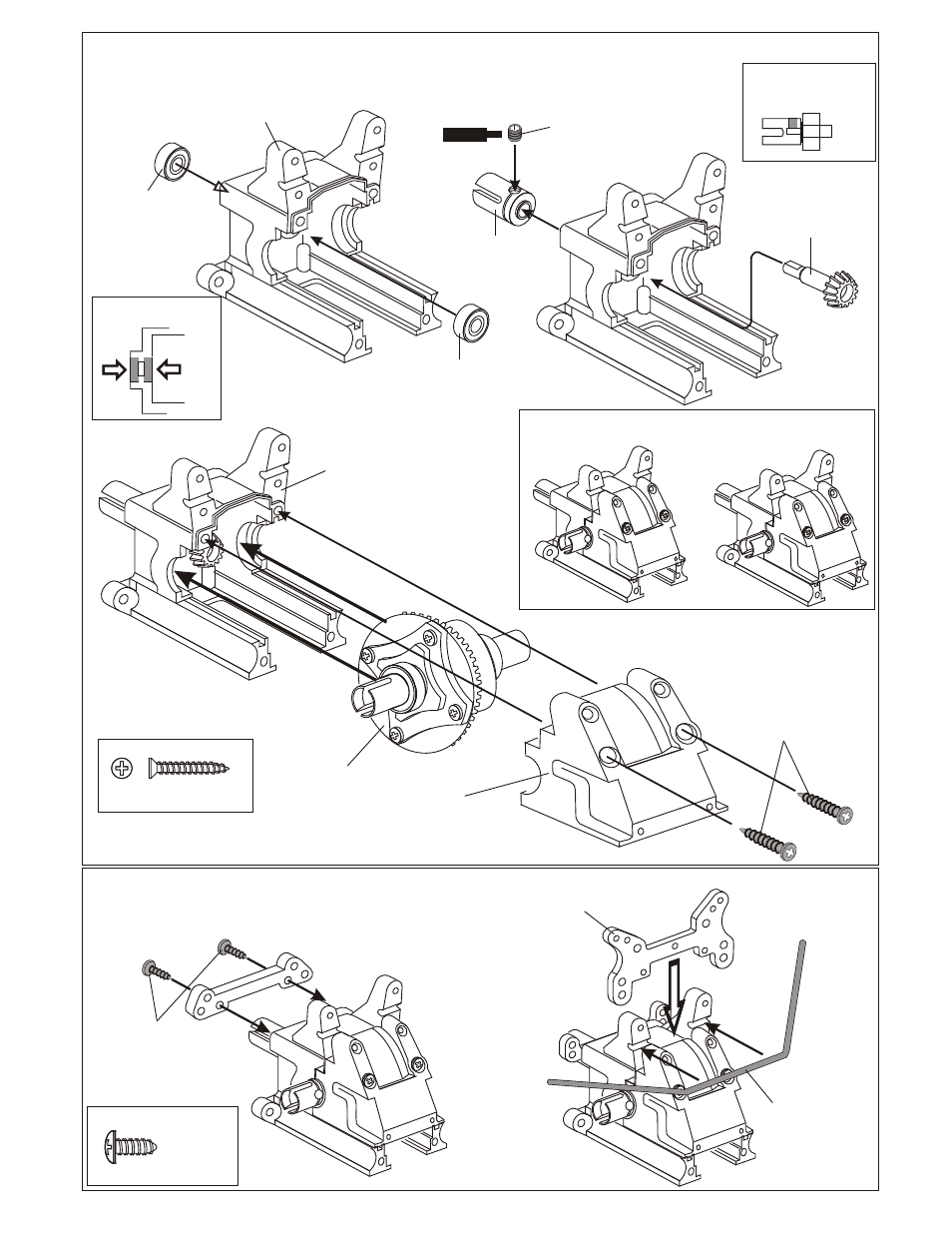

ASSEMBLY OF THE GEAR BOX
( Assemble two gear boxes for front and rear. )
5 x 5mm
Set Screw
30130
Bevel Gear
* Place set screw in D cut.
2
30630
6 x 13 x 5mm
Ball Bearing
* Insert two ball bearings
as shown.
36730
Cap Joint
Screw
Cement
1
30630
6 x 13 x 5mm
Ball Bearing
30010
Gear Box
3
* Make two gear boxes for front and
rear.
30010
Gear Box
Cover
30010
Gear Box
4 x 20mm
Flat Head
Tapping Screw
4 x 20mm Flat Head
Tapping Screw
34008
Front Shock Tower,GTP
4 x 10mm
Tapping Screw
ASSEMBLY OF THE FRONT SHOCK TOWER
4 x 10mm
Tapping Screw
Front Diff. Assembly
30340
Stabilizer Bar
* Insert the stabilizer before
assembly th shock stay.
