Page 14

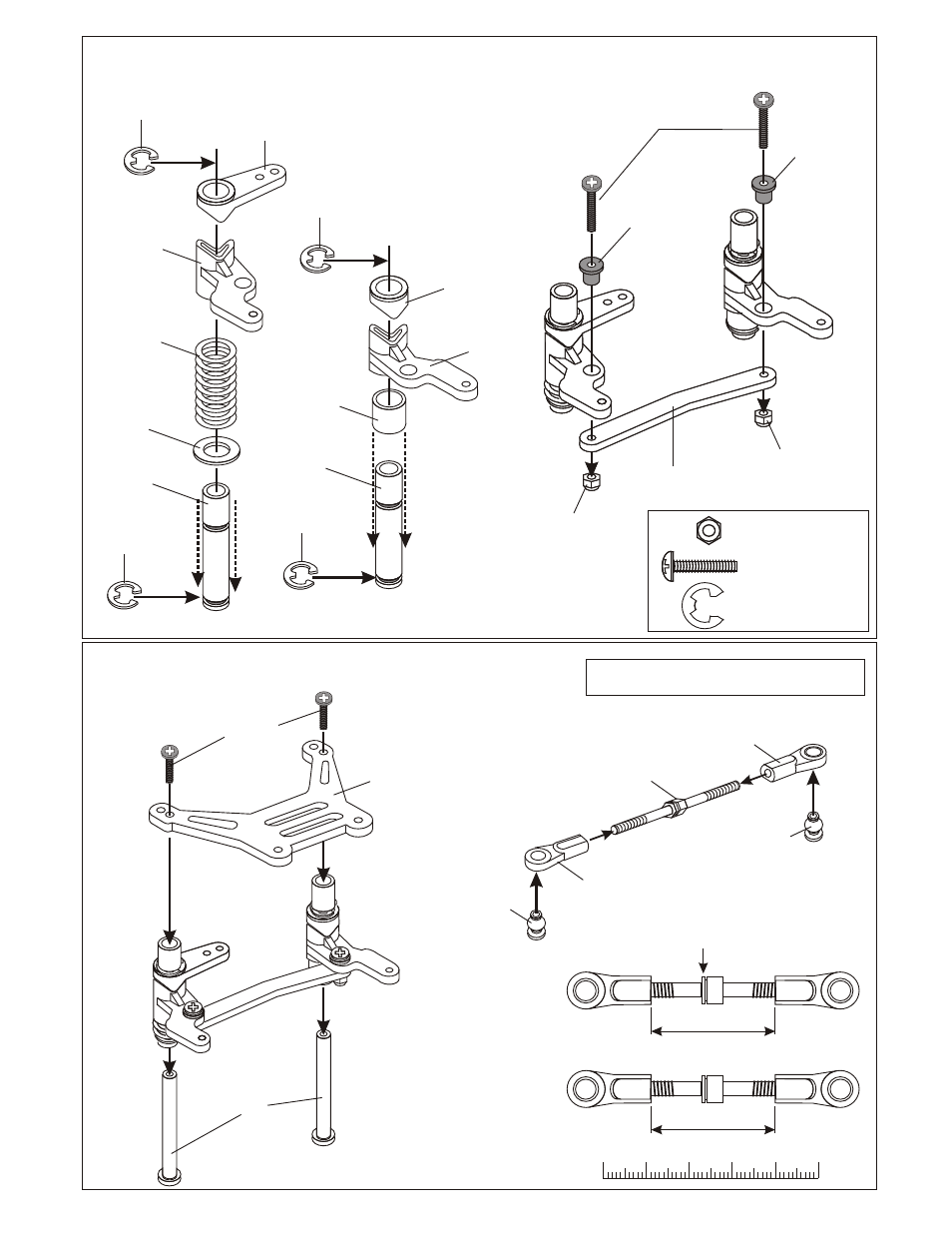

ASSEMBLY OF THE SERVO SAVER

3 x 15mm
Screw

36742
Servo Saver
Bushing

36750
Servo Saver
Connector

3mm
Nylon Lock Nut

6 mm E-Ring

M3 Nylon Locknut

3 x 15mm Screw

(36740 Servo Saver Plastic parts)

36743
6mm
E-Ring

36740
Servo Saver
Horn B

36740
Servo Saver
Horn A

36740
Servo Saver
Top Adapter

36741
Servo Saver
Spring

36740
Servo Saver
Shaft
(Brass)

Plastic Tube

36741
8x12mm
Washer

ASSEMBLY OF THE FRONT PLATE AND
STEERING ROD

3 X 10mm
Screw

30540
Front Plate

30380
Servo Saver
Post

0 10 20 30 40 50

* Made two steering rods for left and right-side.

30410
6mm Steering
Ball End

30410
6mm
Ball & Socket

30400
3 x 46mm
Turnbuckle

35mm

* Anticlockwise mark.

( Left-Side )

( Right-Side)
