OFNA Racing Ultra GTP MBX - Manual (Page 7)

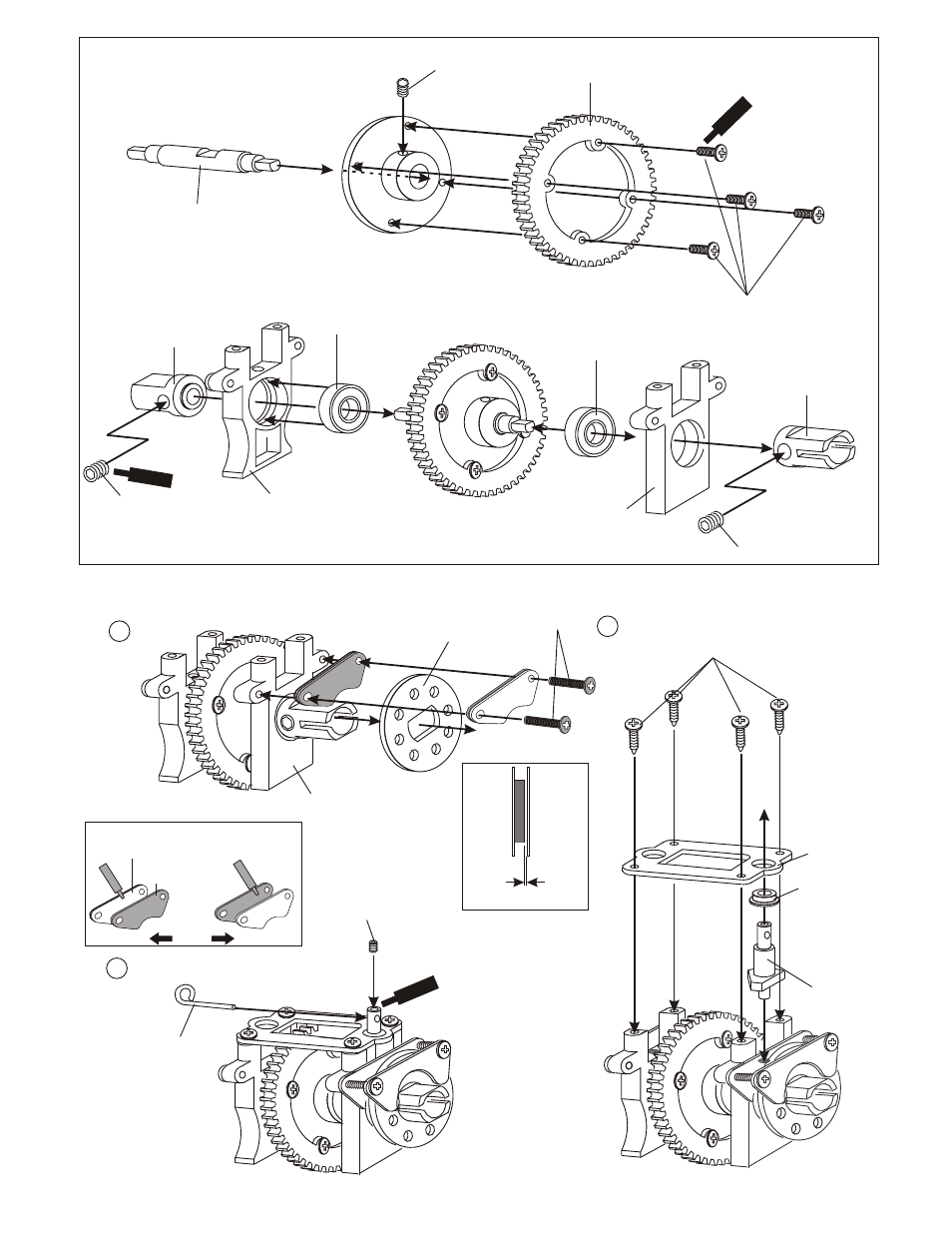

ASSEMBLY OF THE SPUR GEAR
(Solid Center Drive)
ASSEMBLY OF THE CENTER PLATE
90026
5 X 5mm
Set Screw
90026
5 X 5mm
Set Screw
90026
5 X 5mm
Set Screw
3 x 10mm
Tapping Screw
30201
Center
Diff. Mount
(Front)
30211
Plastic
Bearing
or
30212
Flange Ball
Bearing, option
30213
Brake Cam
30652
Center Plate
30170
Brake Joint, Drive Cup
30170
Brake Joint, Drive Cup
30201
Center
Diff. Mount
30201
Center
Diff. Mount
7 x 19x 5mm
Ball Bearings
7 x 19x 5mm
Ball Bearings
3 x 10mm
Screw
33020
Center Gear
Shaft
33020
Center Gear
Mount
30110
Spur Gear
3
3 x 3mm
Set Screw
30171
Brake Lever
1
2
Leave 0.5mm
Screw
Cement
Scr
ew
C
em
en
t
36660
Brake Pad
36661
Brake Pad
Packing
* Apply instant cement to
glue brake pad and packing.
3x12mm
Screw
(Rear) (Front)
Scr
ew
Cem
ent
36650
Brake Disc
(Steel)
