Page 21: No.6

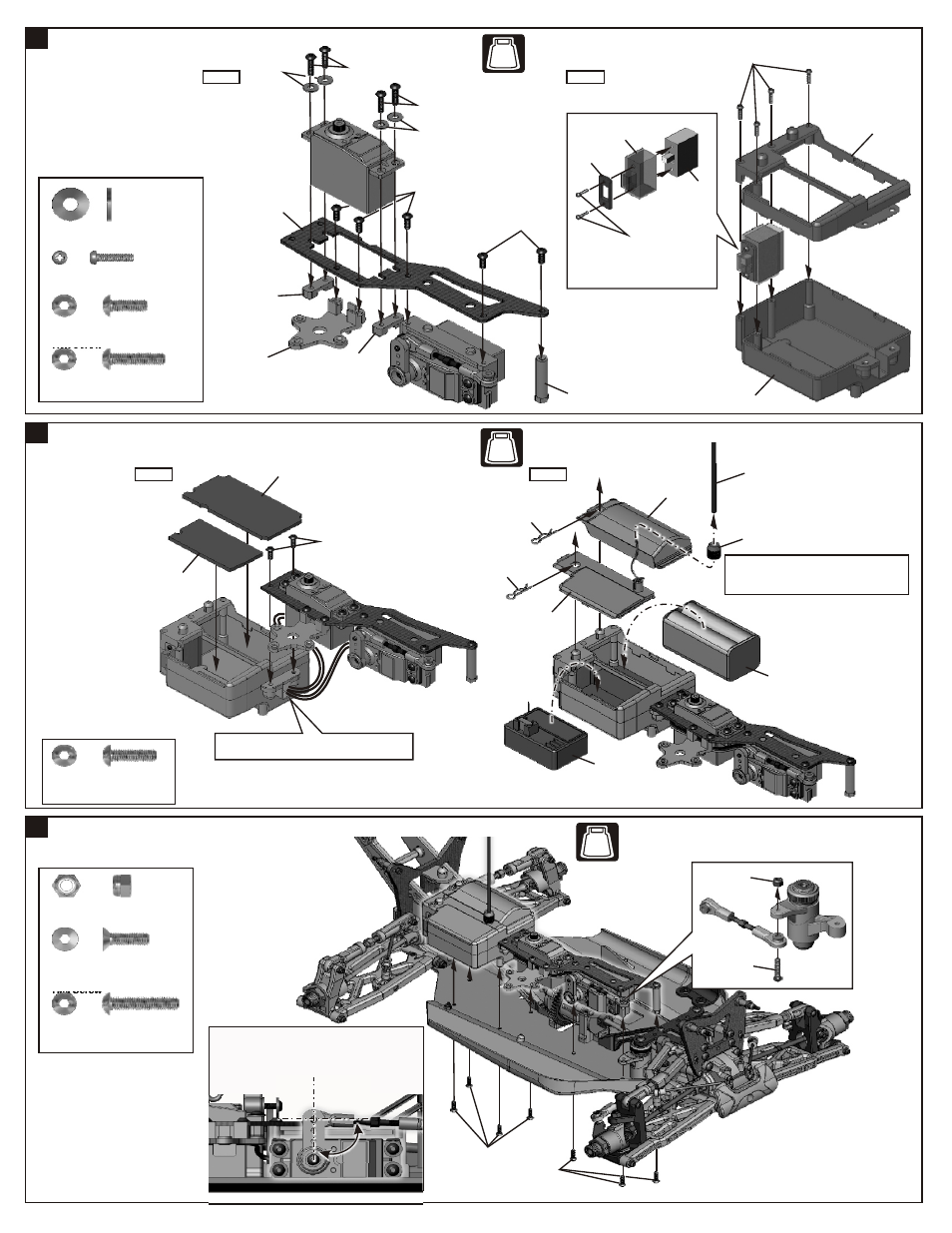

ASSEMBLY OF THE RADIO TRAY ONTO CHASSIS

94019
3x10mm
Flat Head
Hex Screw

.....x7

94005
3x15mm
Hex Screw

.....x1

94041
3mm
Nylon Nut

.....x1

3x10mm

ASSEMBLY OF THE RADIO TRAY AND RECEIVER BOX

94003
3x10mm
Hex Screw

.....x2

Step 1

3x10mm

2x8mm
Screw

.....x4

Step 2

*Put the servo wire into receiver box and
connect to receiver.

30560

40541

Receiver

Battery Case

*Use the original battery case or
rechargeable hump pack battery.

*Connect battery wire to switch.

40855

37410

3x10mm

*Adjust the position of steering servo horn
and 38280 in order to set the angle 90 degree
here when the servo is at neutral.

*90 degree

ASSEMBLY OF THE STEERING ROD AND RADIO TRAY

Step 2

40580

10282

*Connect the switch wire
to receiver.

40541

*Use the screws provided
with your switch

Switch

3x12mm

41106

34026

40541

34026

3x12mm

40541

3x8mm

Step 1

94002
3x8mm
Hex Screw

.....x5

94004
3x12mm
Hex Screw

.....x4

94040
3x8mm
Washer

3x15mm

3mm

NO.6

BAG

2x8mm

40541

NO.6

BAG

NO.6

BAG
