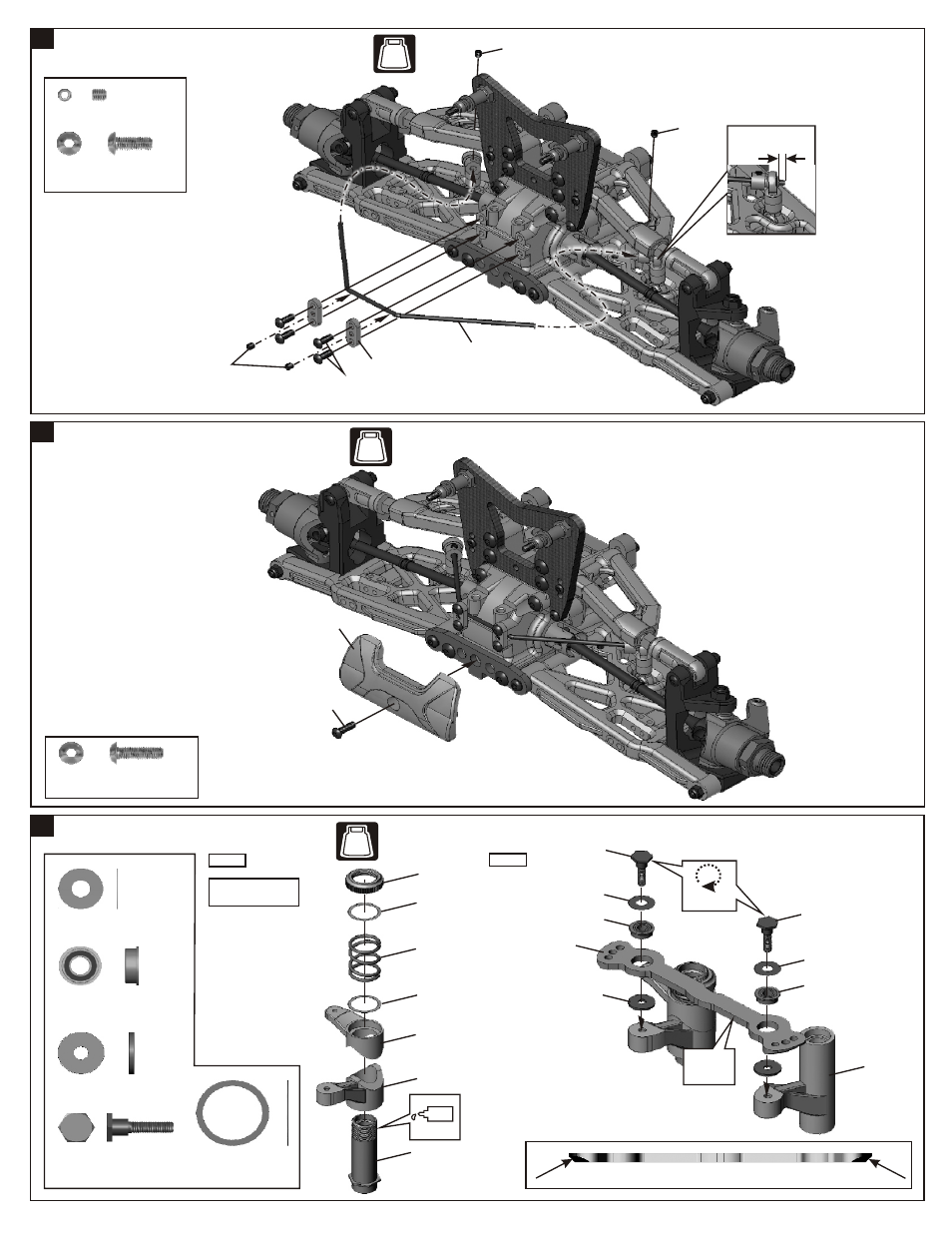

ASSEMBLY OF THE FRONT STABILIZER

ASSEMBLY OF THE SERVO SAVER

Step 1

Step 2

40037
Steering Plate
Hex Screw

.....x2

Do Not
Over Tighten

94033
3x3mm
Set Screw

.....x4

94035
3x8mm
Hex Screw

.....x4

40034

40024

41109

41052

40563

* Notice the direction of the servo saver connecting plate.

49006

40037

40560

41052

.....x2

30776
4x10mm Washer

.....x2

3x10x1.0mm
Washer

30776

3x10mm

Oil

*Put a drop of oil
before assembly.

Ensure
Free
Movement

*Approx. 3mm

40024
13x16x0.2mm
Shim

.....x2

40024

ASSEMBLY OF THE FRONT BUMPER

94003
3x10mm
Hex Screw

.....x1

3x10mm

NO.2

BAG

3x3mm

3x8mm

40533

3x3mm

40529(2mm)

40540

49006
4x8mm
Flange Ball Bearing

.....x2

49006

NO.3

BAG

NO.2
NO.4
