WEATHER GUARD Model 287-3-01 EZ-GLIDE® Drop Down Kit, Mid-Roof, Driver Side User Manual
Page 14

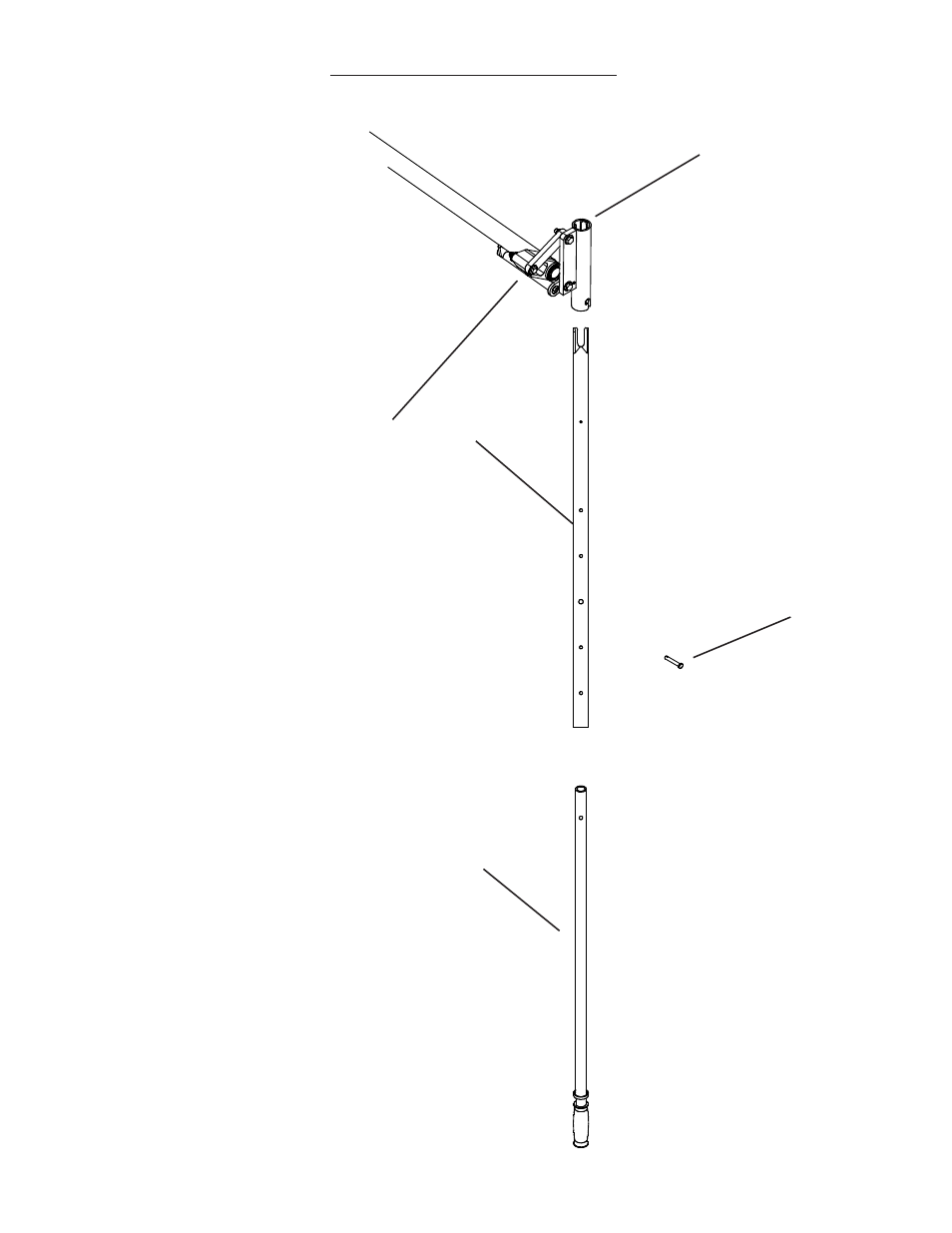

STEP 17
Slide Lower Handle Section (A)
into Upper Handle Section (B) and
locate desired handle length. Align
holes and insert 1-1/2" Clevis Pin
(C).
STEP 18
To operate rack, insert the Upper
Handle Section into the Receiver
(D) and turn clockwise to attach. To
disassemble for storage, push up,
turn counterclockwise, and pull out.
Store Handle inside vehicle when
transporting.
Adjust Front - Rear to allow
handle rotation on back of vehicle.
(A)
(B)
(C)
(D)
HANDLE INSTALLATION PROCEDURE
