WEATHER GUARD Model 285-3-01 EZ-GLIDE® System, Mid-Roof User Manual
Page 9

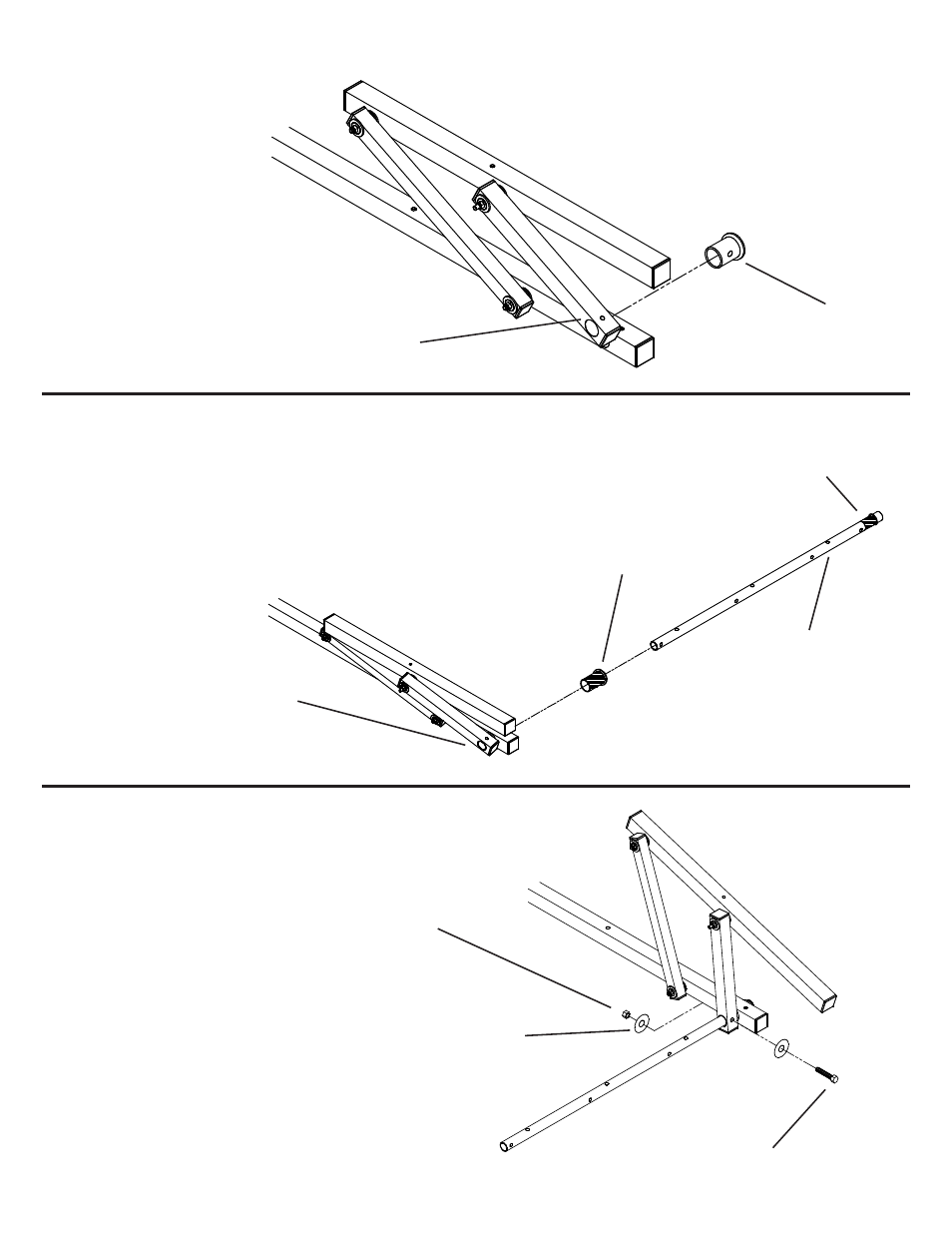

STEP 8
Slide a White Plastic Bushing (A)
into the Pivot Arm (B) as shown.
(A)
(B)
STEP 9
Use the supplied lubricant and coat the pre-assembled
Black Plastic Bushing (A). Insert the Front Drive Tube (B)
into the larger Black Plastic Bushing (C) in the Front Cross-
Member Assembly (D) and through the White Plastic Bush-
ing in the Pivot Arm (Step 4) so that the black bushings are
fully seated.
(A)
(B)
(C)
(D)
STEP 10
Align holes in the Pivot Arm, White Plastic Bushing, and
Front Drive Tube. Install the 3/8-16 x 2-1/4" Fastener.
* 3/8-16 x 2-1/4"
Hex Hd. Bolt
(2) 3/8" Flat
Washer
3/8-16 Nylon
Lock Nut
NOTE: Tighten all marked (*)
fasteners to 200 in. lbs.
