WEATHER GUARD Model 285-3-01 EZ-GLIDE® System, Mid-Roof User Manual
Page 7
Cotter Pin
1" Clevis Pin
NOTE: Turn the Flow Control
counter clockwise to release
pressure. Adjust Flow Con-
trol Screw Per Instruction
Decal On Handle Tube after
final assembly and installa-
tion.
(3) 3/8" Flat
Washer
5/16-18 x 4-1/2"
Hex Hd. Bolt
(A)

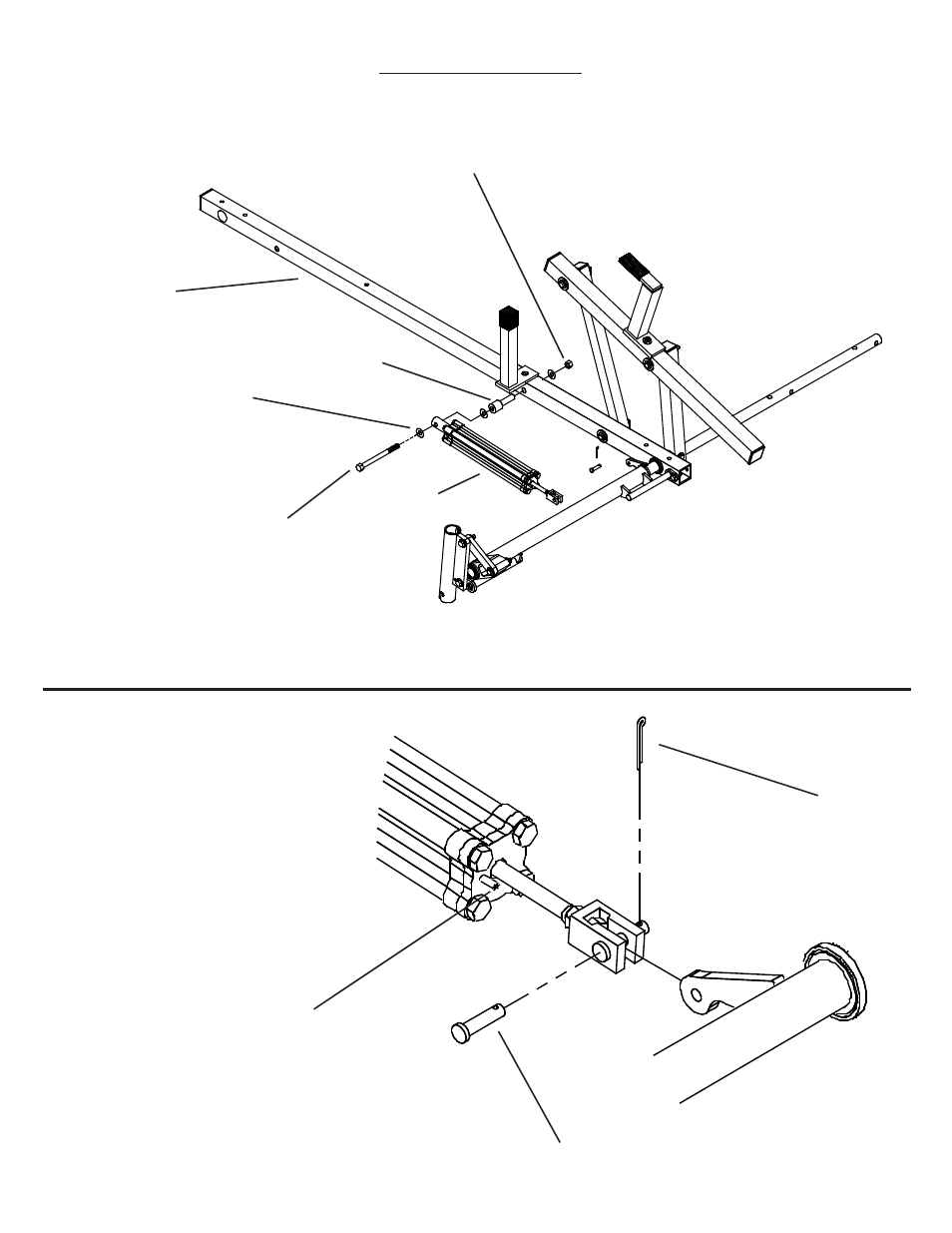

STEP 6
Insert Aluminum Bushing (A) into Rear
Cross-Member Assembly (B). Attach back
of Cylinder (C) to crossmember by install-
ing 5/16-18 x 4-1/2" Fastener.
NOTE: Af-
ter installing Bolt, apply Loctite 290 to
threads, then install the nut.
(C)
STEP 7
Attach front of Cylinder as shown. Bend over
Cotter Pin after inserting it through Clevis Pin.
5/16-18 Nylon
Lock Nut
(B)
CYLINDER INSTALLATION
