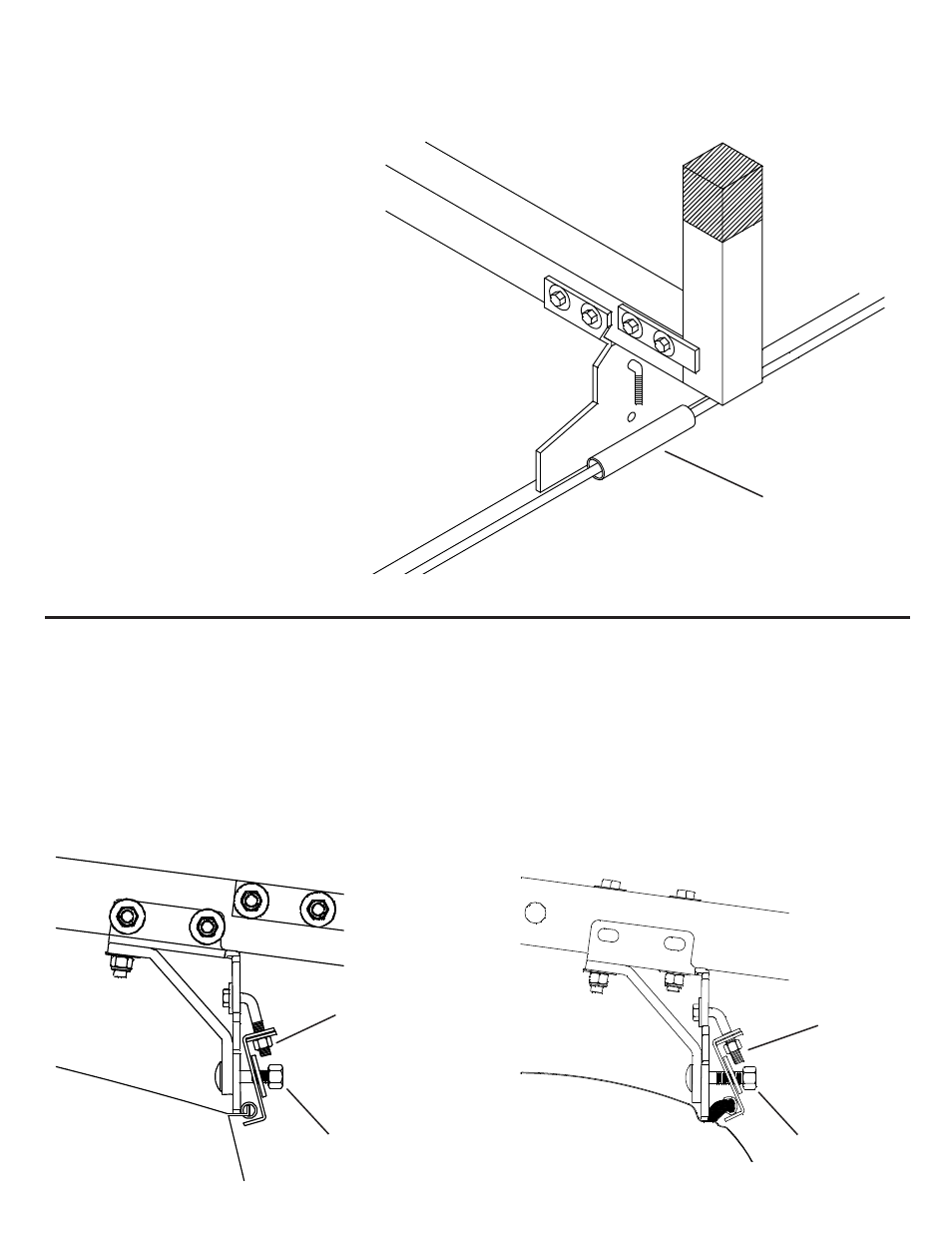

STEP 4 (2 places)

Place assembled Cross-Member on top of

vehicle. Install the Vinyl Tubes (A) on vehicle

gutters (centered on the Mounting Bases).

(A)

STEP 5

First snug the carriage bolts (A) and then

tighten the bent bolts (B). Fully tighten the

carriage bolts last.

(A) 1-1/2" Long

Carriage Bolt

(B)

NOTE: Tighten all

loose fasteners at this

time.

NOTE:

Gutter clamp not

shown for clarity

MODEL 252

GM APPLICATION

If installing a Model 2521 on a Chevy or GMC van, the mounting

base must contact the van roof as shown below. Due to excess

body caulk in some gutters on GM vans, it may be neccessary to

cut a portion of the caulk out and then re-caulk after installation is

complete.

(A) 2" Long

Carriage Bolt

(B)

MODEL 251

FORD APPLICATION

NOTE: At the end of the first week

of use, check all fasteners for proper

tightness and then every three

months thereafter.
