INSTALLATION MANUAL
Cab Command Center
Model Number 9010-3-01
VAN STORAGE SOLUTIONS
FOR THE WAY YOU WORK
TM
ATTENTION: PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS
BEFORE ASSEMBLING, INSTALLING OR USING THIS PRODUCT.
*24-0325*
Part No. 24-0325 REV. B
2

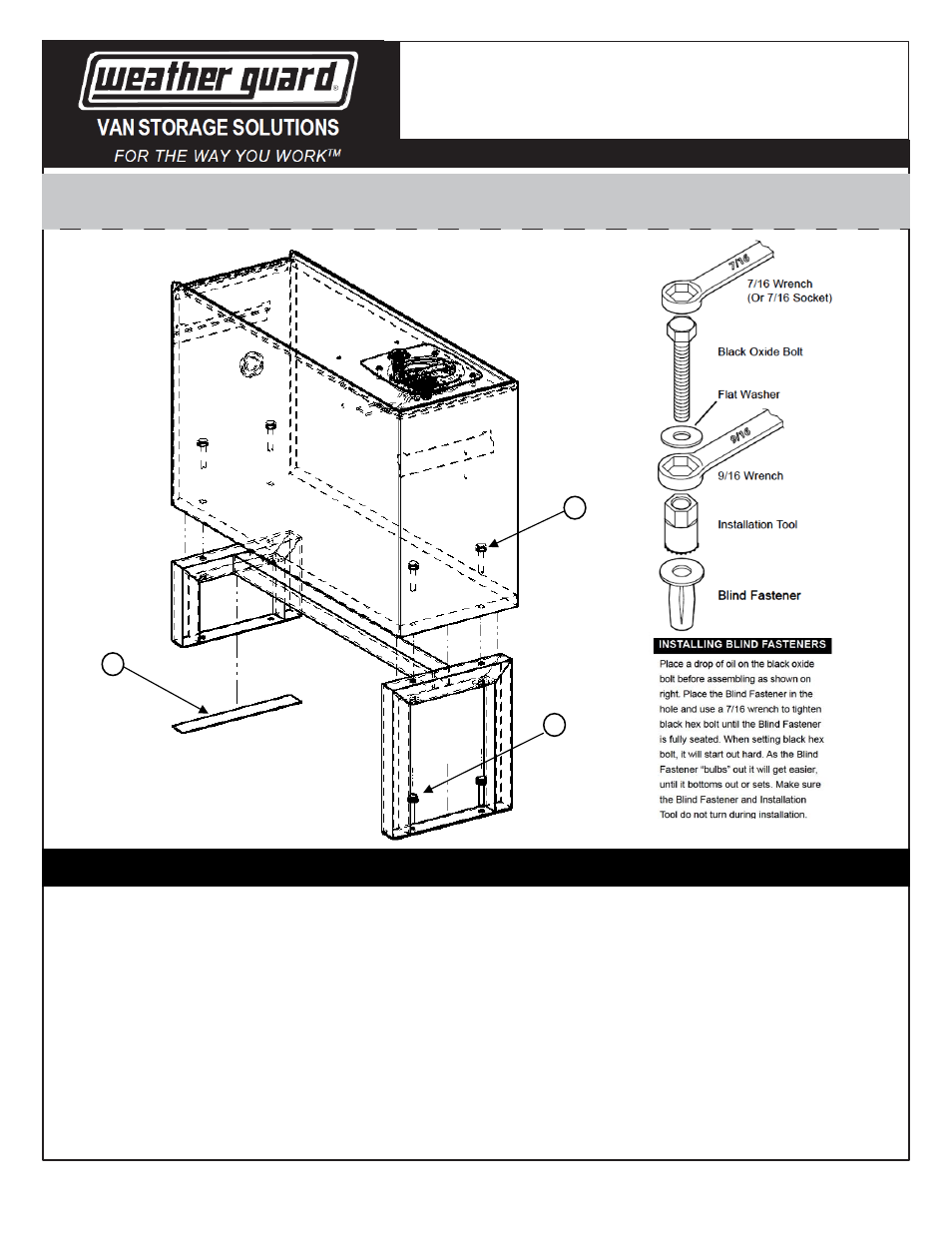

STEP 1. Position mounting base in cab between seats being careful not to place over grounding wire and and mark
the location for the mounting bolts in the rear mounting foot.
STEP 2.
Using 1” hole saw, cut access holes through floor mat. Using a 3/8” diameter drill bit, drill holes for blind
fasteners and install blind fasteners using above instruction.
STEP 3. Remove backing from Velcro strip on front mounting foot. Install mounting base lining up holes with blind
fasteners. Apply pressure to Velcro adhesive to ensure it adheres.
STEP 4. Bolt into place using provided 1/4-20 bolts. Use
3/8” spacers between the blind fastener and mounting
foot to level cabinet.
STEP 5. Place cabinet on mounting base and fasten using (4) 1/4-20 bolts.
STEP 6. Attach adhesive backed rubber bumpers on each corner of lid near handle.
INSTALLATION INSTRUCTIONS
