3
Flat Washer
9/16” Wrench
Installation Tool
Blind Fastener
Black Ox ide Bolt
7/16” Wrench
(Or 7/16” Socket)

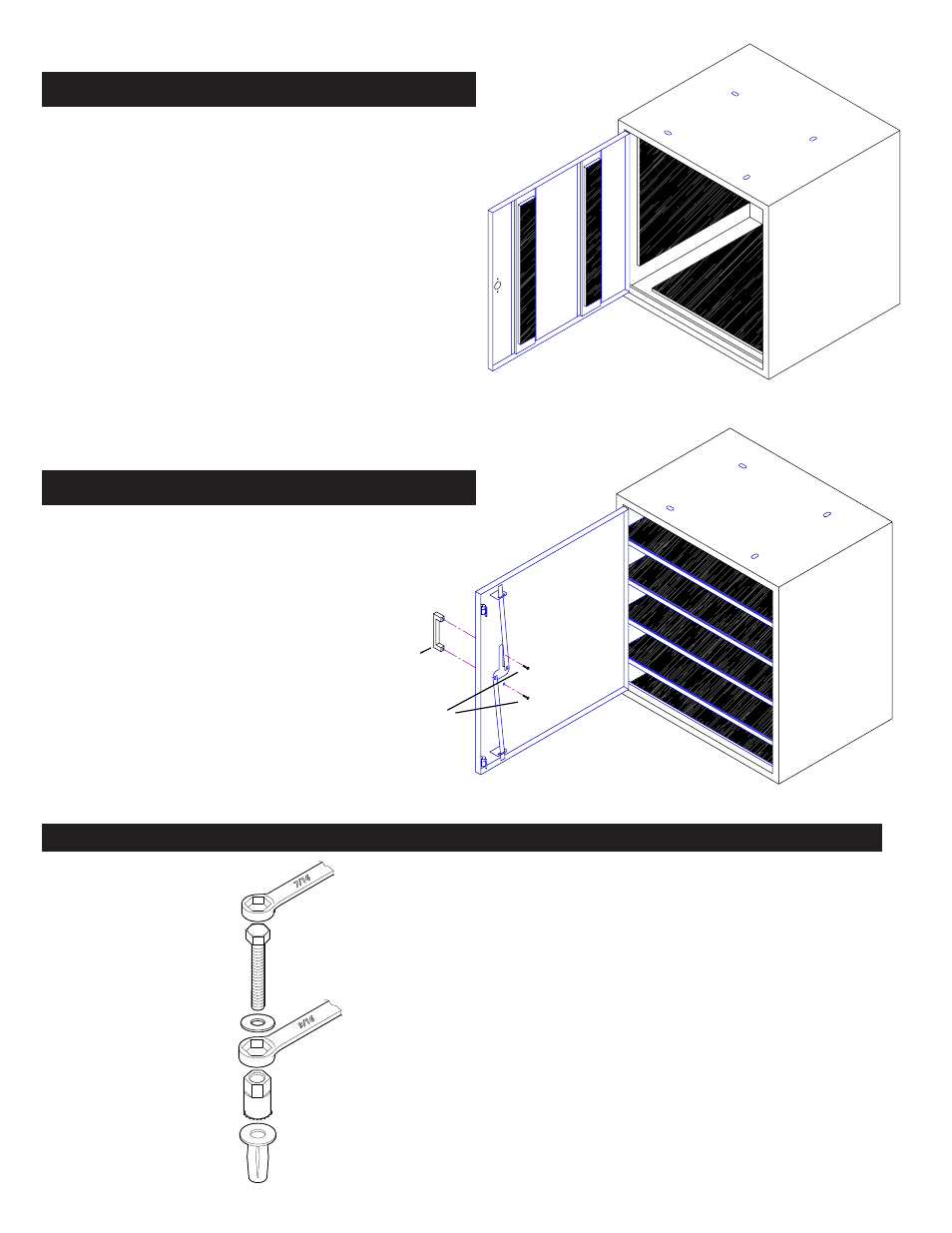

INSTALLATION INSTRUCTIONS USING BLIND FASTENERS
STEP 1. Place a drop of oil on the black oxide bolt before assembling.
STEP 2. Place the Blind Fastener in the hole and use a 7/16" wrench to tighten
black hex bolt until the blind fastener is fully seated.
NOTE: When setting black hex bolt, it will start out hard. As the Blind
Fastener "bulbs" out it will get easier, until it bottoms out or sets.
Make sure the Blind Fastener and Installation Tool do not turn during
installation.
Model 8313-3 CATV Box
STEP 1: Apply two 2" wide adhesive backed rubber pads to the
door channels as shown.
STEP 2: Apply the four rubber pads to the inside sides, back
and bottom.
STEP 3: Test fit pads before removing backing.
STEP 4: After adhering the back pad, using a utility knife, trim
the pad through the hole in the upper center of the back.
STEP 5: Insert the Hole Bushing into the hole from the outside
of the cabinet. The Hole Bushing is a split type, which will
enable you to install a cord with a bigger diameter than the I.D.
of the Hole Bushing.
INSTALLATION INSTRUCTIONS
Model 8316-3 CATV Box
STEP 1: Fasten the Handle to the Door.
STEP 2: After shelves have been installed, place the rubber
pads on the four shelves and the cabinet bottom.
INSTALLATION INSTRUCTIONS
Figure 3. CATV Box - Model 8313
Figure 3. CATV Box - Model 8313-3
Figure 4. CATV Box - Model 8316
Handle
10-24 x 3/8"
Screws
Figure 4. CATV Box - Model 8316-3
