2
NOTE: Doors may be reversed so the door hinges from the right. Remove screws from door hinge and reverse door. Re-use
screws, bolt the door to the opposite side of the cabinet.
STEP 1: Place the Cabinet in position and mark through the holes in the floor of the cabinet.
STEP 2: Remove the cabinet and drill the locations with a 5/16" drill bit. Replace the cabinet.
NOTE: A 1/4-20 Blind Fastener, Installation Tool, 1/4-20 x 2-1/4" Black Oxide Bolt and a 1/4" Lock Washer have been
provided for use in areas where standard fasteners can't be used, such as heat shields and floor supports. If using Blind
Fastener, it will be necessary to re-drill the 5/16" holes with a 13/32" drill bit. See Blind Fastener installation instructions.
STEP 3: Fasten unit using hardware provided (See Figure 1.).
STEP 4: Fasten the Locking Handle to the door (See Figure 2.). See instructions on page 3 for 8316-3 Handle installation. Adhere
two small foam pads to the top and bottom of the door frame (See Figure 1.).
Installation of Model 8310-3, 8311-3, or 8312-3 is now complete. Follow the specific instructions for Model 8313-3 or 8316-3 on page 3.
NOTE: If stacking units, use 1/4-20 x 1/2" bolts (provided) in place of the 1/4-20 x 1-1/4" bolts. Model 8940 Accessory
Mounting Strap Kit is required if stacking units.
INSTALLATION INSTRUCTIONS

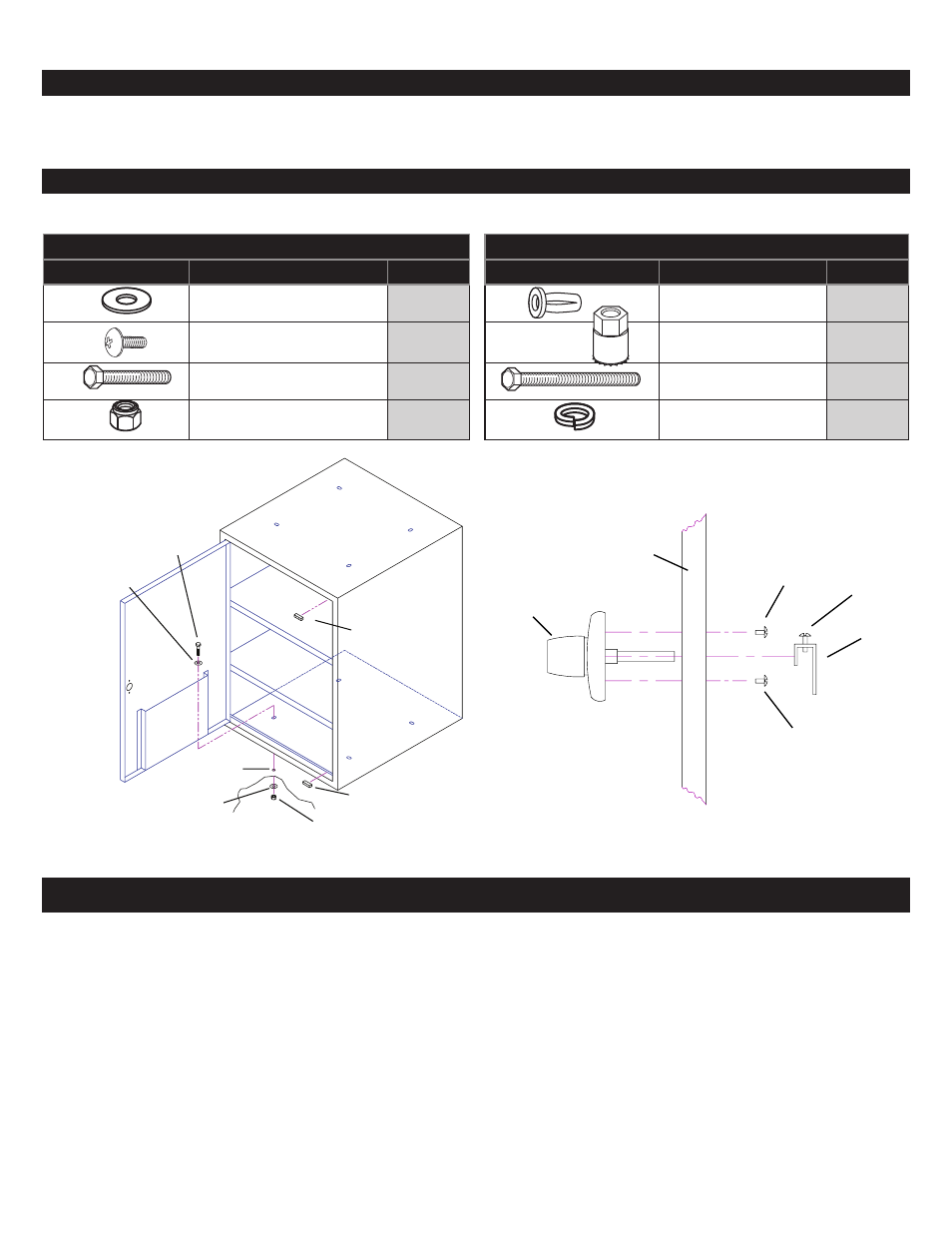

Figure 1. Locking Cabinet - Model 8310, 8311 and 8312
5/16" Hole
1/4" Flat
Washer
1/4-20 Nylon Lock Nut
Pad
Pad
1/4" Flat
Washer
1/4-20 x 1-1/4"
Hex Hd. Bolt
Figure 1. Locking Cabinet- Model 8310-3, 8311-3, 8312-3
Locking
Handle
8-32 x 1/4"
Screw
Door 8-32 x 1/4"
Screw
Cam
Cam
Screw
Figure 2. Handle/Lock fastening (all except Model 8316) Figure 2. Handle/Lock fastening (all except Model 8316-3)
BOLT KITS
DESCRIPTION QTY.
1/4-20 Blind Fastener 1
Installation Tool 1
1/4-20 x 2-1/4" Black
Oxide Bolt
1
1/4" Lock Washer 1
DESCRIPTION QTY.
1/4" Flat Washers 8
1/4-20 x 1/2" Screw, phillips 4
1/4-20 x 1-1/4" Hex Hd. Bolt 4
1/4-20 Nylon Lock Nut 4
Bolt kit #32-0345 and #709 are provided with your Cabinets. Check these bolt kits to be sure the following parts are included:
BOLT KIT #709 BOLT KIT #32-0345
SprntrBolts&Screws
.eps
#10-12x1”
Phillips P
an Head Sheet Metal Scre
w
1/4”-20 x 1/2”
Phillips
Truss Head Zinc Machine Scre
w
TOOLS REQUIRED
• Screwdriver, phillips • Screwdriver, common • 7/16" Open or Box End Wrench (2)
• Electric Drill with 5/16" Drill Bit • 9/16" Open or Box End Wrench • Utility Knife
• Pencil or Marker
