24-0324 4 Part no. 24-0324 REV. A
ATTENTION: PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS
BEFORE ASSEMBLING, INSTALLING OR USING THIS PRODUCT.
ASSEMBLY INSTRUCTIONS
INSTALLATION MANUAL
TRANSIT BULKHEAD — Model Numbers:
96301-3-01, 96302-3-01, 96311-3-01, 96312-3-01, 96321-3-01, 96322-3-01

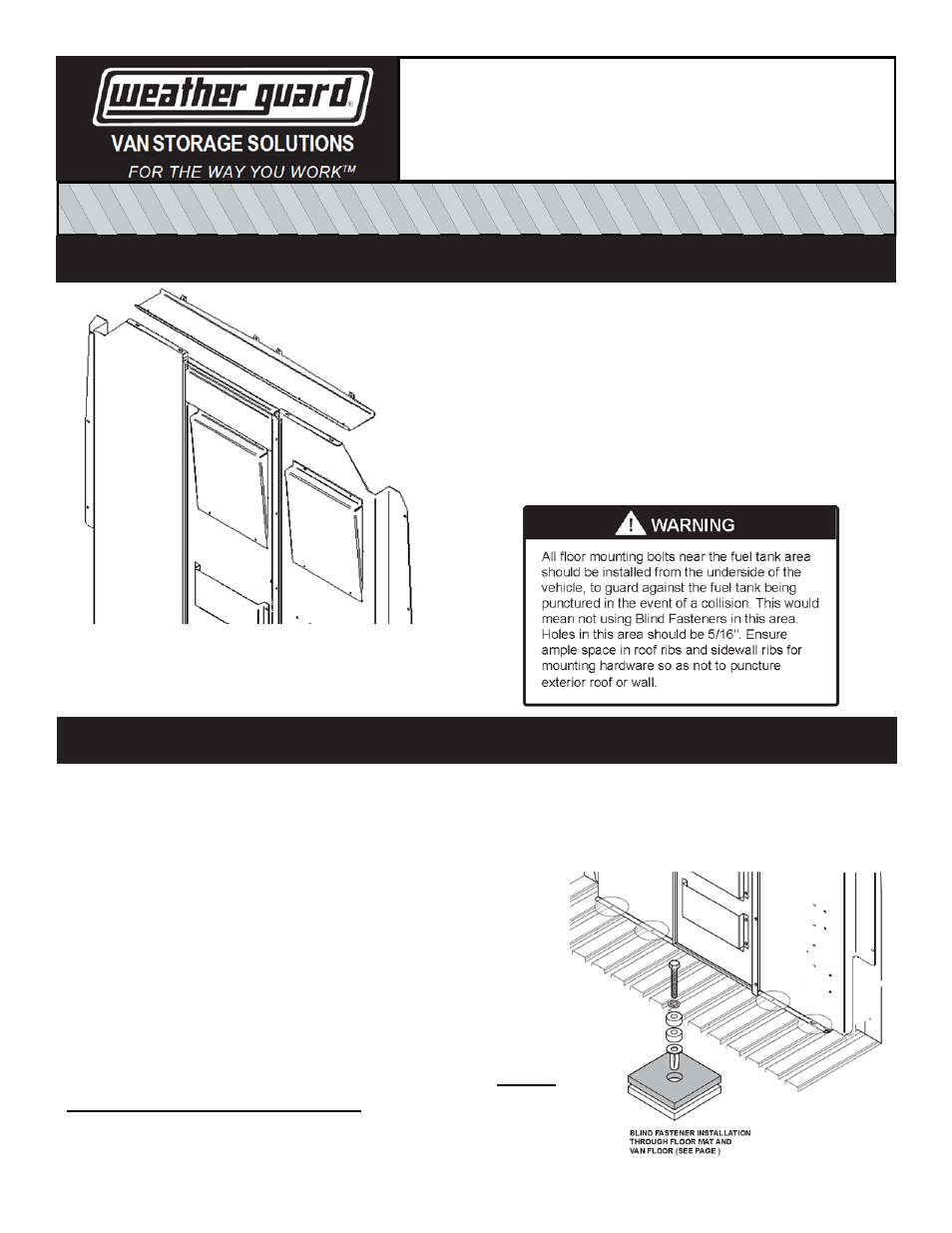

STEP 6. Remove grab handle from the B-Pillar. Place the Bulkhead against the B-Pillar. Using a
center punch, mark the four Bulkhead bottom mounting holes on the floor of the van. Ensure the
hole is located on the topside of the floor rib. Move the Bulkhead out of the way. Drill a pilot hole
with an 1/8" drill bit, then re-drill the hole with a 3/8" drill bit.
Floor Mounting Spacers are required.
NOTE: Four (4) Blind Fasteners are provided for mounting
the bulkhead to the floor.
See INSTALLATION INSTRUCTIONS FOR BLIND FAS-
TENERS on page 6. Do not use blind fasteners over gaso-
line of CNG tanks or fuel lines. (Alternate hardware is in-
cluded to follow any of the bolting solutions below.) Do not
bolt the bulkhead to the floor yet.
STEP 5. Attach the Header Panel (Different panels
for low, mid, and high roof vans.) to the Bulkhead
using four (4) 1/4-20 x 5/8" Hex Head Bolts, eight
(8) 1/4" Flat Washers and four (4) 1/4-20 Nylon Lock
Nuts.
DO NOT FULLY TIGHTEN FASTENERS AT THIS
TIME,
INSTALLATION INSTRUCTIONS
