INSTALLATION INSTRUCTIONS
NOTE: BULKHEAD BASE will angle
approximately
10˚ toward rear of van.
STEP 1: Attach top panel to base panel using 1/4-20
x 3/4" bolts, washer, and lock nut; tighten at this
time. Loosely fasten the angle brace to top panel
using 1/4-20 x 3/4" bolts, washer, and lock nut.
See Figure 1 96511-3-02 or Figure 2 96111-3-02.
STEP 2: Place base with single flange against steel
angle on floor of van. Bottom flange will face opposite
the seats. Center the base side to side on floor. Mark
holes and remove base. Drill this hole with a 3/8" dia.
bit and install a blind fastener. See Blind Fastener
Installation instructions on page 3.
STEP 3: Using 1/4-14 self-tapping bolt, attach angled
bracket to van. Tighten angle bracket at this time.
See Figure 2.

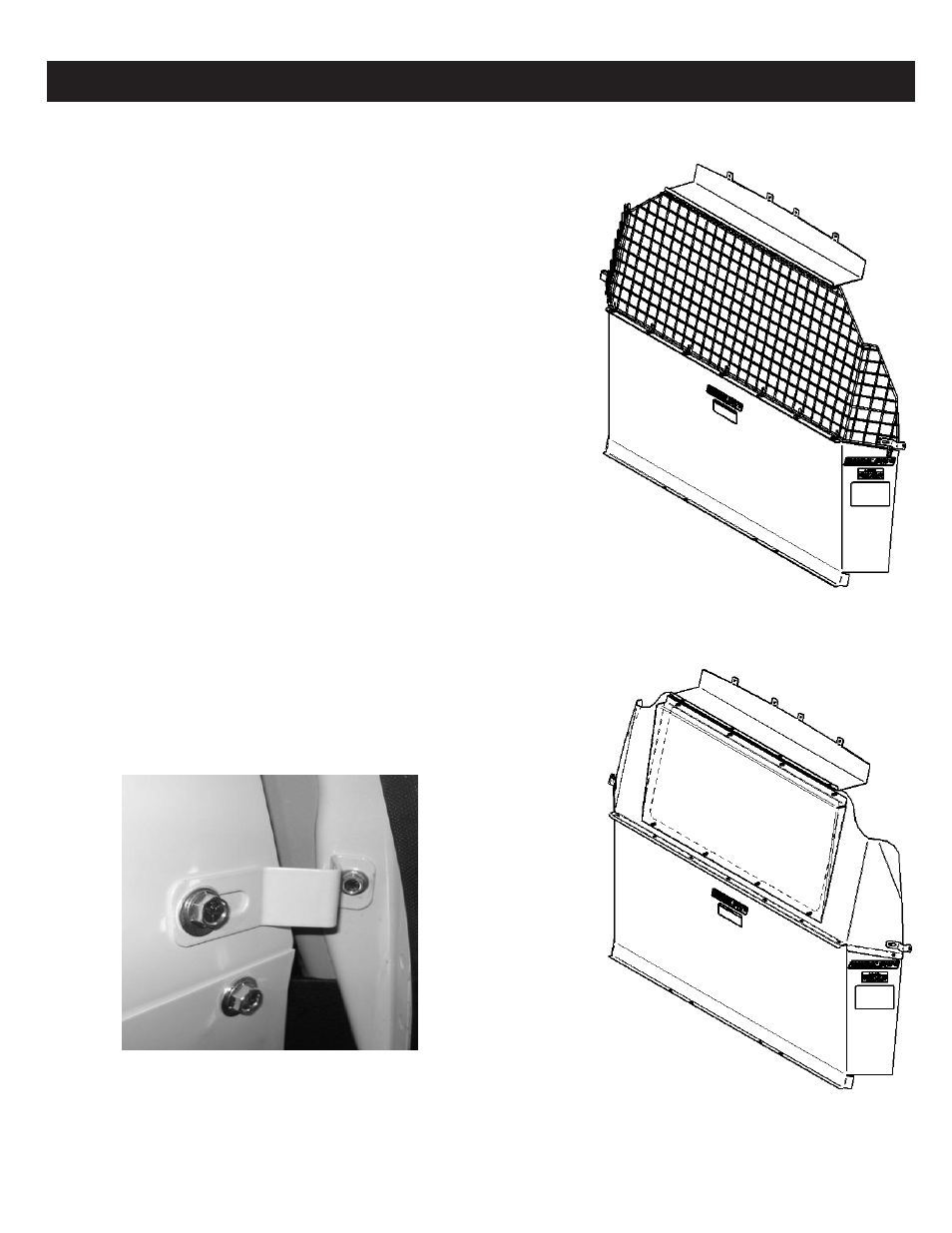

Figure 2
Figure 1A
96111-3-02
Figure 1B
96511-3-02
