9. ATTACH ROOF TO
SIDE PANELS
Drill all dimples on roof
(24). Rivet the roof to the
panel at the two center
locations on each panel
and front using #68
aluminum rivets and
back-up washers.

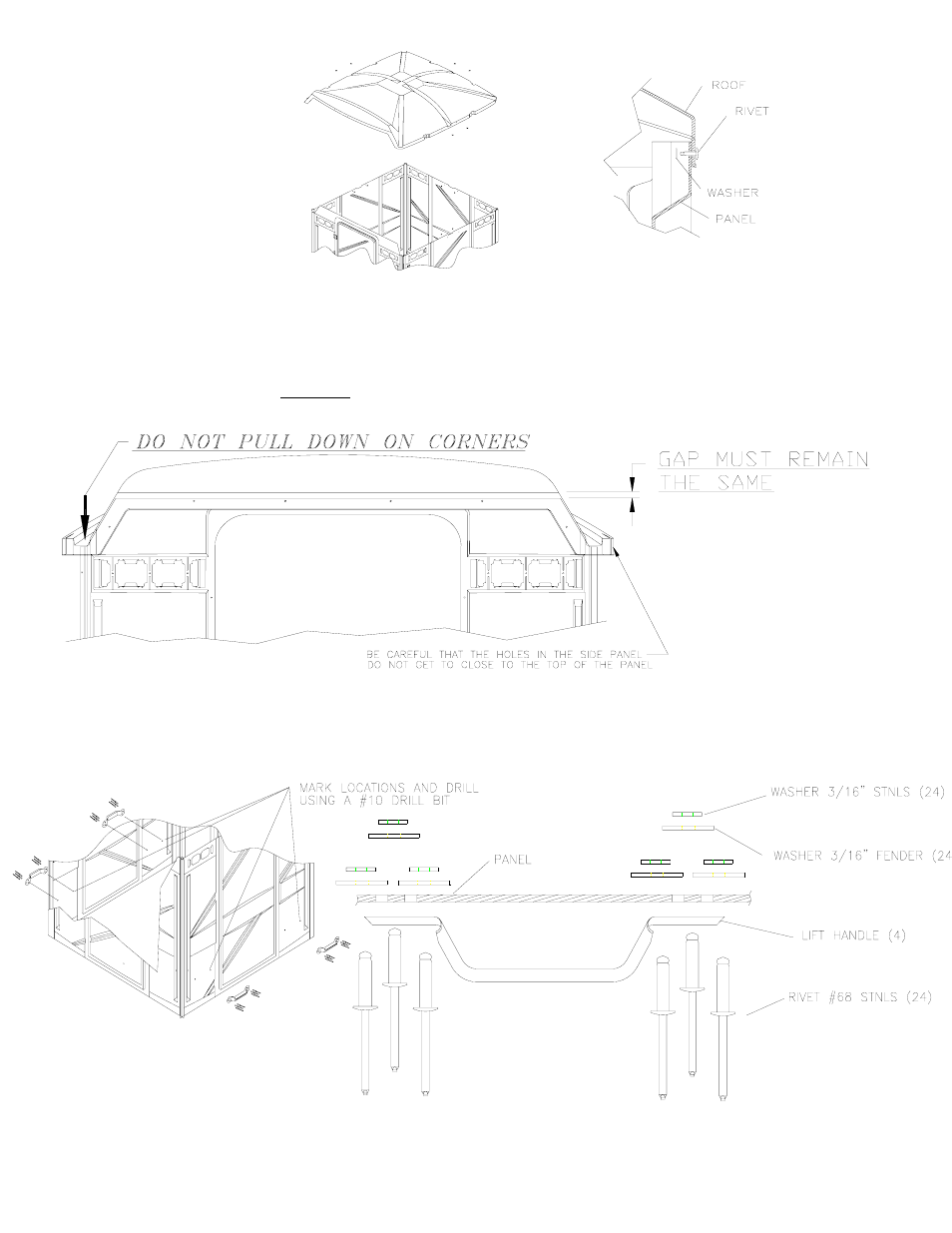

10. TRANSFER DRILL AND INSTALL REMAINING RIVETS TO THE ROOF AND SIDE PANELS AND
FRONT. First transfer drill using a ¼” drill bit both front side panel corners, CAUTION: Make sure the gap
between the roof and panels is the same when transfer drilling the holes. Attach the roof to the side panels using
#68 aluminum large flange rivets and back-up washers. Transfer drill and attach the roof to the panels and front
through the remaining holes. DO NOT pull down on the corners of the roof while drilling.
11. INSTALL LIFT HANDLES.
Position handles as shown on dimples in the two side panels, one using the front group of dimples and one using the
rear group.
