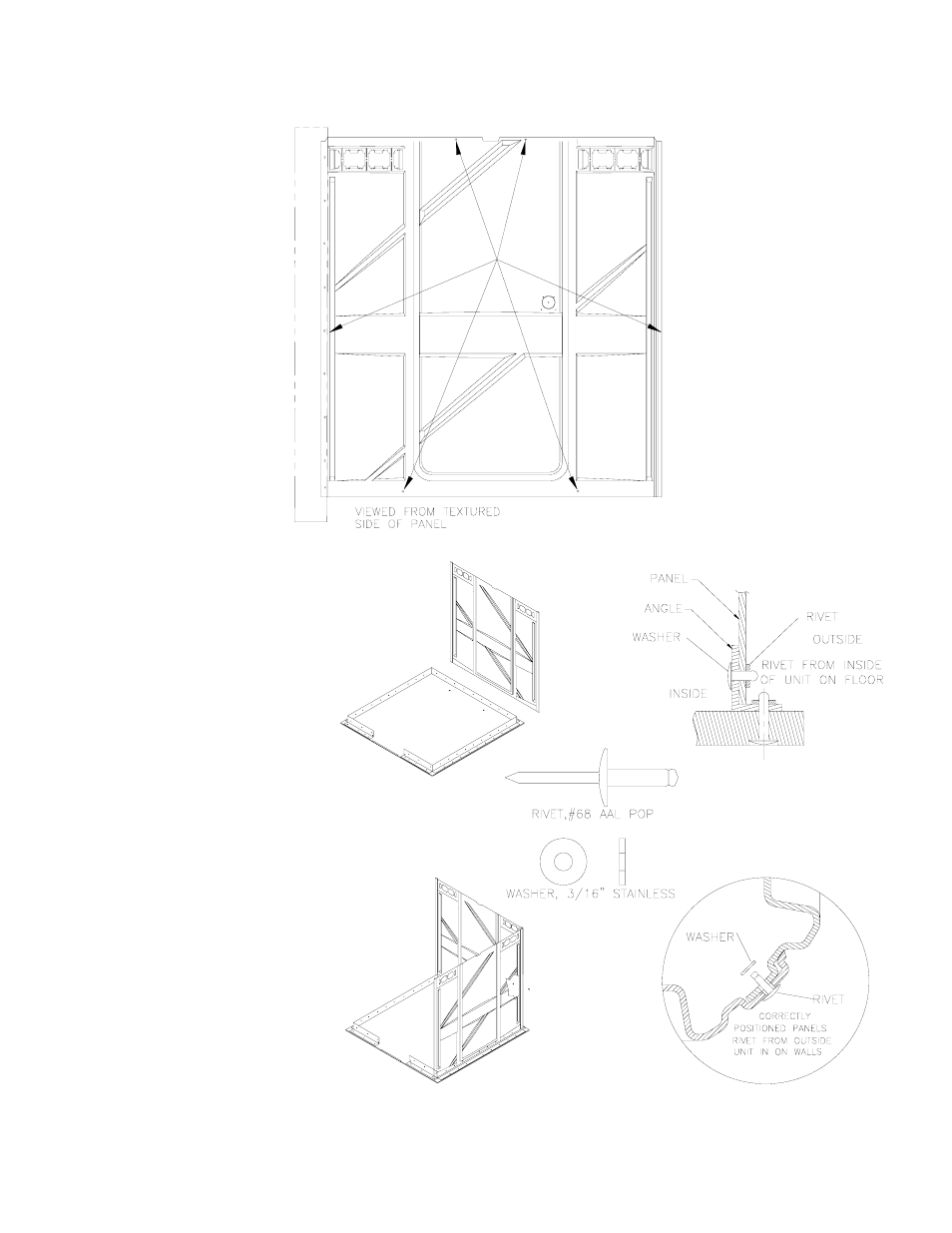

2. DRILL DIMPLES ON EACH OF THE THREE SIDE PANELS.
Using a ¼” bit drill through the appropriate dimples (14 on each panel).
3. ATTACH REAR
PANEL TO FLOOR
ANGLE
Rivet the rear panel
through the bottom two
drilled dimples to the floor
angle using #68 large
flange aluminum rivets
and back-up washers.
4. ATTACH RIGHT AND
LEFT SIDE PANELS
TO FLOOR/ANGLE
Join the side panel to the
rear panel using #68 large
flange aluminum rivets
and back-up washers,
through the 5th hole from
the bottom. Join the
panels to the floor angles
through the two drilled
dimples using #68 large
flange aluminum rivets
and back-up washer.
