Satellite Maxim 2000 - Manual (Page 9)

PN 16186/REV F Page 9

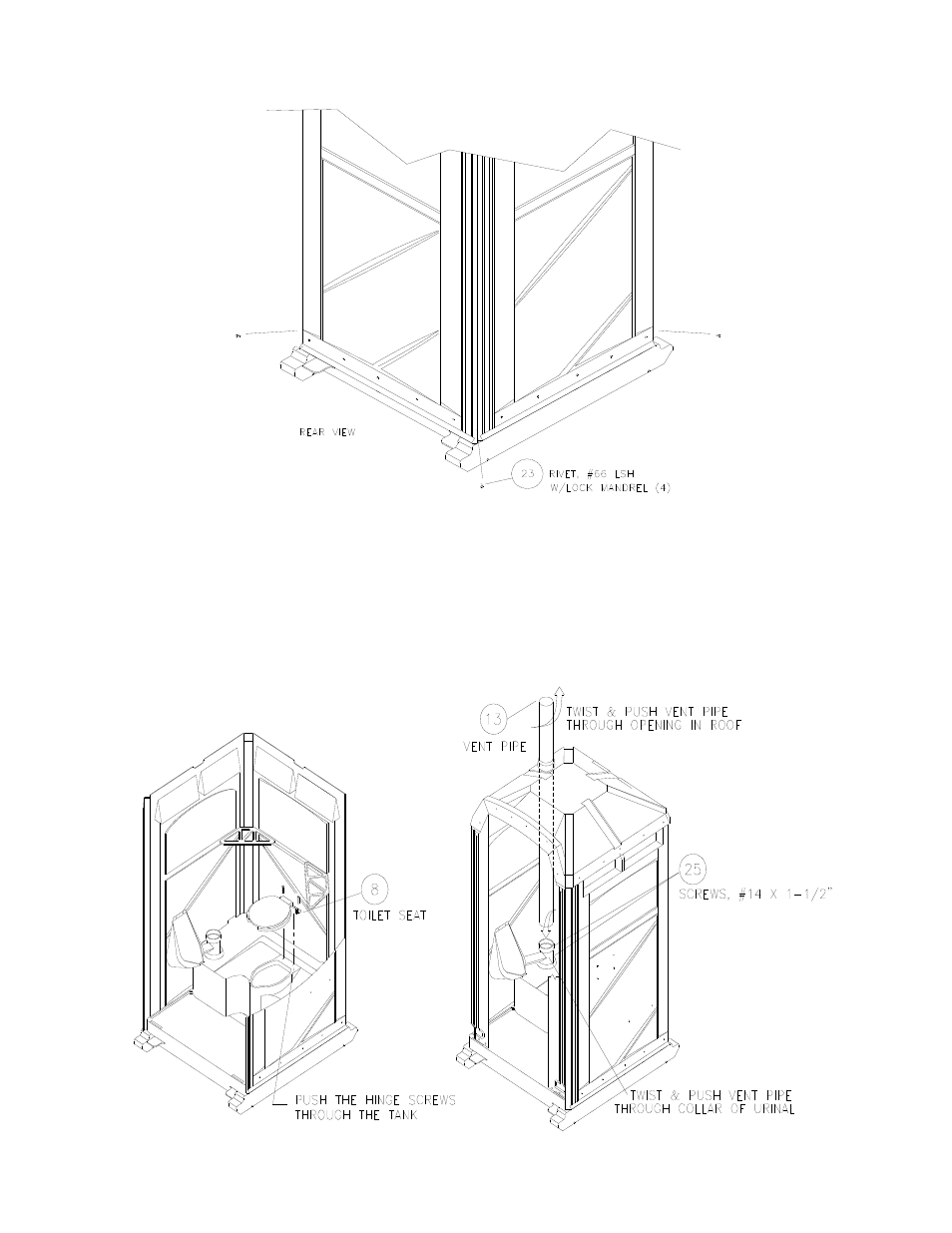

9. Rivet Panel and Front Bottom Holes Together.
*NOTE; IF UNIT IS ASSEMBLED WITH WOOD OR RECYCLED BASE, DRILL A ¼” DIAMETER x ½”
DEEP RELIEF HOLE INTO BASE USING THE LOWER HOLE IN THE PANEL AS A GUIDE.
10. Install Vent Pipe:
PUSH VENT PIPE UP THRU ROOF, TURNING FOR EASIER ASSEMBLY, PULL DOWN INTO
URINAL. FASTEN IN WITH 2 #14 X 1-1/2" LAG SCREWS INTO DIMPLES.
11. Install Toilet Seat:
OPEN CAPS INSTALL PLASTIC STUDS INSTALL THRU TANK HOLES AND REACH THRU
TANK HOLE AND THREAD PLASTIC NUT ON STUD FROM INSIDE THE TANK.
