9. TIGHTEN ALL REMAINING BOLTS AND NUTS TO THE TOP ANGLES AT THIS TIME WITH 7/16”
SOCKET AND WRENCH.

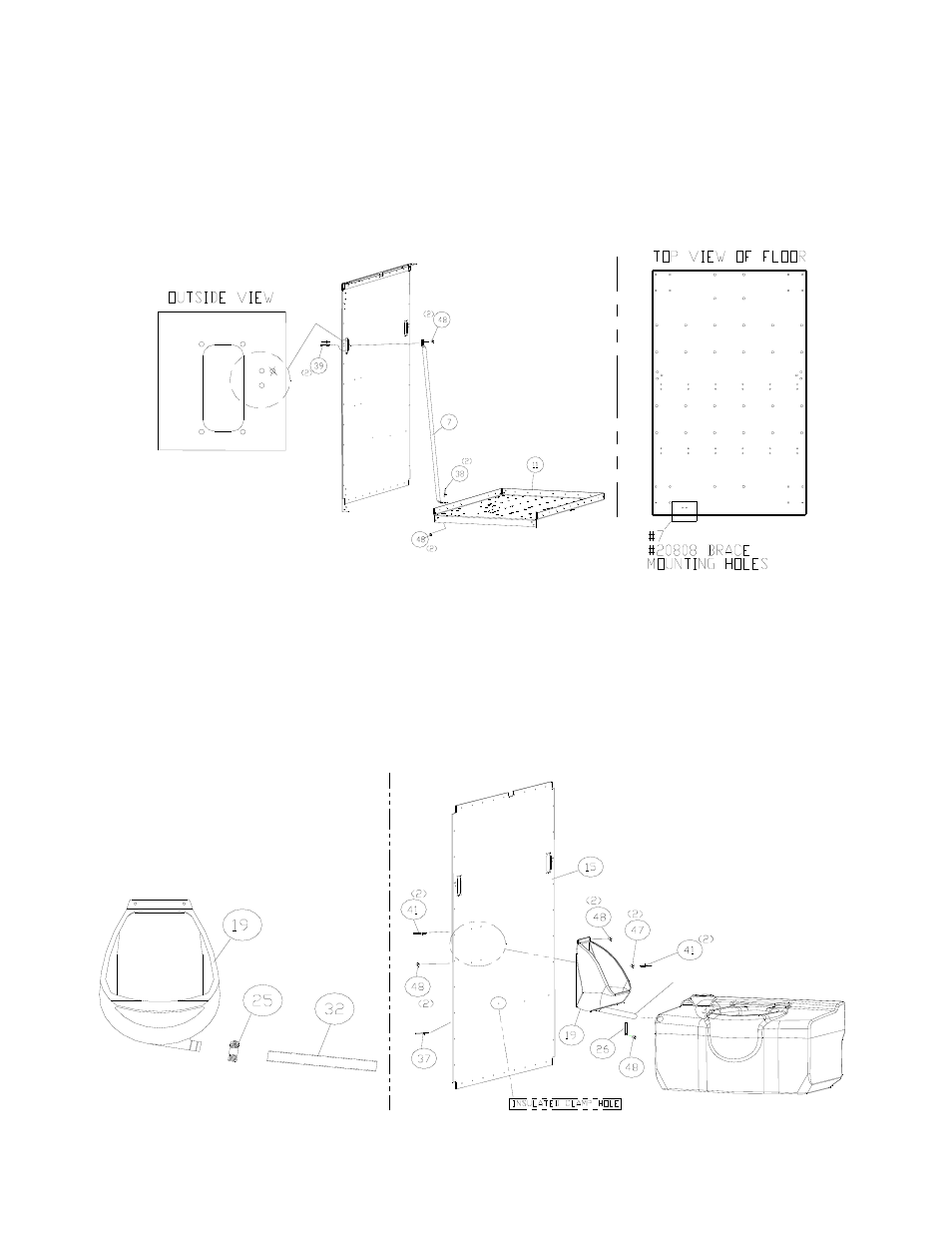

10. INSTALL BRACE DOOR FRAME
RIVET BOTTOM OF #7 BRACE TO TOP OF FLOOR, SEE FLOOR VIEW FOR HOLE LOCATION.
USING #38 RIVETS AND #48 WASHERS. AS SHOWN.
RIVET TOP OF #7 BRACE TO LEFT SIDE PANEL. USING #39 RIVETS AND #48 WASHERS. AS
SHOWN.
11. INSTALL URINAL.
PRESS #32 HOSE ONTO #19 URINAL AND FASTEN WITH #25 CLAMP. PLACE HOSE END INTO
URINAL HOLE IN WASTE TANK. (TOP LEFT CORNER OF TANK)
RIVET URINAL TO LEFT PANEL. USE HOLES IN PANEL AS SHOWN. RIVET THE TOP HOLES FIRST
WITH #41 RIVETS FROM THE OUTSIDE AND #48 WASHERS ON THE INSIDE. FASTEN THE
BOTTOM HOLES WITH #41 RIVETS AND #47 RUBBER WASHER ON THE INSIDE AND #48 WASHER
ON THE OUTSIDE.
PLACE #26 CLAMP INSULATED OVER URINAL HOSE. FASTEN WITH #37 RIVET FROM THE
OUTSIDE AND #48 WASHER ON THE INSIDE. AS SHOWN. RIVET IS BELOW HOSE.
12. FASTEN LATCH STOP SPACER AND HASP TO VERITCAL ANGLE.
