PN 20930 REV A Page 11

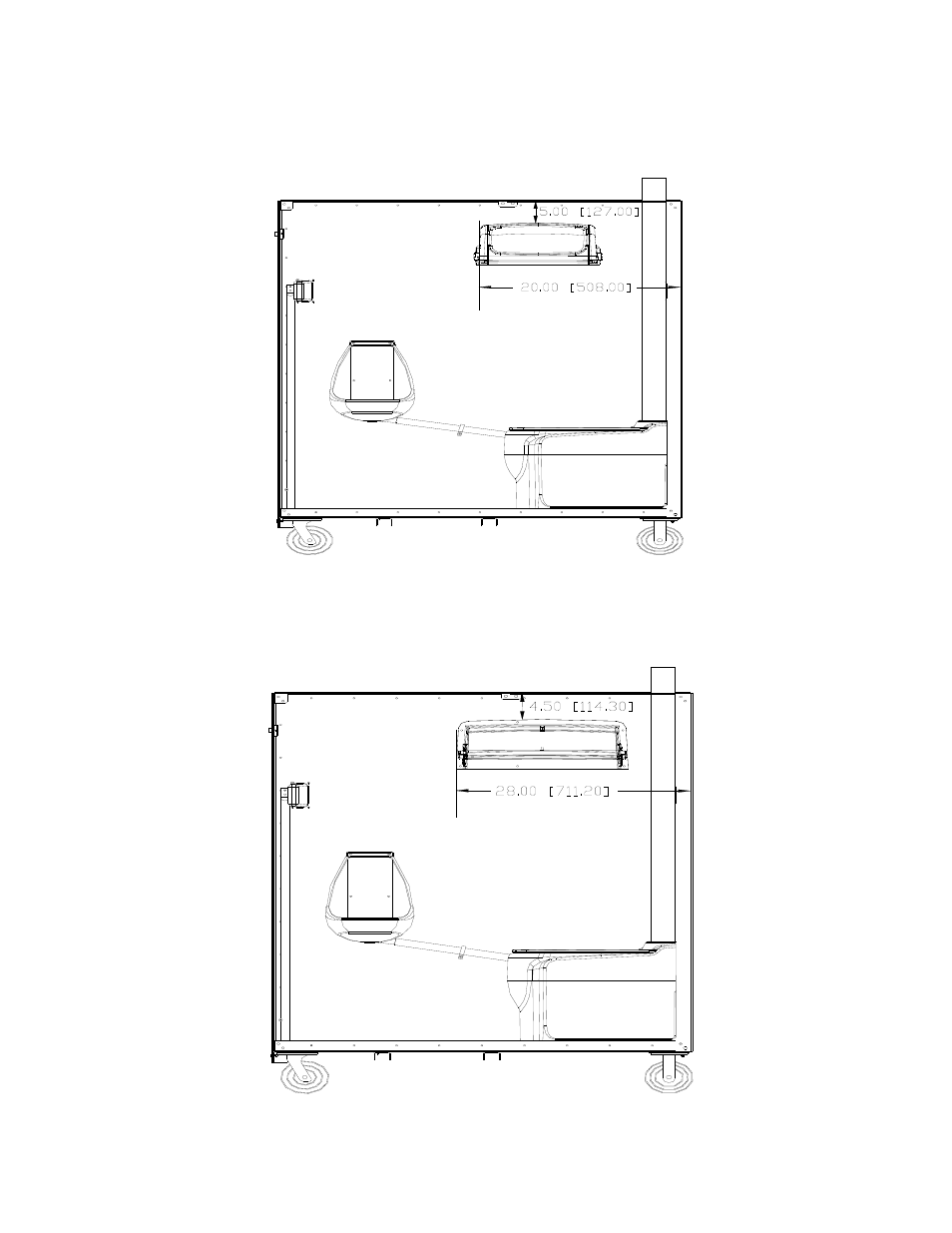

LOCATE PAPERGUARD ON LEFT PANEL AS SHOWN. MARK THE (4) HOLES ON THE INSIDE OF THE
PAPERGUARD WITH MARKER. DRILL OUT THE (4) MARKED SPOTS ON PANEL WITH A 1/4” DRILL
BIT. FASTEN PAPERGUARD HOOD WITH THE #11054 RIVETS FROM THE OUTSIDE AND #11315
WASHERS ON THE INSIDE OF TOILET. SLIDE #16844 SPINDLE IN PAPERGUARD.
3 ROLL PAPERGUARD
LOCATE PAPERGUARD ON LEFT PANEL AS SHOWN. USING THE (2) HOLE ON BOTH ENDS OF THE
PAPERGUARD DRILL THROUGH PAPERGUARD AND PANEL WITH A 1/4” DRILL BIT. FASTEN
PAPERGUARD HOOD WITH THE #11054 RIVETS FROM THE OUTSIDE AND #11315 WASHERS ON
THE INSIDE OF TOILET. SLIDE #18529 SPINDLE IN PAPERGUARD.
