Satellite High Rise User Manual
Page 10
PN 20930 REV A
Page 9

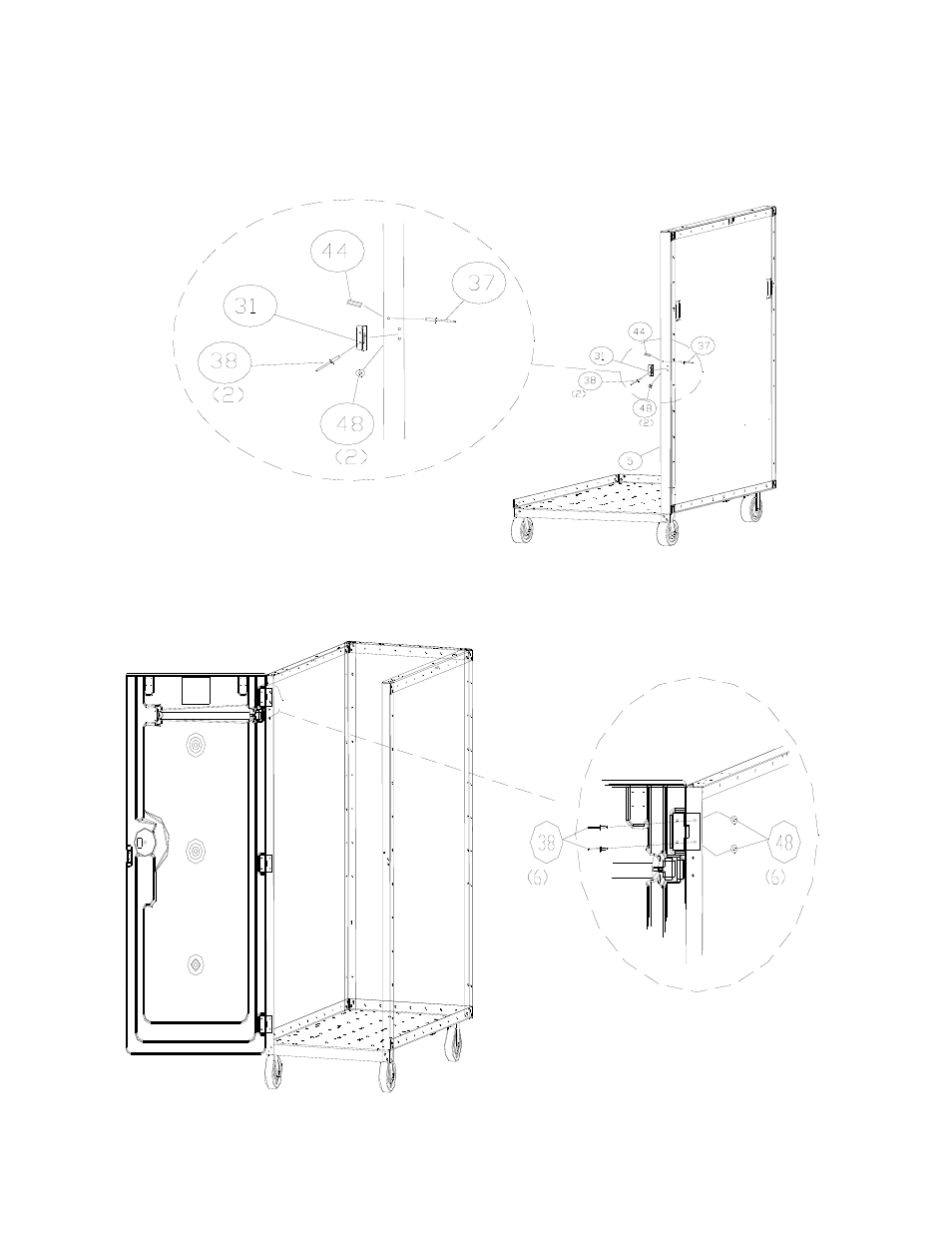

PLACE #44 SPACER ON INSIDE OF #5 VERTICAL HASP ANGLE. FASTEN WITH #37 RIVET
FROM THE OUTSIDE.
RIVET THE #31 HASP TO ANGLE WITH #38 RIVETS (THROUGH HASP THEN ANGLE) AND #48
WASHERS (ON INSIDE OF TOILET) AS SHOWN.
13. FASTEN DOOR ASSY TO ANGLE.
RIVET THE #10 DOOR ASSY TO ANGLE USING #38 RIVET (THROUGH HINGE THEN ANGLE) AND
#48 WASHER (ON INSIDE OF TOILET) AS SHOWN. REPEAT ON REMAINING HINGES.
14. FASTEN SPACER AND CABLE ANCHOR TO ANGLE.
