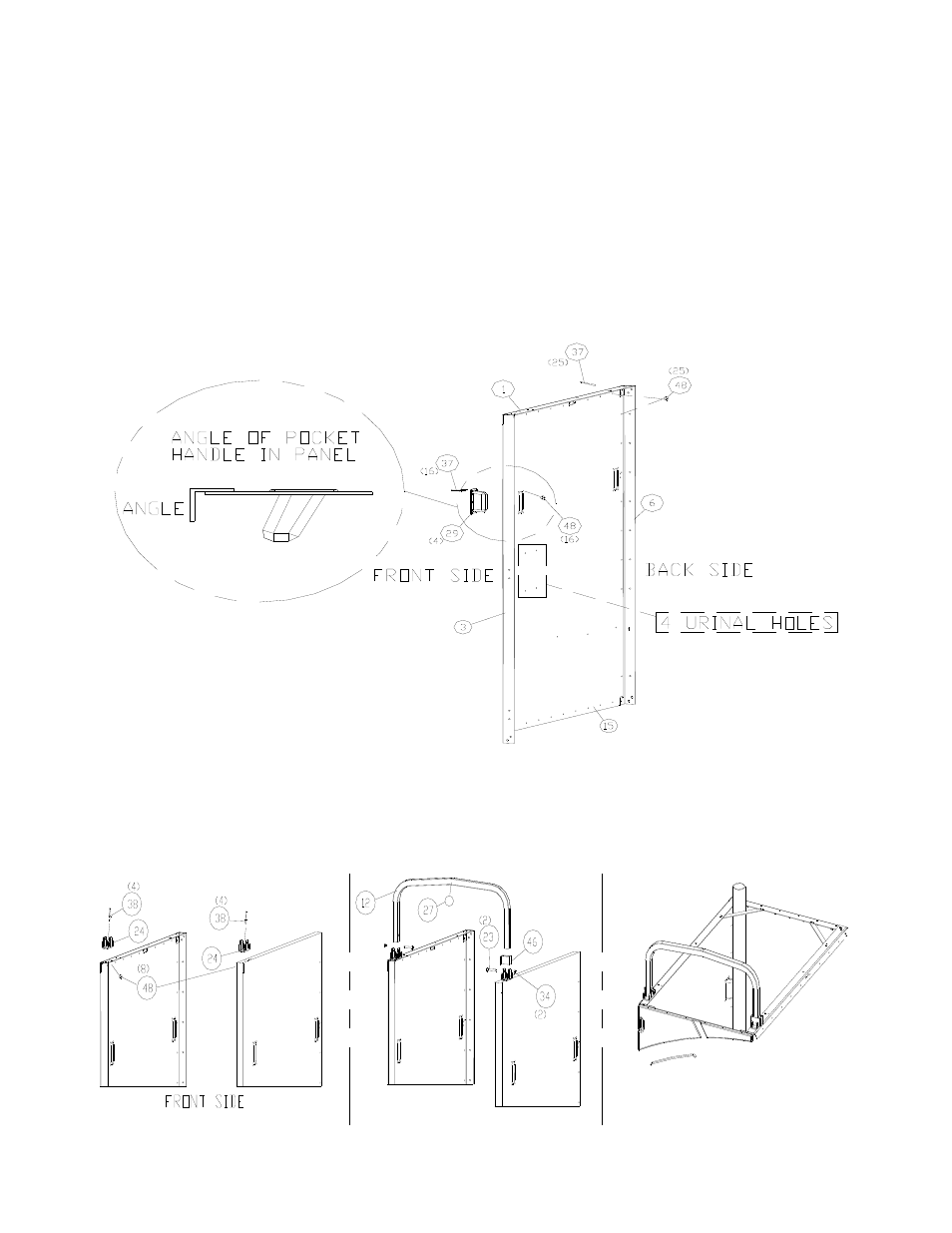

3. ATTACH PANELS TO ANGLES.
FASTEN #15 LEFT PANEL FIRST TO THE LEFT SIDE OF UNIT. PANEL ON THE INSIDE OF ANGLES
SO THE TEXTURE SIDE IS SHOWING ON THE OUTSIDE OF THE TOILET. NOTE: THE 4 HOLES FOR
MOUNTING URINAL (ONLY LEFT PANEL HAS PRE-DRILLED HOLES FOR MOUNTING URINAL) ARE
TOWARDS THE FRONT OF THE UNIT. FASTEN WITH #37 RIVETS AND #48 WASHERS AS SHOWN.
RIVET EACH CORNER FIRST. THEN FINISH RIVETING REMAINING HOLES IN PANEL TO ANGLES
AND FLOOR.
REPEAT THIS STEP ON BACK AND RIGHT SIDE PANELS.
NOTE: BOTTOM OF REAR PANEL DOESN’T HAVE HOLES WHERE TANK FITS IN UNIT.
4. FASTEN POCKET HANDLES TO PANEL HOLES.
USING #37 RIVETS AND #48 WASHERS FASTEN HANDLE TO PANELS AS SHOWN.
REPEAT THIS STEP ON RIGHT PANEL ALSO.
5. FASTEN PROP BRACKET AND FRAME.
ATTACH #24 BRACKET TO ANGLES WITH #38 RIVET AND #48 WASHER AS SHOWN,
SLIDE #46 TUBE OVER #12 FRAME ON RIGHT SIDE. BOLT #12 FRAME TO #24 BRACKETS WITH
#23 BOLT AND #34 NUT AS SHOWN. DO NOT OVER TIGHTEN; ALLOW PROP FRAME TO TILT
BACK BUT HAVE SOME RESISTANCE SO IT WON’T FALL DOWN AND HIT SOMEONE.
