Satellite Liberty - Manual (Page 8)

PN 18041-REV C page 8

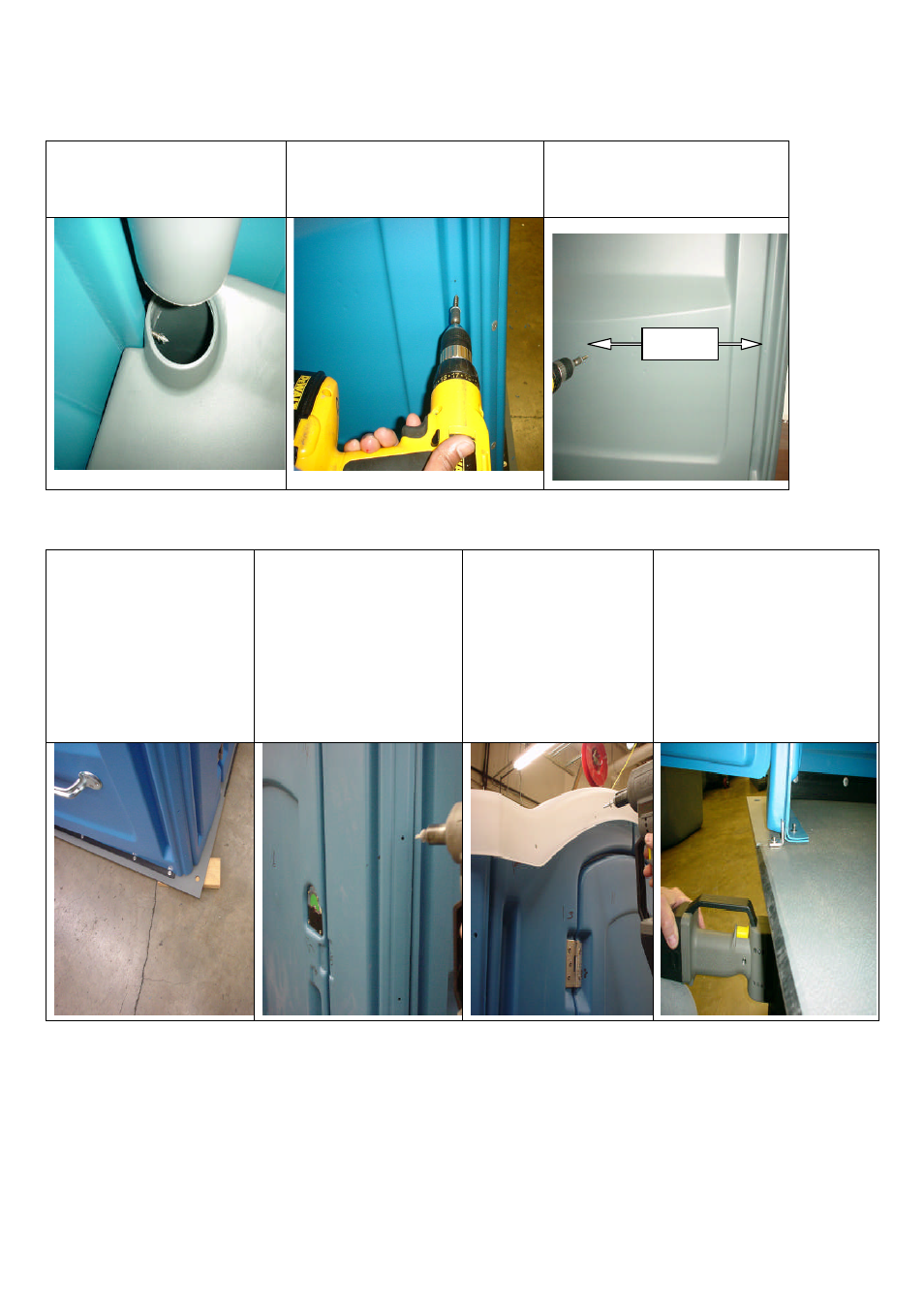

Install Tank and Vent pipe.
Insert vent pipe into tank until
it bottoms out against lag
screw. Drive third lag screw through
rear panel into dimple in groove
to tank and vent pipe at 17-1/2"
[44.45cm] up from the floor. Drive fourth lag screw into rear
panel dimple left of the 3
rd
lag
19-3/4" [50.17cm] and 16-1/2"
[41.91cm] up from the floor.
Install Front assembly.
Using #68 aluminum
large flange rivets PN#
11054 installed from
outside and back-up
washer PN# 11315 on
inside of panel attach the
front PN# 18014 to the
panels Place front under roof
with left side of front on
inside of left side panel.
Tuck right side of front
over corner of right panel. Install expanding
aluminum rivets PN#
14427 through holes in
roof, into front and set
rivets. Place blocks etc. under both
sides of floor at front high
enough to rivet from the
bottom side. Install #610
rivet STNLS PN# 14351
through floor from bottom
up through holes on inside
of front facing, install
backup washers and set
rivets.
19-3/4"
