PN 18041-REV C page 4

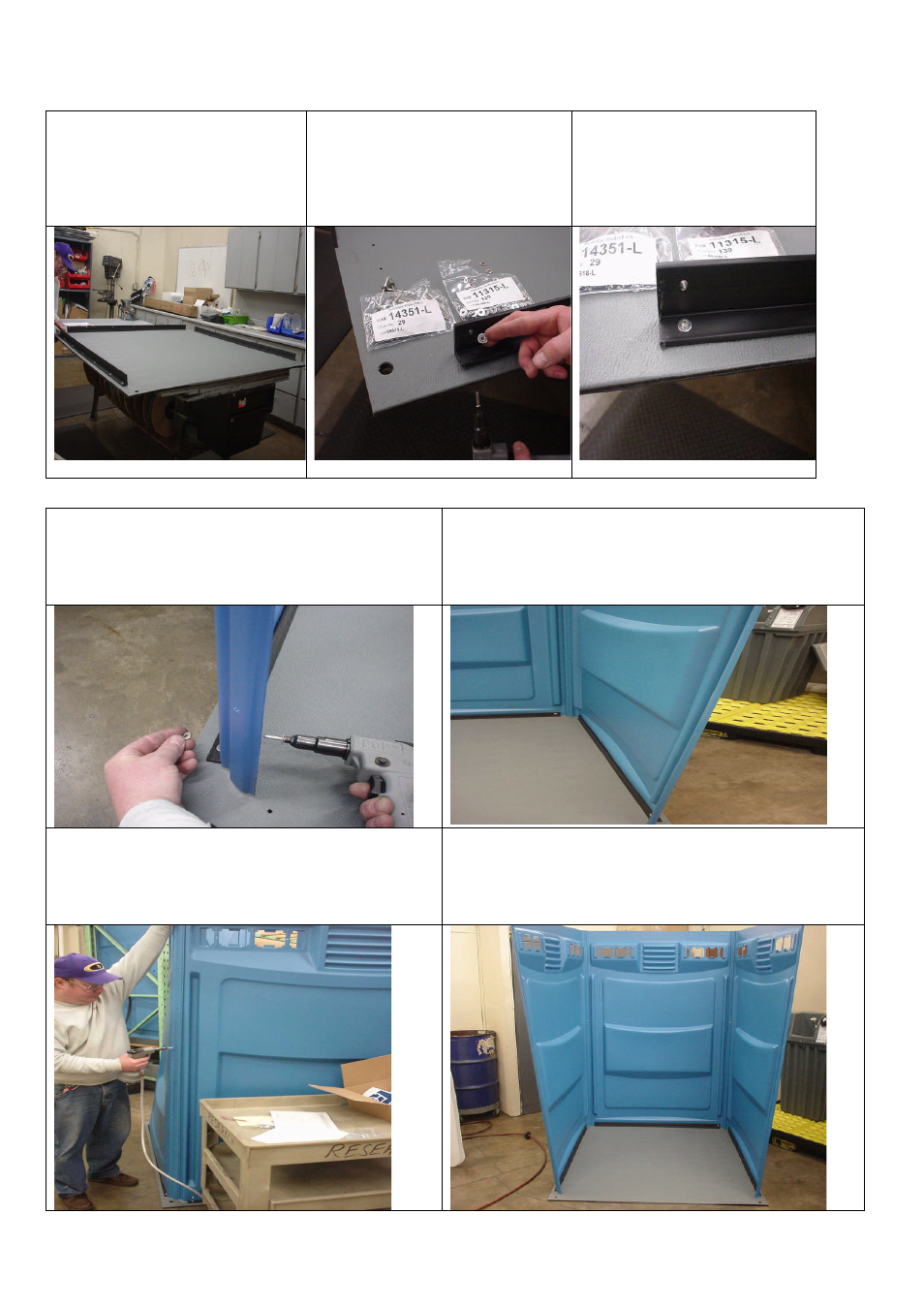

Install Angles on Floor.
Place floor P/N 18037 on a table
or box with textured side up.
Layout angles P/N 18039 with
short flange down on floor. Align
holes drilled in angle with holes
drilled in floor. Rivet angles to floor using #610
CCP rivets P/N 14351. Install rivet
from bottom of floor up through
angle with back-up washer P/N
11315 on top surface of angle. Finish riveting angles to floor.
Install Panels on Floor Angles.
Rivet the left panel to the floor angles by installing
#68 large flange aluminum rivets P/N 11054 from
inside unit through hole in angle and hole in panel.
Place a back-up washer P/N 11315 onto rivet
outside of panel and set rivet. Rivet the rear and right panel (all panels P/N 18034) to
floor angle through two end holes using #68 large
flange aluminum rivets and back-up washers.. Position
panel on outside of angle so holes in bottom of panel
match holes in angle.
Rivet rear panel to left and right side panel using
#68 large flange aluminum rivet install from outside
of panel, through the 5th hole up from the bottom of
both panels & back-up washer on the inside of
panels. Finish installing remaining rivets & back-up washers in
angles/panels. *Tip: a standard flat blade screwdriver
may be needed to pry bottom of panel up over
exposed rivet/back-up washer attaching angle to floor.
