Satellite Global (HD Extrusion) - Manual (Page 7)

PN 40116 REV C 6-30-11 7

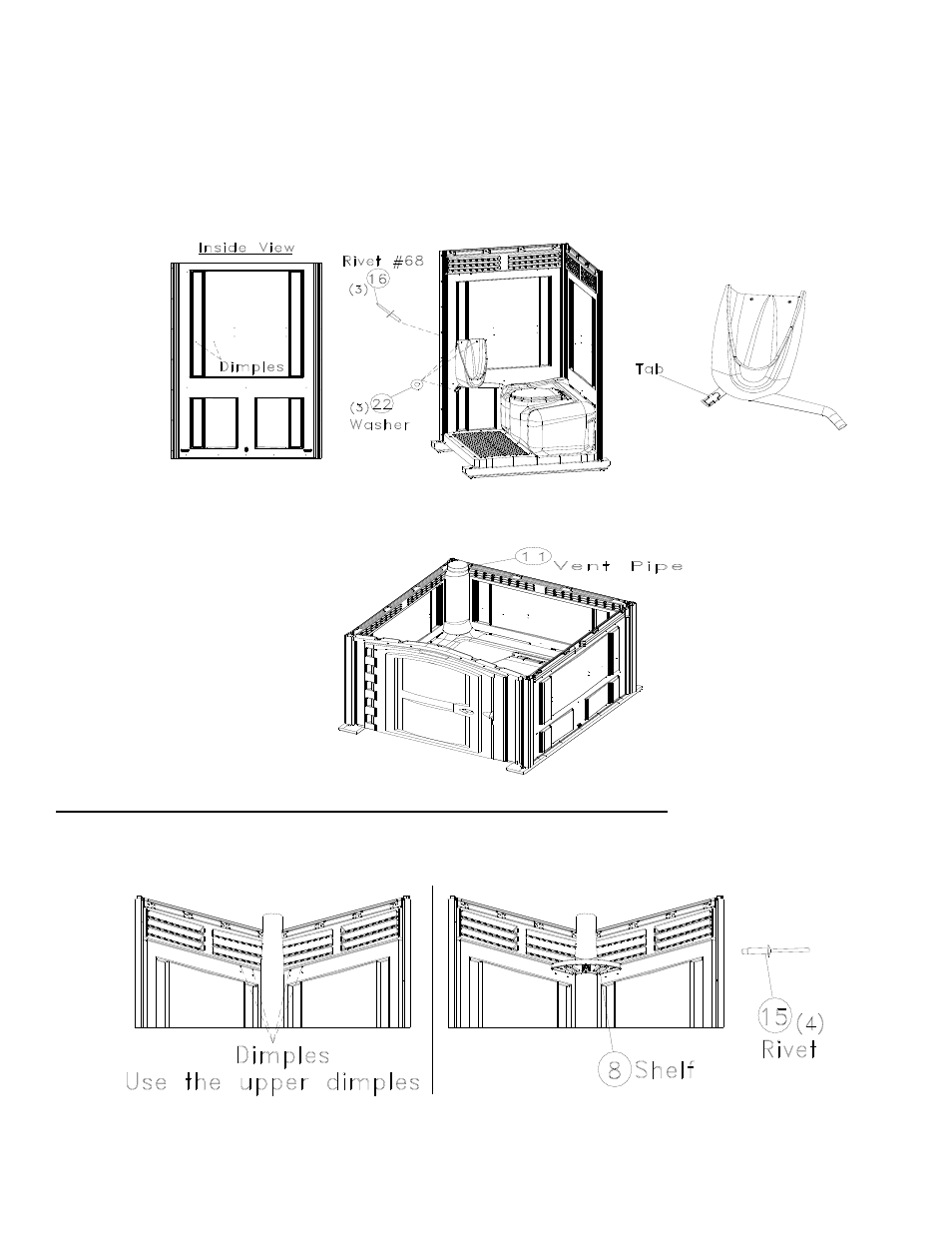

Step 7: Assemble Urinal to unit:
1. Using 13/64” Drill Bit, Drill (2) holes in side panel at dimples.
2. Insert Urinal Spout in tank urinal hole.
3. Fasten with (2) rivets and (2) washers. Washers are installed on inside of Urinal.
4. Bend Fastening tab back to meet panel. Transfer drill through tab and panel. Fasten urinal tab with (1)
rivet and (1) washers. Washer is installed on inside of Urinal.
Step 8: Assemble Vent Tube to unit.
1. Insert Vent Tube into Toilet Tank.
NOTICE: TEMPORARY CHANGE, SEE ADDENDUM.
Step 9:
Assemble Shelf to unit
1. Using 13/64” Drill Bit, Drill (2) holes in each side panel at dimples location. Fasten Shelf to unit
using (4) Rivets from the outside, through panel and into holes in shelf.
Step 10: Assemble coat hook to doorframe.
