1. Drill / Driver 2. 3/16” Drill Bit 3. Rivet Gun
4. Phillips Screw Driver 5. 7/16” Deep Well Socket 6. Ratchet

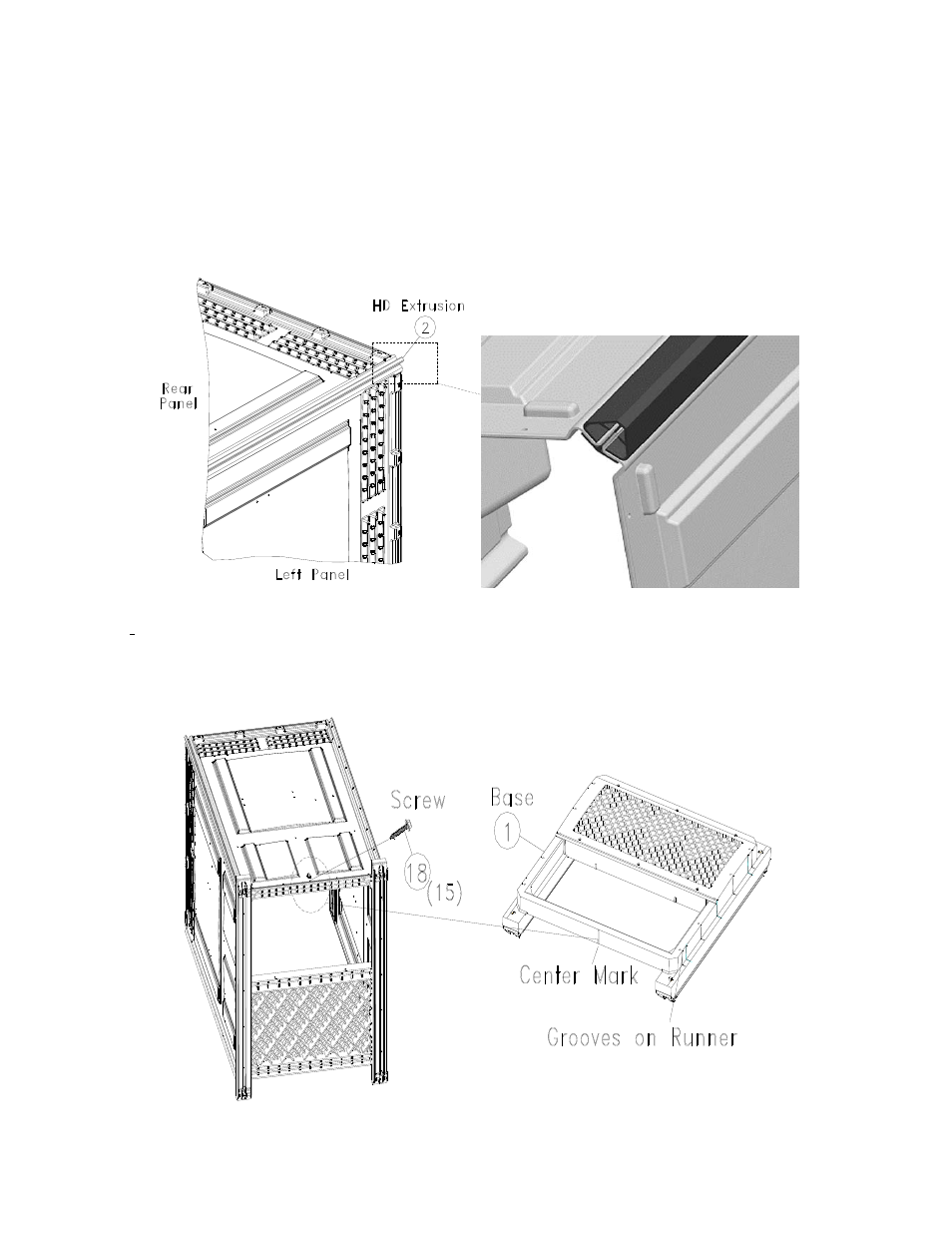

Step 1: Assemble (3) side panels together using HD extrusion:
*Tip: It may help to place panel on table or a stack of tanks before assembly.
1. Slide the HD Extrusion between the (2) panels. Note: Side panels will be riveted together later in the
assembly process.
2. Repeat on other side.
Step 2: Assemble Base to side panels:
1. Butt bottom of the rear panel up against the runners. Align rear panel center hole with center mark on
base and fasten with Screw, #14 x 1-1/2. Finish remaining (4) holes.
2. Align side panel’s holes with grooves on runner and fasten with Screws #14 x 1-1/2.
Step 3: Fasten Extrusion to Side Panels:
