6
Straight
STOP
Outdoor gas appliance is not intended to be installed in
or on a boat.
Outdoor gas appliance is not intended to be installed in
or on an RV.
Never attempt to attach this grill to the self-contained LP
gas system of a camper trailer or motor home.
Do not use grill until leak-tested.
If a leak is detected at any time,
and call the fire
department.
If you cannot stop a gas leak
close LP
cylinder valve and call LP gas supplier or your fire
department!
IMMEDIATELY
WARNING
DANGER
Do not insert any tool or foreign object into the valve outlet
or safety relief valve. You may damage the valve and
cause a leak. Leaking propane may result in explosion,
fire, severe personal injury, or death.

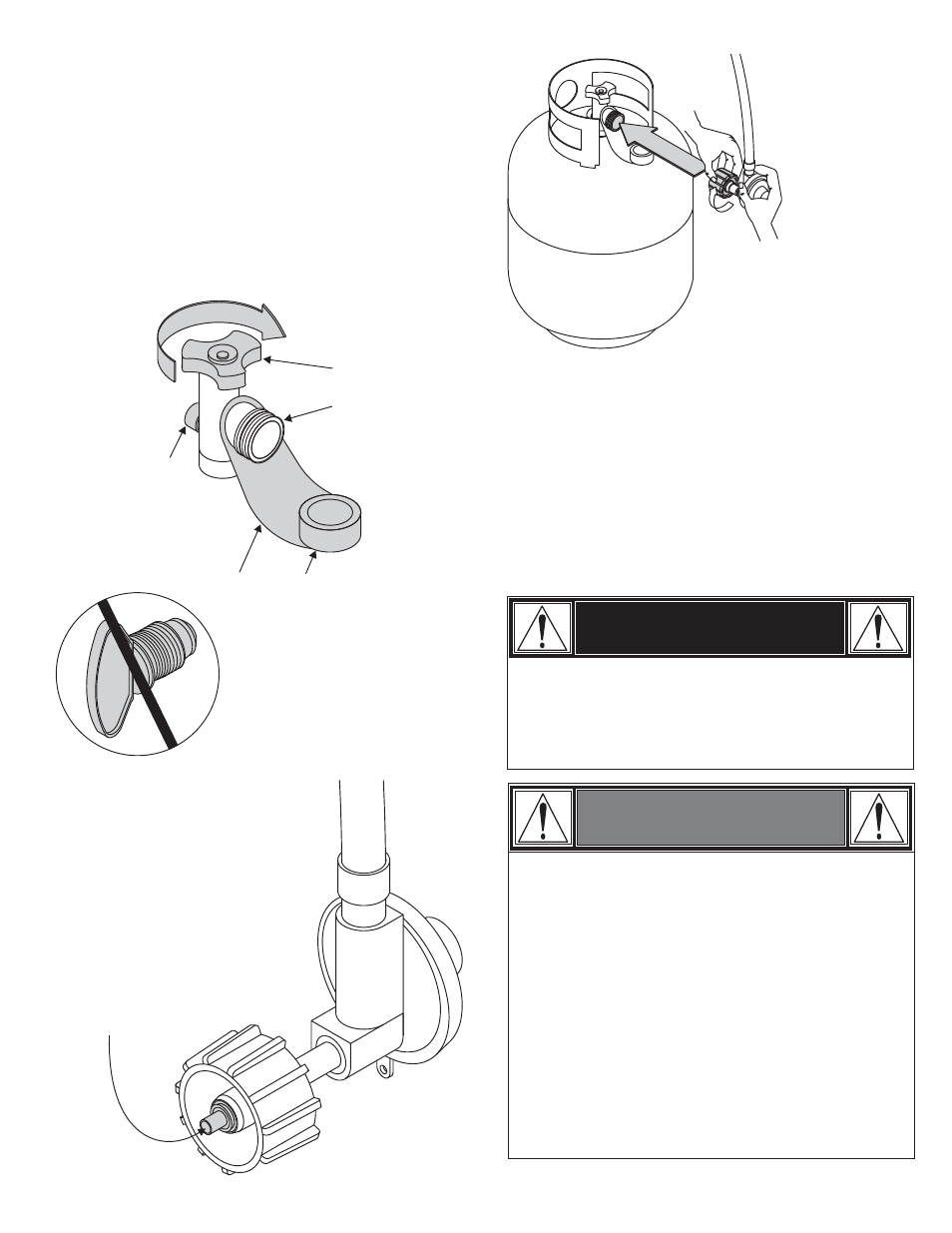

Hold coupling nut and regulator
as shown for proper connection
to LP cylinder valve.
Connecting Regulator to the LP Cylinder (Con’t.)
6. Turn the coupling nut clockwise and tighten to a .
The regulator will seal on the back-check feature in the LP
cylinder valve, resulting in some resistance.
NOTE:
If you cannot complete the connection, disconnect regulator and
repeat steps 5 and 6. If you are still unable to complete the
connection,
Full Stop
An additional
one-half to three-quarters turn is required to complete the
connection. Tighten by hand only - do not use tools.
do not use this regulator!
Safety Relief Valve
OPD Hand Wheel
ck w o l is C e f f
O
Strap and Cap
Do not use a POL transport
plug (plastic part with external
threads)! It will defeat the
safety feature of the valve.
Type 1 outlet with
thread on outside
5. Hold regulator and insert nipple into LP
cylinder valve. Hand-tighten the
coupling nut, holding regulator in a
straight line with LP cylinder valve so
as not to cross-thread the connection.
Connecting Regulator to the LP Cylinder
1. LP cylinder must be properly secured onto grill. (Refer to
assembly section of your grill manual).
2. Turn all control knobs to the OFF position.
3. Turn LP cylinder OFF by turning hand wheel clockwise to a
4. Remove the protective cap from LP cylinder valve. Always use
cap and strap supplied with valve.
Full Stop.
Nipple has to be centered
into the LP cylinder valve.
