3

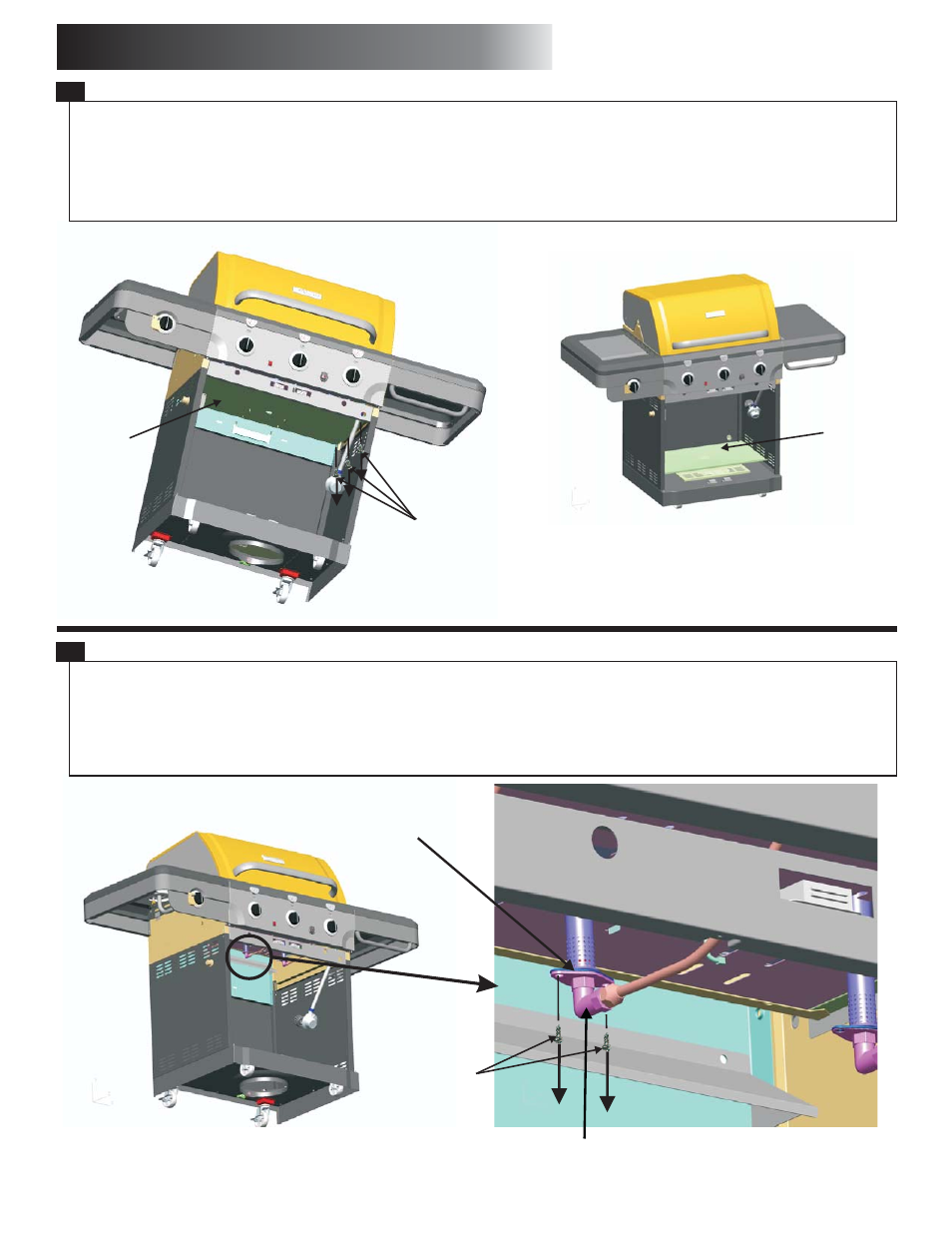

Remove Grill Bottom Pan

- Using a #2 Phillips screwdriver, remove the six #8x3/8” screws that attach the Grill Bottom Pan to the underside of grill

- Holding the front of the Grill Bottom Pan, rotate it down and pull it forward to remove it.

- Place the Grill Bottom Pan on the bottom shelf for storage.

.

Main Burner Conversion (Cont.)

Grill
Bottom Pan
In Stored
Position

Remove 6 #8x3/8”
screws from Grill
Bottom Pan.

NOTE: Cabinet doors are shown
removed to enhance clarity
DO NOT remove cabinet doors

Grill
Bottom
Pan

4

Remove LP Orifices

- Using a #2 Phillips screwdriver, remove the two #8x3/8” screws that attach the Orifice Holder to the burner flange. Repeat for each Orifice

Holder.

Remove 2 #8x3/8”
screws from
Burner Flange.

Orifice

Holder

Burner

Flange

14
