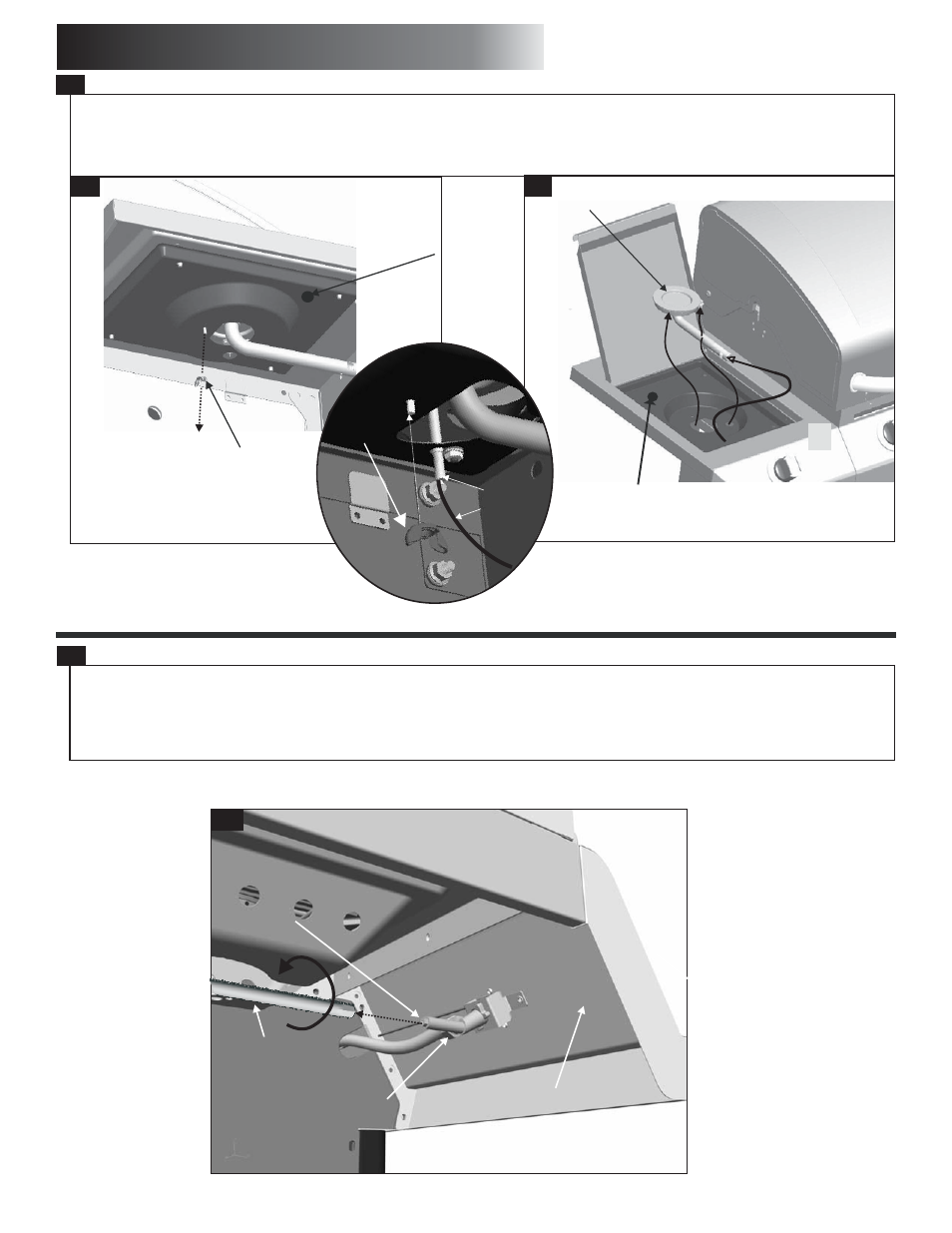

- Remove the wingnut from the burner as Shown in illustration A.
- Remove the Ignitor wire from the electrode as
- Remove the burner from the sideburner pan as
Shown in illustration B.
Shown in illustration C.
Sideburner Conversion (Con’t.)
15
Wingnut
A
Sideburner
C
Electrode
Sideburner
I
gnitor Wire
B
Wing Nut
C
6
Sideburner Valve
B
Orifice
- Locate the Sideburner Valve underneath the sideburner shelf. The Sideburner Valve will be attached to the Sideburner Fascia.
- Using the supplied , remove the orifice from the sideburner valve as shown below Orifice Driving Tool .
- This style Sideburner is designed to work with Natural Gas once Orifice is removed. Do not replace any Orifices when using Natural Gas.
6
16
Sideburner Fascia
B
Sideburner Fascia
Orifice Driving
Tool
Sideburner Drip Pan
Sideburner Drip Pan
Wing Nut
