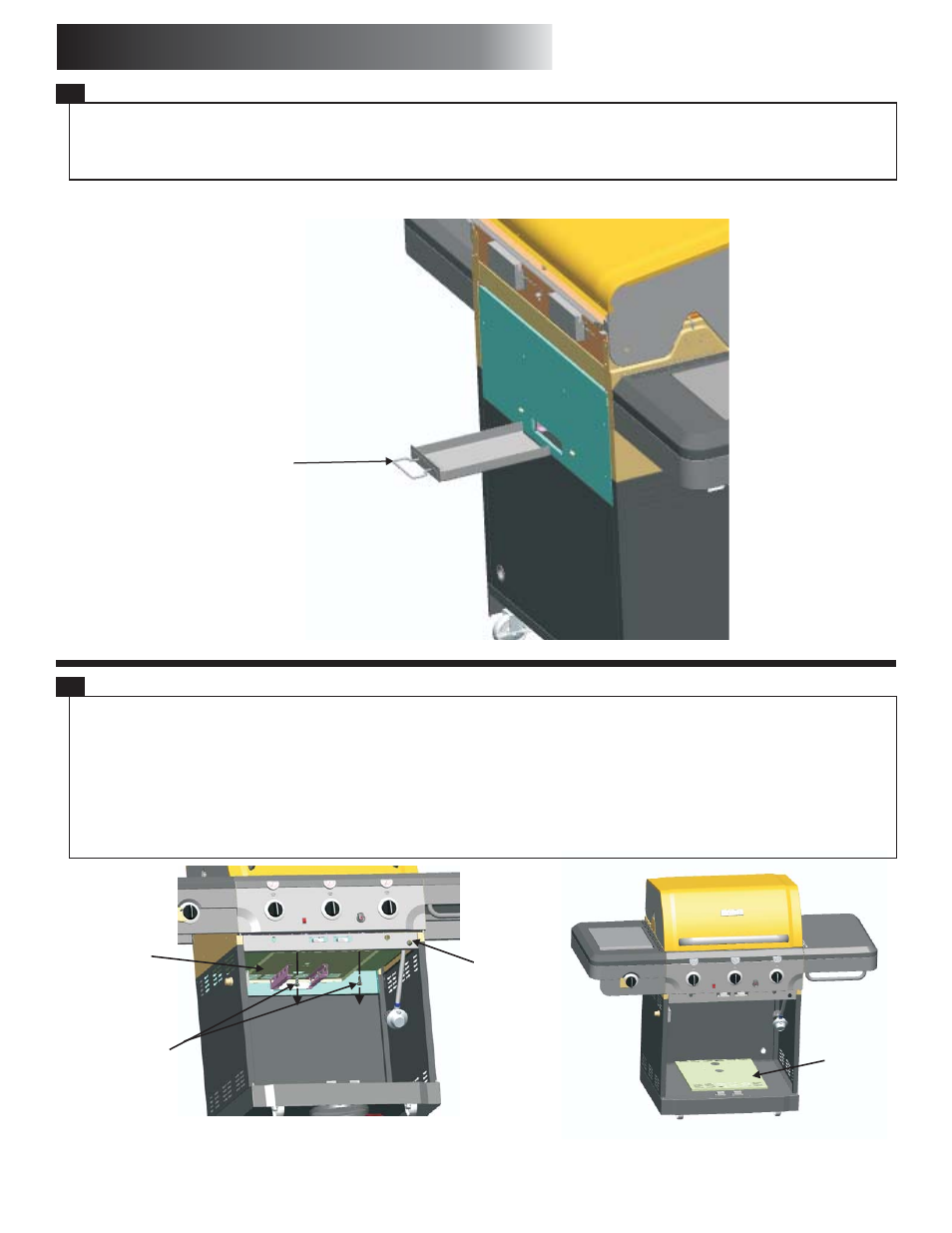

Main Burner Conversion
1
-
- Next, from rear of grill, remove grease pan..
First, make sure all control knobs are in the OFF position, LP tank valve is closed, and tank is disconnected from regulator and
removed from grill.
Grease Pan
2
Remove LP tank Heat Shield
- Open the cabinet doors. Remove any stored items from the cabinet.
- Using a #2 Phillips screwdriver, remove the two #8x3/8” screws that attach the LP Tank Heat Shield to the door brace.
- Holding the front of the LP Tank Heat Shield, rotate it down and pull it forward to disengage the rear tabs from the back panel.
- Place the LP Tank Heat Shield on the bottom shelf for storage.
Note: The rear of the
LP Tank Heat Shield is held in place with tabs and slots.
Remove 2 #8x3/8”
screws from LP Tank
Heat Shield.
LP Tank
Heat Shield
Door
Brace
NOTE: Cabinet doors are shown
removed to enhance clarity
DO NOT remove cabinet doors
LP Tank
Heat Shield
In Stored
Position
