- While holding the adjustable wrench firmly, use the Orifice Driving Tool to loosen and remove the Orifice by turning it counter-clockwise.

- Save the removed orifice for converting back to LP gas.

Remove LP Orifices

Pull the Orifice Holder and the gas tubing away from the Burner Flange. The gas tubing is flexible and will allow sufficient clearance to

complete this conversion.

Using an adjustable wrench, not provided, place the wrench securely on the Orifice Holder in the area shown below.

DO NOT twist or crimp the Gas Tubing. To do so may result in Gas Leakage.

-

5

Main Burner Conversion (Cont.)

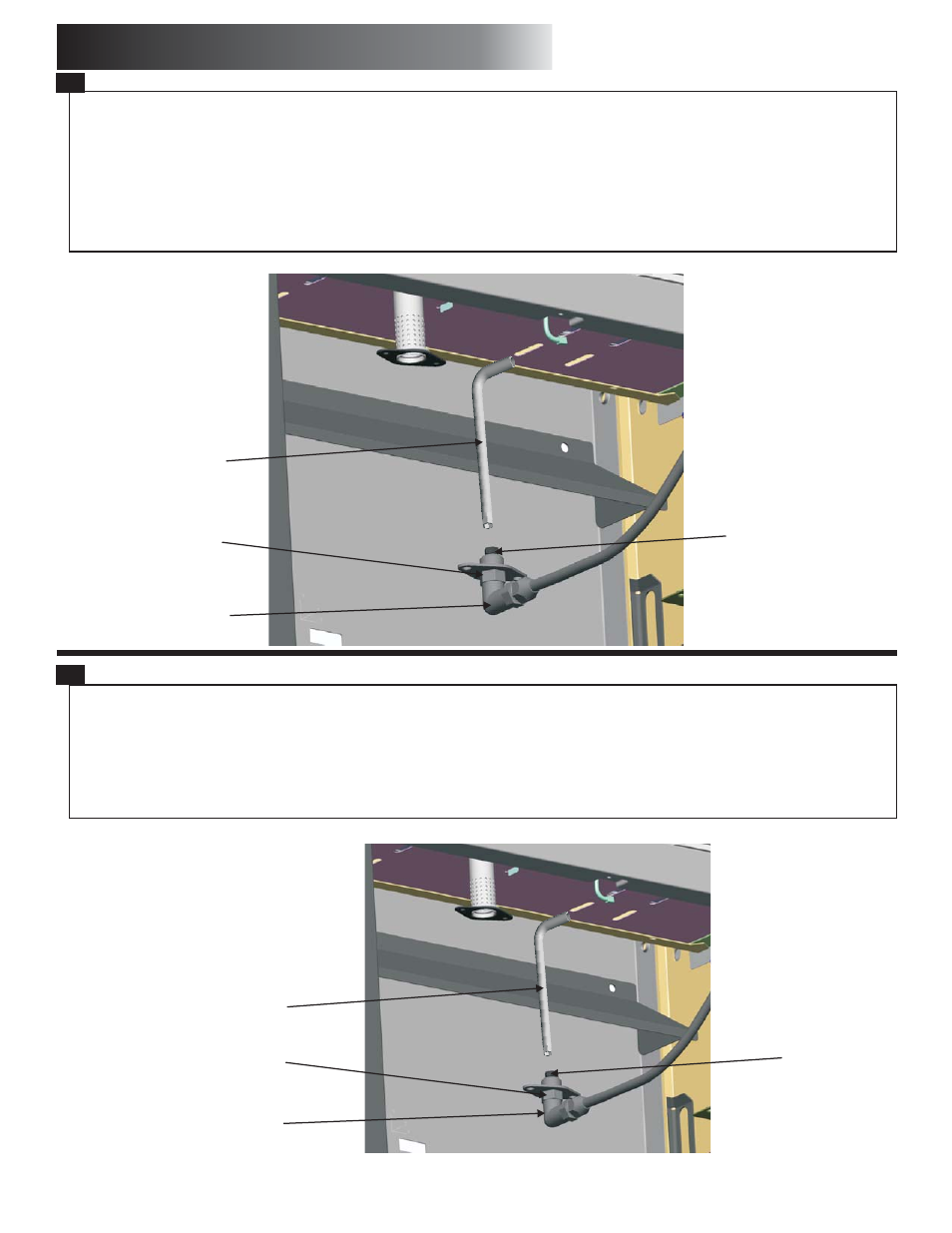

Orifice

Orifice Driving

Tool

Orifice

Holder

Place Adjustable Wrench

Here While Removing

Orifice

I

NOTE: Tighten the

orifice sufficiently to prevent gas leakage. DO NO over-tighten. DO NOT use any tool other than the Orifice Driving Tool!

nstall Natural Gas (NG) Orifices

-

- While holding the adjustable wrench firmly, use the Orifice Driving Tool to tighten each Orifice by turning it clockwise.

Using your fingers, thread the Main Burner NG Orifice(#55 Yellow Dot Orifice) into each orifice holder 2-3 turns, clockwise.

Using an adjustable wrench, not provided, place the wrench securely on the Orifice Holder in the area shown below.

-

6

#55 Yellow Dot Orifice

Orifice Driving

Tool

Orifice

Holder

Place Adjustable Wrench

Here While Removing

Orifice
