Char-Broil QUICKSET 463742704 - Manual

463742704
ASSEMBLY MANUAL
463742704 / 0–4165374 (12-03-03)

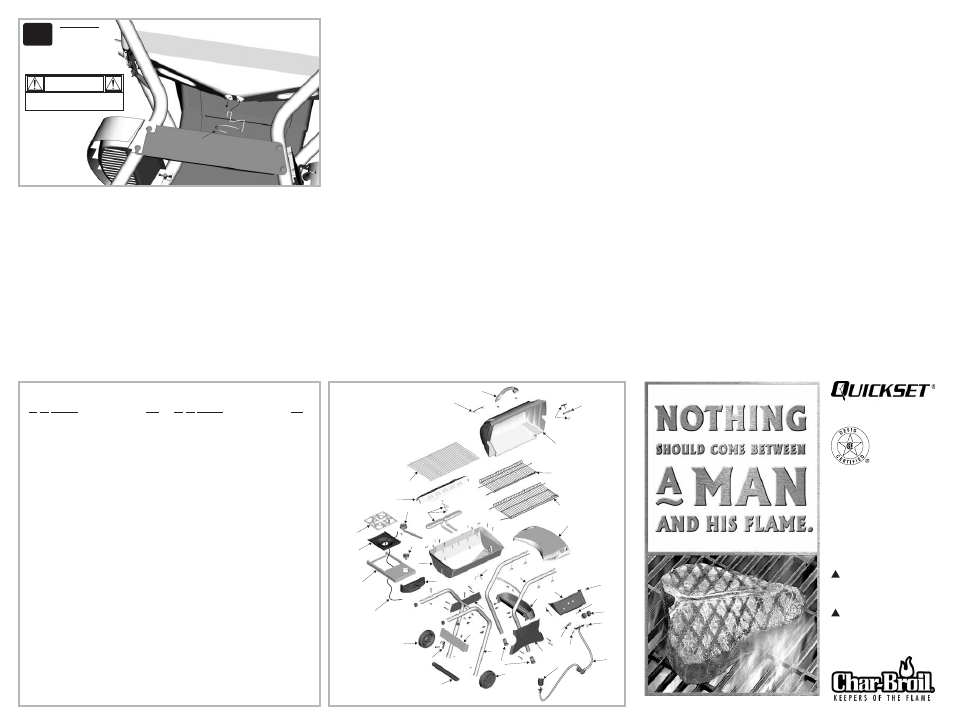

Parts List - Model 463742704
Key Qty. Description Part #
A 1 Lower SwingAway . . . . . . . . . . . . . . . . . . . . 4152124
B 1 Cooking Grate . . . . . . . . . . . . . . . . . . . . . . . 4152739
C 1 Condiment Basket . . . . . . . . . . . . . . . . . . . . 4154271
D 1 Tool Holder . . . . . . . . . . . . . . . . . . . . . . . . . . 4154273
E 1 Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4154488
F 1 Side Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . 4154542
G 2 Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . 4310002
H 1 Sideburner Grate . . . . . . . . . . . . . . . . . . . . . 4156179
I 1 Upper SwingAway . . . . . . . . . . . . . . . . . . . . 4156448
J 1 Temperature Gauge with Wing Nut . . . . . . . 4157171
K 1 Back Support Brace . . . . . . . . . . . . . . . . . . . 4500251
L 1 V Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4500290
M 1 Sideburner Frame . . . . . . . . . . . . . . . . . . . . 4501705
N 1 Side Support Brace . . . . . . . . . . . . . . . . . . . 4503120
O 1 Tank Support Bracket . . . . . . . . . . . . . . . . . . 4503122
P 2 Leg Assembly . . . . . . . . . . . . . . . . . . . . . . . . 4503229
Q 1 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . 4503136
R 1 Sideburner Body. . . . . . . . . . . . . . . . . . . . . . 4310005
S 4 #10x1/2”, T-20, Self-Tap Screw . . . . . . . . . . 4080043
T 2 Valve Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . 4151043
U 1 Burner/Collector Assembly . . . . . . . . . . . . . . 4505084
V 1 Control Panel Assembly . . . . . . . . . . . . . . . . 4530184
Key Qty. Description Part#
W 2 Control Knob . . . . . . . . . . . . . . . . . . . . . . . . 4154470
X 1 Grill Bottom . . . . . . . . . . . . . . . . . . . . . . . . . 4580184
Y 1 Grill Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4580587
Z 1 Tank Retainer Wire. . . . . . . . . . . . . . . . . . . . 4151018
AA 1 Sideburner Knob . . . . . . . . . . . . . . . . . . . . . 4154471
BB 1 Logo Plate . . . . . . . . . . . . . . . . . . . . . . . . . . 4157147
CC 1 Sideburner . . . . . . . . . . . . . . . . . . . . . . . . . . 5068026
DD 1 Grease Clip . . . . . . . . . . . . . . . . . . . . . . . . . 5156607
EE 2 Leg Extender . . . . . . . . . . . . . . . . . . . . . . . . 4154540
FF 1 Temperature Gauge Bezel . . . . . . . . . . . . . . 4157169
1 Hardware Bag, Cart . . . . . . . . . . . . . . . . . . . 4254079
1 Hardware Bag, Shelf . . . . . . . . . . . . . . . . . . 4254050
1 Hardware Bag, Sideburner. . . . . . . . . . . . . . 4254086
B
R
F
E
G
G
K
O
Q
N
C
P
P
S
S
U
V
V
T
X
BB
Z
DD
S
Optional Assembly Hardware
We realize some customers prefer to use tools.
have been provided for you to use.
Optional hex
nuts
A
L
T
V
W
V
Y
I
13 Parts to assemble:
1 Grease Clip
A. Hang grease clip
beneath grill bottom.
B. Hang an empty soup
can (not included) from
grease clip.
Rear view
of grill.
Grease Clip
• Failure to install can in clip will cause hot grease to
drip from bottom of grill with risk of fire or property
damage.
CAUTION
D
J
M
AA
CC
THIS GRILL IS FOR
OUTDOOR USE ONLY
Failure to follow all manufacturer’s
instructions could result in serious personal
injury and/or property damage.
WARNING !
CAUTION
!
Some parts may contain sharp edges –
especially as noted in the manual! Wear
protective gloves if necessary.
CAUTION:
INSTALLER/ASSEMBLER:
CONSUMER:
Read and follow all safety
statements, assembly instructions, and use
and care directions before attempting to
assemble and cook.
Leave these
instructions with consumer.
Keep this manual for future
reference.
If you have any questions or need assistance
during assembly, please call 1-800-241-7548.
Visit us on the web at:
www.charbroil.com
C O L U M B U S , G A
EE
H
FF
N
V
