Char-Broil BIG EASY 4638213 - Manual

THIS GRILL IS FOR
OUTDOOR USE ONLY
Failure to follow all manufacturer’s
instructions could result in serious
personal injury and/or property
damage.
WARNING !
CAUTION !
Some parts may contain sharp edges
– especially as noted in the manual!
Wear protective gloves if necessary.
CAUTION:
INSTALLER/ASSEMBLER:
CONSUMER:
Read and follow all safety
statements, assembly instructions,
and use and care directions before
attempting to assemble and cook.
Leave
these instructions with consumer.
Keep this manual for
future reference.
4638213
ASSEMBLY MANUAL
If you have any questions or need
assistance during assembly, please
call 1-800-241-7548.
4638213 / 1–4165041 (02-11-02)
Visit us on the web at:
www.charbroil.com

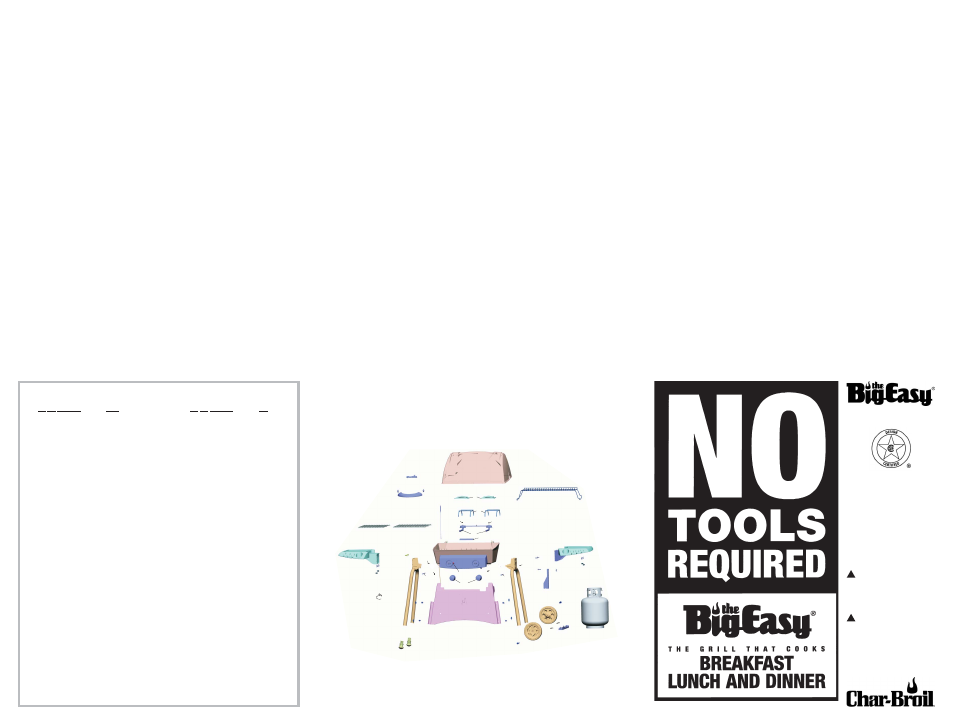

Parts List - Model 4638213
Key Qty. Description Part # . . . . . . . . . .
A 2 Tent Frame . . . . . . . . . 4151014
B 1 Warming Rack . . . . . . 4152043
C 1 Cooking Grid, 12” . . . . 4152045
D 1 Cooking Grid, 15” . . . . 4152046
E 1 Handle . . . . . . . . . . . . 4154488
F 2 Wheel . . . . . . . . . . . . . 4156957
G 1 LP Tank . . . . . . . . . . . . 4158015
H 2 Burner Tent . . . . . . . . . 4500226
I 1 Upper Panel . . . . . . . . 4502072
J 1 Tank Support. . . . . . . . 4502098
K 1 Tank Retainer . . . . . . . 4502113
L 2 10x1/2” Screw, . 4080043
M 2 Pivot Pin . . . . . . . . . . . 4080066
N 2 3/16 Pal Nut . . . . . . . . 4153096
O 1 Ignitor Wire . . . . . . . . . 4153184
P 2 Leg Extender . . . . . . . 4154516
Q 2 3/4” Hitch Pin . . . . . . . 4156515
R 1 Carry-over Tube . . . . . 4500227
S 1 Heat Shield . . . . . . . . . 5501038
T 1 Left Leg. . . . . . . . . . . . 4502194
U 1 Console Assembly . . . 4530058
V 1 Ignitor . . . . . . . . . . . . . 4153713
W 1 Grill Bottom . . . . . . . . . 4580316
X 1 Right Shelf Assembly . 4520011
Y 1 Left Shelf Assembly . . 4520012
Z 1 Grill Top. . . . . . . . . . . . 4580144
AA 2 Control Knob. . . . . . . . 4154507
BB 1 Logo Plate. . . . . . . . . . 4157147
Self-tap
Key Qty. Description Part . . . . . . . . . .
CC 1 Hardware, Cart Assy. . . . 4254008
DD 1 Hardware, Shelf . . . . . . . 4254010
EE 1 Right Leg . . . . . . . . . . . . 4502161
FF 2 Burner. . . . . . . . . . . . . . . 5068016
GG 1 Grease Clip. . . . . . . . . . . 5156607 Z
BB
E
H
A
B
C D
FF
R N N
S
O
T
U
V
W Y X
AA EE
F
F G
I
J
L
M
Q
Q
M
L
K
P
GG
