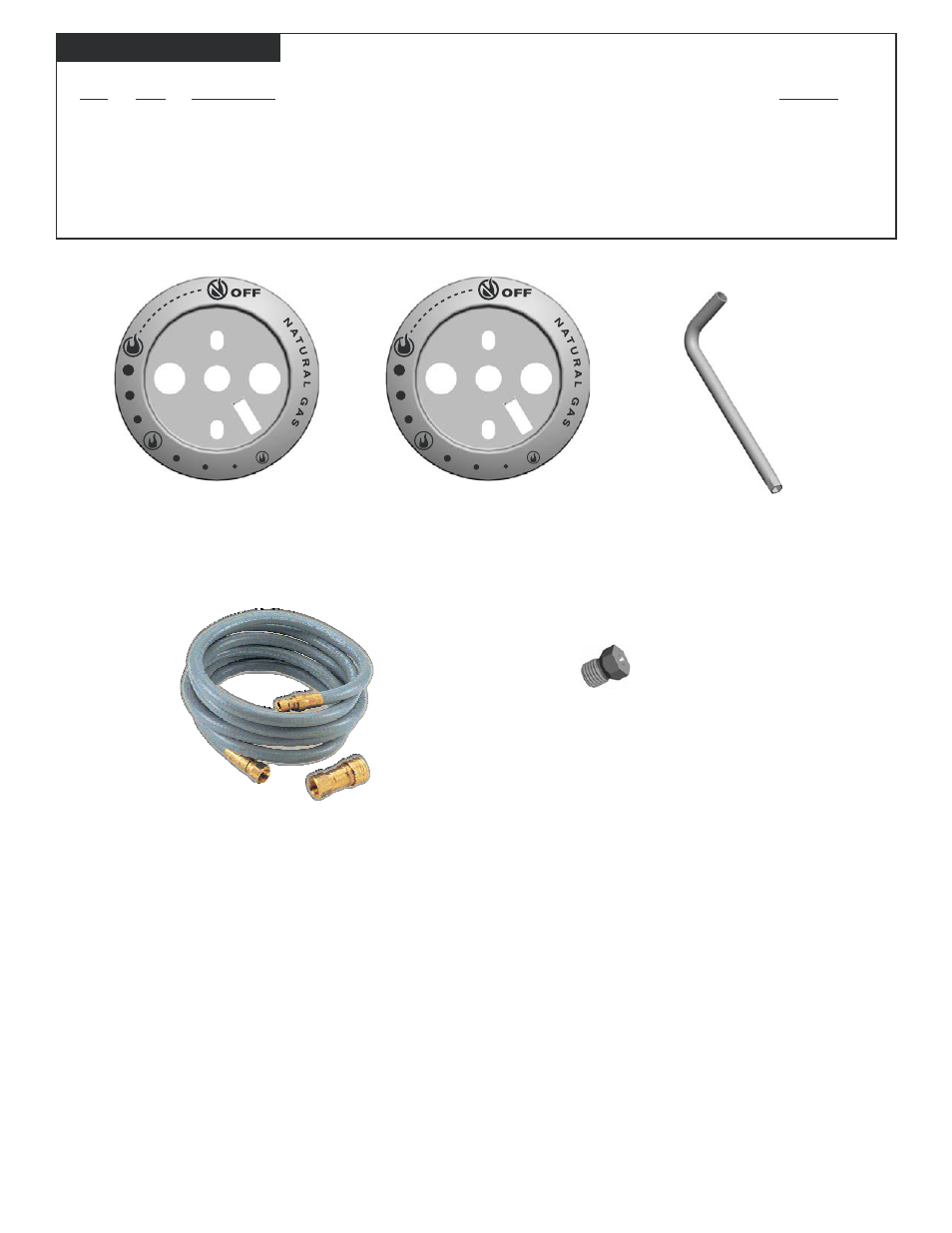

PARTS LIST/DIAGRAM

Key

Qty.

Description

Part No.

A . . . . . 3 . . . . . Main Burner Natural Gas Bezel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80004350
B . . . . . 1 . . . . . Sideburner Natural Gas Bezel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80004350

D . . . . . 1 . . . . . 10 ft., 3/8” Natural Gas Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3496263

Main Burner NG Orifice (Yellow Dot- #55). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80018401

E . . . . . 3 . . . . .

A

B

D

Note: Illustrations are not to scale.

E

C . . . . . 1 . . . . . Orifice Driving Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80004378

C

#55
Yellow Dot

Tools required for assembly:

Estimated assembly time: 45-60 minutes

Orifice Driving Tool - Provided

Adjustable Wrench - Not provided

Standard #2 Phillips Screwdriver - Not provided

NOTE: Magnetic tip screwdrivers are recommended, but not required.
