Char-Broil 4539937 - Manual (Page 10)

Correct
engagement
Reinstall
Screws
NOTE:
We suggest three ways to clean the burner tubes. Use the one
easiest for you.
A. Bend a stiff wire (a light weight coat hanger works well)
into a small hook. Run the hook through each burner tube
several times.
B. Use a narrow bottle brush with a flexible handle (do not
use a brass wire brush), run the brush through each
burner tube several times.
C. Use an air hose to force air into the
burner tube and out the burner ports. Check each port to
make sure air comes out each hole.
10. Wire brush entire outer surface of burner to remove food
residue and dirt.
11. Clean any blocked ports with a stiff wire such as an open paper
clip.
12. Check burner for damage, due to normal wear and corrosion
some holes may become enlarged. If any large cracks or holes
are found replace burner.
13. After cleaning put the burner back into the firebox and attach the
electrode wire onto the electrode connector under the burner.
14. Place burner into position and reinstall the hitch pin.
15. Under the firebox, attach the orifice holder with the burner tube
with the screws previously removed.
16. Replace the grease pan, tank heat shield, grease tray, radiator
plate and cooking grates.
Wear eye protection:
VERY IMPORTANT: Burner tubes
must be properly connected to
orifice holders.
See illustration at right.
Storing Your Grill
-Clean cooking grates.
-Store in a dry location.
-When LP cylinder is connected to grill, store outdoors in a
well-ventilated space and out of reach of children.
-Cover grill if stored outdoors. Choose from a variety of grill
covers offered by manufacturer.
-Store grill indoors ONLY if LP cylinder is turned off and
disconnected, removed from grill and stored outdoors.
-When removing grill from storage, follow
instructions before starting grill.
“Cleaning the
Burner Assembly”
B
A
Burner Tube
View from under firebox
Front
C
Pull hitch pin from front of burner
of
Grill
General Grill Cleaning(con’t.)
Wash with warm soapy water and wipe dry. Do
not use citrisol, abrasive cleaners, degreasers or a concentrated
grill cleaner on plastic parts. Damage to and failure of parts can
result.
Because of glass-like composition, most
residue can be wiped away with baking soda/water solution or
specially formulated cleaner. Use non-abrasive scouring powder
of stubborn stains.
Wash with mild detergent or non-abrasive
cleaner and warm soapy water. Wipe dry with a soft non-
abrasive cloth.
To maintain your grill’s high quality
appearance, wash with mild detergent and warm soapy water
and wipe dry with a soft cloth after each use. Baker-on grease
deposits may require the use of an abrasive plastic cleaning pad.
Use only in direction of brushed finish to avoid damage. Do not
use abrasive pad on areas with graphics.
If a bristle brush is used to clean any of the
grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to clean
cooking surfaces while grill is hot.
Plastic parts:
Porcelain surfaces:
Painted surfaces:
Stainless steel surfaces:
Cooking surfaces:

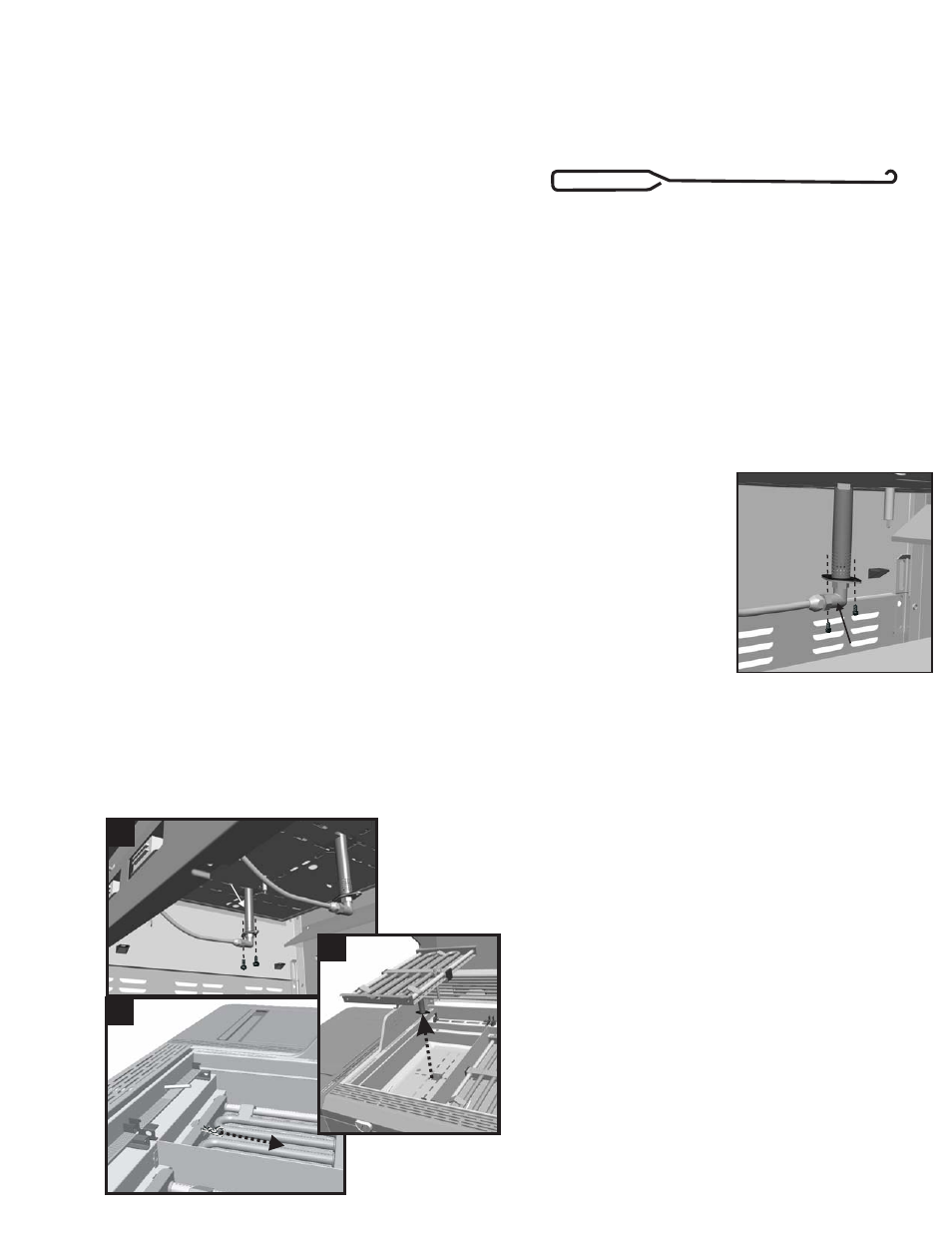

Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.
1.
2. Remove grease tray from back of grill.
3. Open doors, remove tank heat shield and grease pan from
underneath the firebox.
4. Remove screws that hold orifice holder with the burner tube.
5. Remove cooking grates and radiator plates.
6. Remove hitch pin from front of the burner to disengage it.
7. Carefully lift up the burner enough to expose the electrode wire.
Detach wire from electrode underneath the burner.
8. Carefully take out the burner to clean.
9. While cleaning, make sure that the ignitor wire is not bent or
broken.
Turn gas OFF at control knobs and LP cylinder.
Figure A.
Figure B.
Figure C.
10
Holder
Orifice
