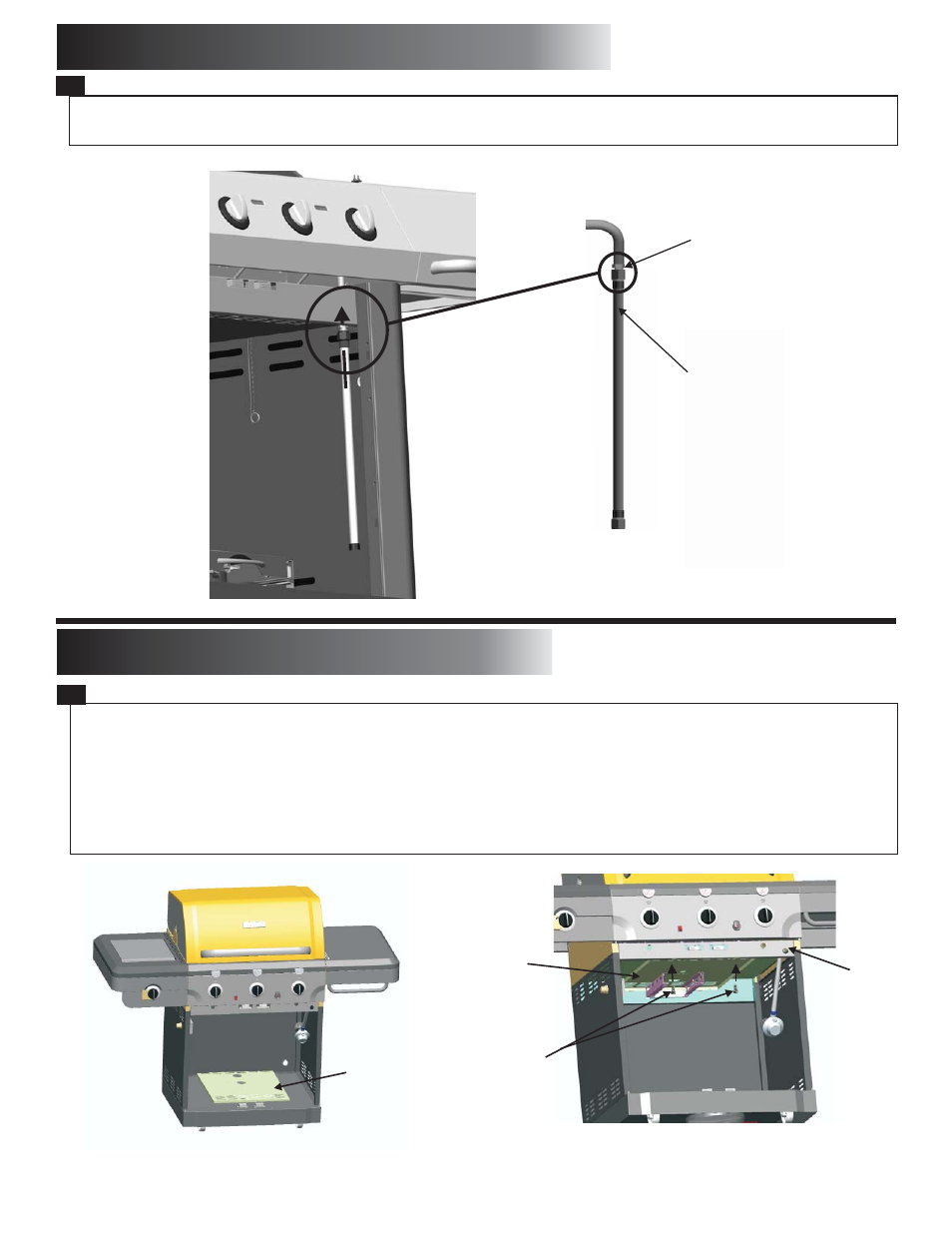

12
Reinstall LP tank Heat Shield
- Insert tabs without screw holes(at rear of heat shield) into back panel slots.
- Align the tabs with screw holes at the front of the heat shield to the door brace.
- Carefully insert the #8x3/8” screws through the tabs and into the door brace..
- Using a # 2 Phillips screwdriver, not provided, tighten both screws. DO NOT over-tighten the screws.
Reinstall 2 #8x3/8”
screws into LP Tank
Heat Shield.
LP Tank
Heat Shield
Door
Brace
LP Tank
Heat Shield
In Stored
Position
NOTE: Cabinet doors are shown
removed to enhance clarity
DO NOT remove cabinet doors
11
- Secure the Natural Gas Hose Assembly using an adjustable wrench, not provided, to Manifold Connection.
Manifold
Connection
Natural Gas
Hose Assembly
Natural Gas Hose Conversion (Con’t.)
