5. Reconnect the lamp to the lamp connector and place in the spring
mechanism. Verify that the pin on the lamp is properly seated in the
slot on the lamp bracket.
6. Reattach the lamp door securely. The unit will not power up unless
the lamp door is seated properly.
Fuse Replacement
1. Turn the unit off and remove the power cord from both the wall outlet
and the Stryker Light Source.
2. Use a small screwdriver to remove the fuse holder above the power
cord connector by releasing the spring-loaded snap connections.
3. Pull out the fuse holder.
4. Remove and replace with new fuses of the same type. There is no
required orientation of the fuses. Verify both fuses are replaced.

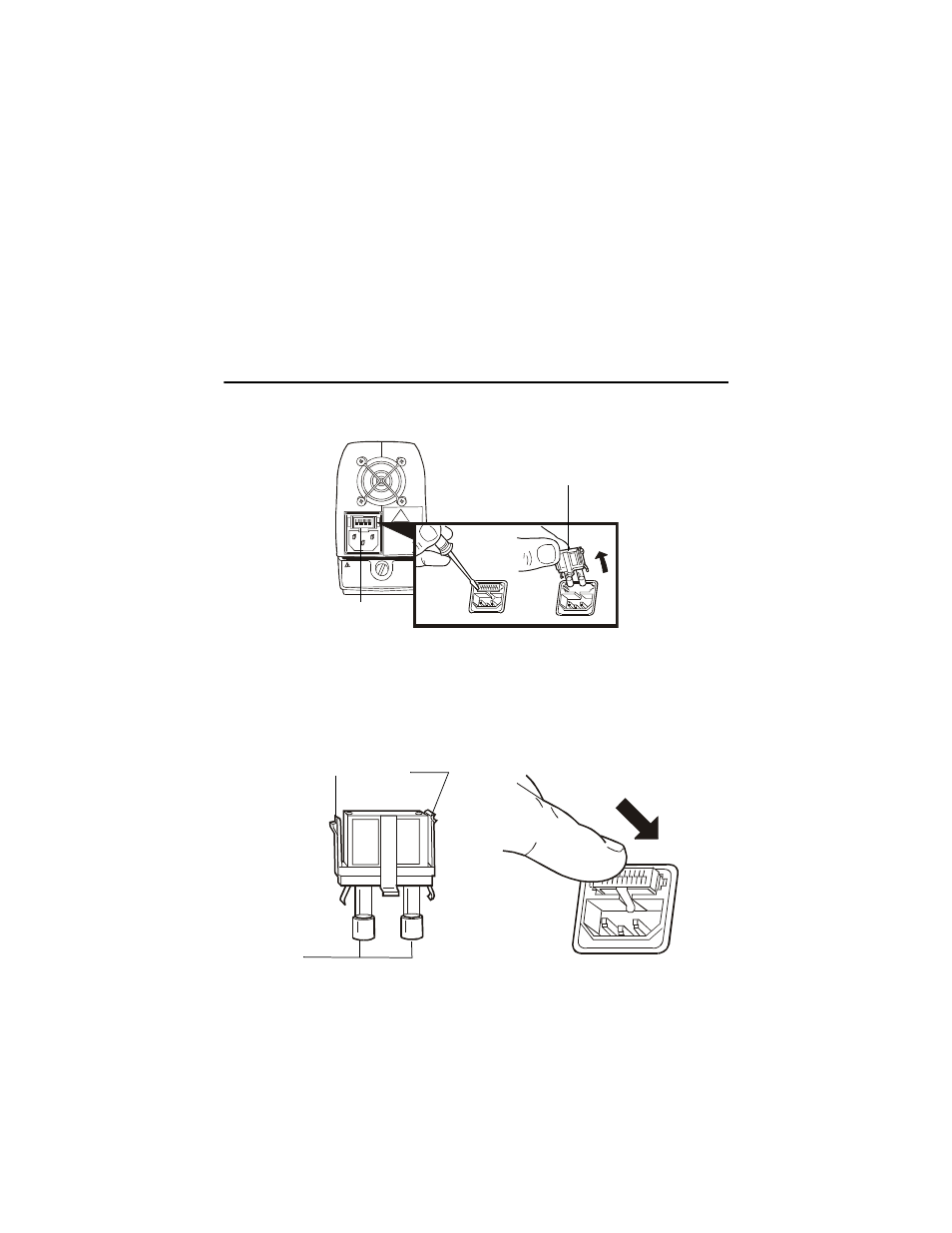

Fuse Holder
Fuse Holder
Snap Connections
Fuses
