1-6

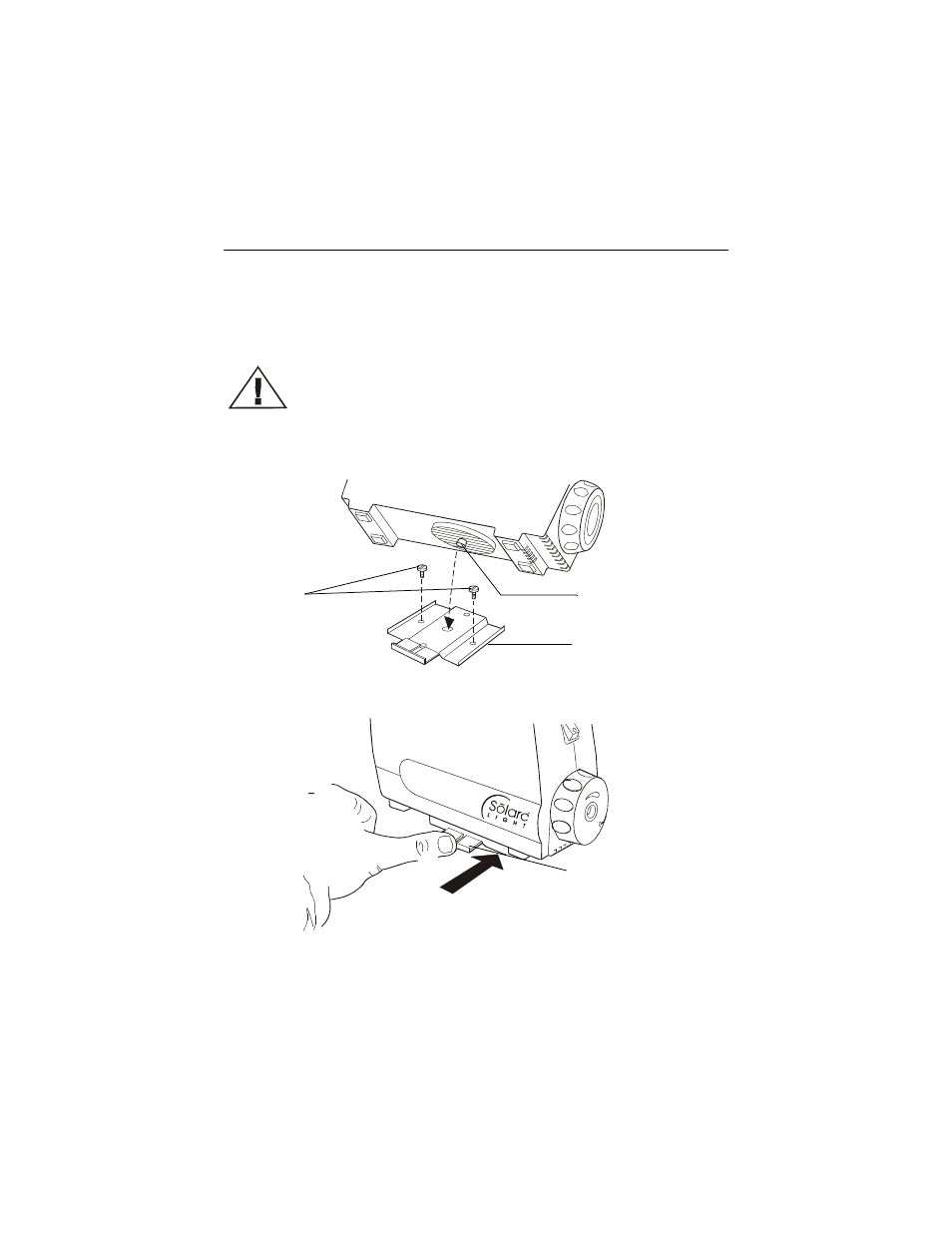

Mounting

Secure bracket to a flat surface with screws provided. Align mounting
post on Light Source with mounting hole on bracket (View A). Slide
mounting lock until it clicks into place (View B). Light Source is now
securely mounted to table.

CAUTION: Do not cover or drape, light source generates heat.
For proper ventilation, maintain a clearance of 3 inches (7.62
cm) around the unit, especially around the fan.

VIEW A

Supplied Screws

Mounting Post

Mounting Bracket

VIEW B

Mounting
Lock
