Warnings and Cautions
• To avoid damaged power cords and fiber optics, DO
NOT rotate the lower arm more than one complete
revolution (360°).
• DO NOT touch the optical or illumination lenses
except as described in the maintenance section of
this manual.
• Unplug the system from the wall outlet before
attempting to replace the lamp.
• The colposcope should not be operated in the
presence of flammable or explosive gases or
chemicals, or installed in areas where these
materials are commonly used.
• To avoid overheating, the colposcope should not be
positioned closer than 6” to any wall.
• Keep all liquids away from electrical equipment to
avoid the possibility of shock and instrument
damage. DO NOT spray cleaning solution directly
onto any part of the unit.
• Occasionally inspect the power cord for signs of
cuts, abrasions or dents.
• The colposcope should never be stored or operated
in areas where it could get wet or could be exposed
to any environmental conditions like extreme
temperature or humidity, direct sunlight, dust, etc.
• The lamp is extremely bright. DO NOT stare directly
into illumination lens when the lamp is lit.
• All service to the colposcope must be performed by
Welch Allyn or by an authorized repair center.
• Colposcope device to patient distance no closer than
19 cm. Closer distances have higher irradiance levels
and may cause thermal skin injury. Short intermittent
exposures in and out of the illumination path by the
user at closer distances is typical of cervical
examinations. Prolonged exposures not
recommended.
• Colposcope user should adhere to the operating
conditions found in this manual. Otherwise,
instrument damage may occur and/or operator/
patient safety may be compromised.
There are no user serviceable parts (other than the lamp
and fuses) in this unit or in its accessories. Any attempt
to disassemble and/or repair this unit will result in voiding
of the warranty.

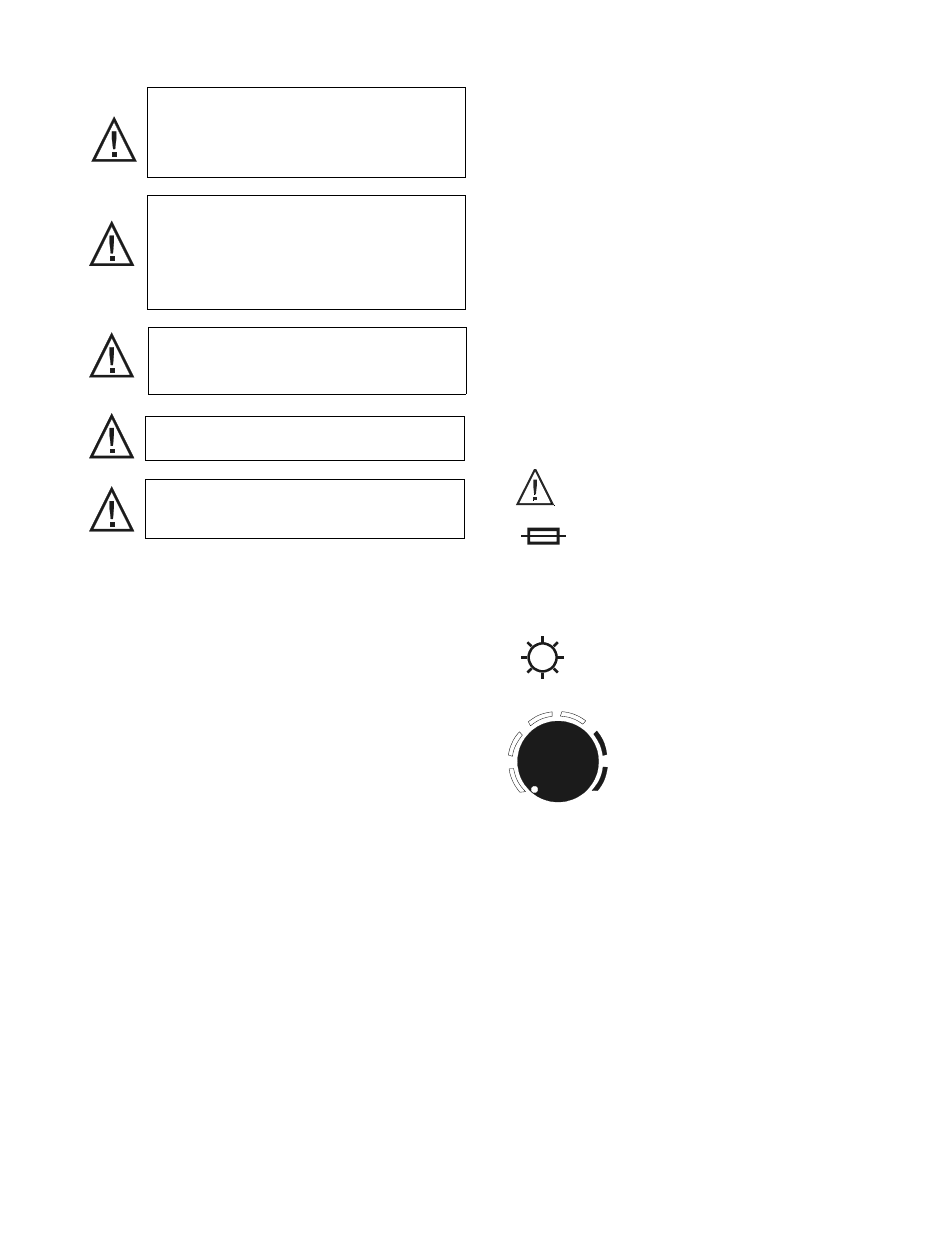

Symbols
Caution: Consult user's manual for
additional information.
Risk of fire. Replace fuses as marked.
Alternating Current
Warning: High intensity light
Ø OFF (power supply of unit is
energized whenever the power cord is
plugged in).
1 Minimum Light Setting
6 Maximum Light Setting
CAUTION: Grounding reliability can only
be achieved when the equipment is
connected to an equivalent receptacle
marked “hospital only” or “hospital grade”.
CAUTION: The lamp operates at a high
temperature. DO NOT attempt to remove
the lamp before allowing it to cool. Allow at
least five minutes for the lamp to cool
before replacing. Replace with Welch Allyn
lamp #04050 only.
CAUTION: The device is for OB/GYN
purposes only.
CAUTION: Federal law restricts this device
to sale by or on the order of a physician or
other appropriately licensed medical
CAUTION: Disconnect unit from power
source before removing the lamp access
cover.
2,5 A/T
0
1
2
3
4
5
6
VAC
