7
3. Rotate the colposcope fine focus adjustment
clockwise or counterclockwise until the approximate
midpoint of total adjustment is achieved.
4. Adjust scope to desired working position by pushing
or pulling the tilt handle.
5. Set the oculars to zero by rotating the diopter rings.
Align dots on ocular and sleeve.
6. Rotate the Zoom Control Knob to minimum
magnification.
7. Adjust the oculars to match the interpupillary
distance so that both circular views are brought into
coincidence.
8. Identify your dominant eye and close the inferior
eye.
9. While viewing through the “dominant” eyepiece,
push the colposcope towards or away from a printed
subject (a dollar bill makes an excellent practice
focusing target) until the target comes into rough
focus. Adjust the ocular for this eye. Repeat for the
inferior eye.
10. View through both eyepieces and rotate the zoom
control from maximum to minimum magnification.
The image should remain in focus throughout the
range.
11. Adjust the fine focus as necessary to compensate
for patient movement during the exam.
Green Filter
To examine with the
green filter in place,
slide the green filter bar
to the left. By utilizing
the green filter, the
terminal
angioarchitecture
becomes etched in
black allowing a degree
of discrimination not
otherwise achieved.
This contrast also
enhances the features
of the surface
topography. Sliding the
green filter bar to the
right will disengage the
green filter.
CAUTION
• Avoid hitting the colposcope! When transporting
or adjusting the colposcope, handle the colposcope
gently, taking care to avoid sharp knocks.
• Avoid the following conditions: dust, vibration, and
exposure to high temperature, moisture, or direct
sunlight.
• Do not leave dust, dirt, or finger prints on the lens
surface. They will prevent a clear observation of the
image.
• Support the bottom of the light source if height
adjustment is required.

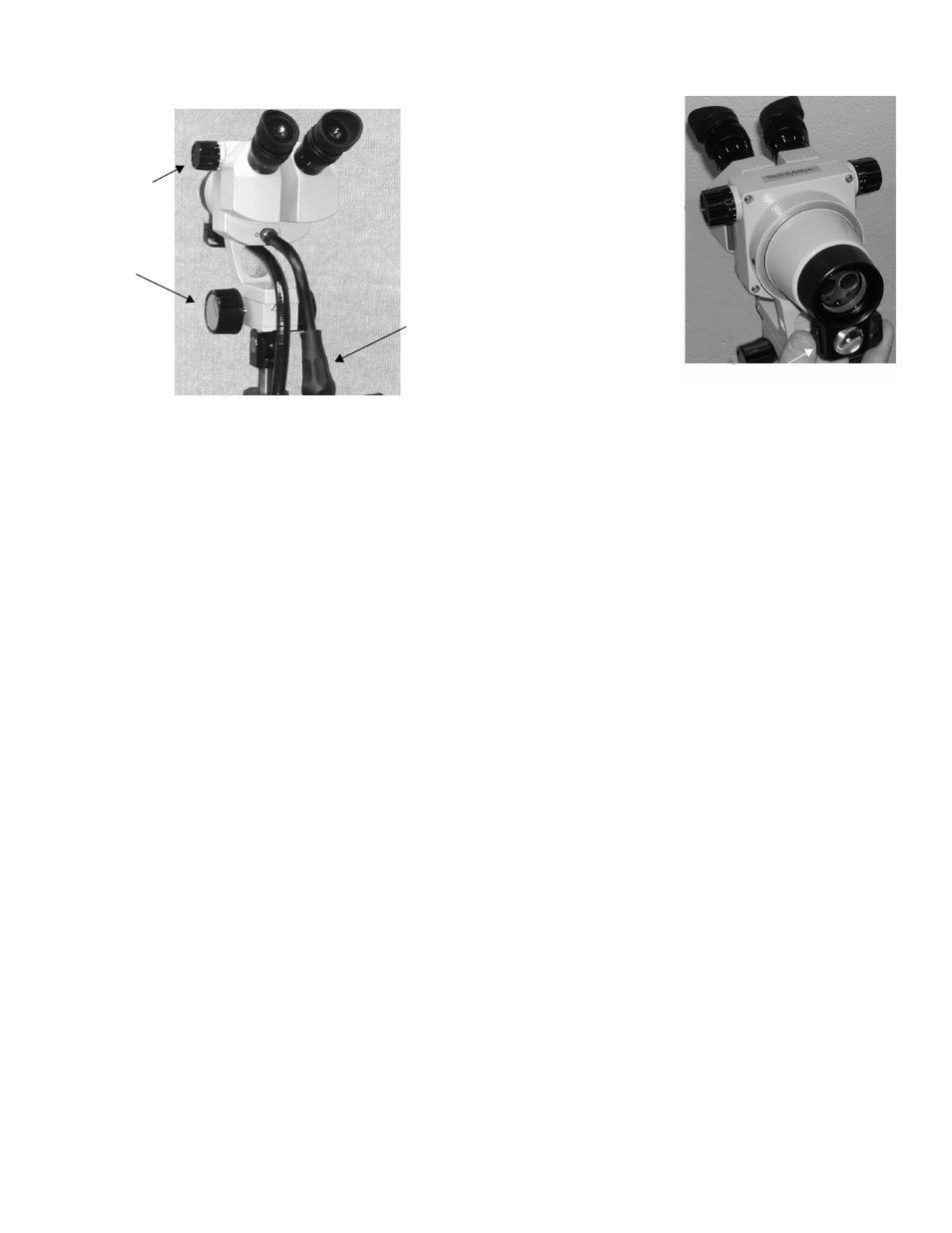

Fine Focus
Knob
Zoom
Control
Knob
Tilt
Handle
Green Filter
