HS-2010MED Installation
3-12 User Manual
HS-2010MED

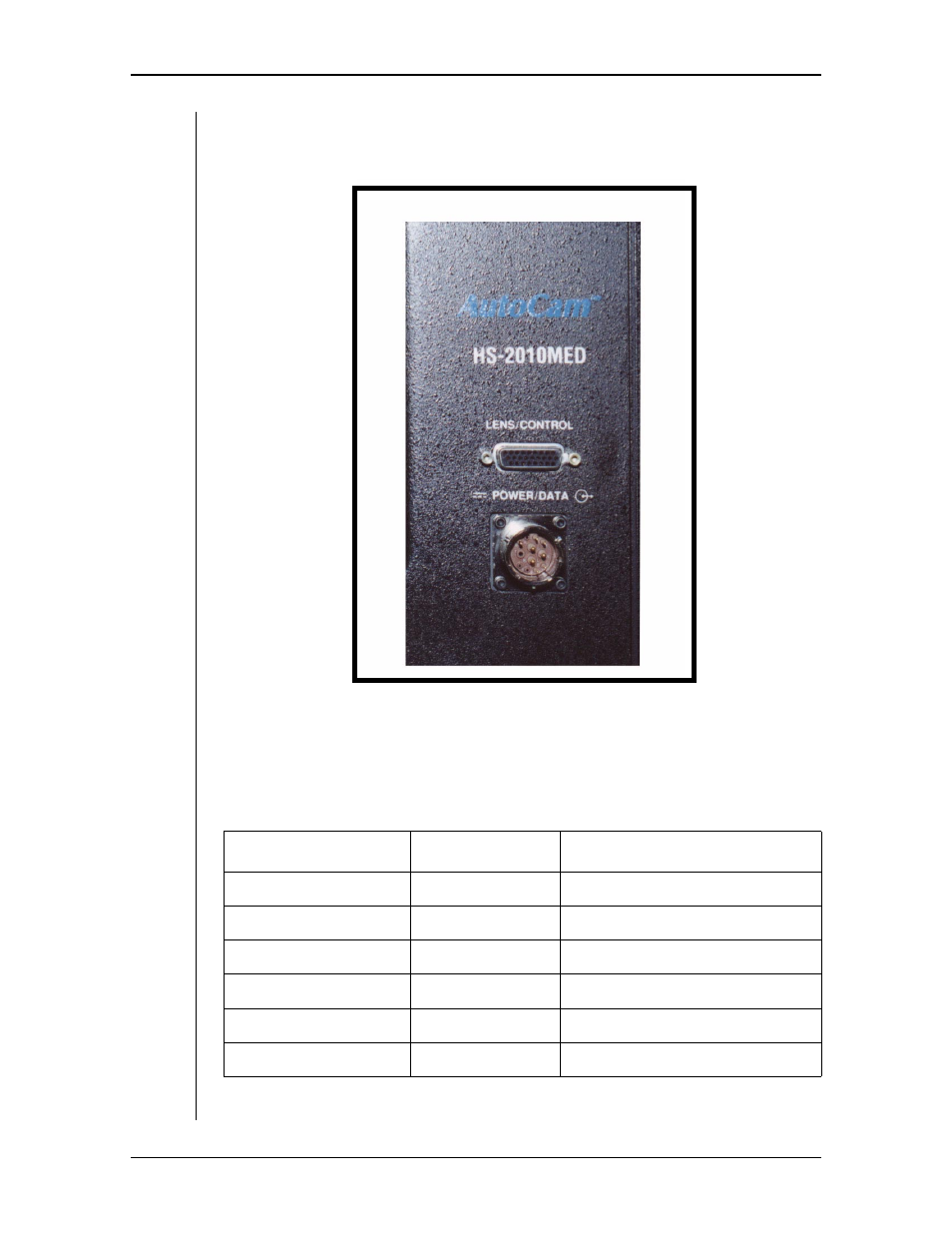

Electrical connections are made via the two connectors on the head. These con-
nectors are on the opposite side from the head power switch.
1. Locate the cables supplied with your equipment.
2. Install the lens control cable from the 26 pin D connector on the head to the
lens.
3. Install a cable from the Power/Data Connector on the head to the appropri-
ate source depending on the equipment in your system as listed below.
In the table above, “xx” denotes the cable length in feet (m x 0.3).
System Equipment Cable Type Connect To
SP-2000/X-Y SP-CAB-8 Power/Data Out On Pedestal
SE-1000 HP-SP-CAB-10 Power/Data Out On SE-1000
ACP-8000P SP-CAB-xx Power Supply Power/Data Out
LCP-8000 SP-CAB-xx Power Supply Power/Data Out
HCP-8000 SP-CAB-xx Power Supply Power/Data Out
MultiController 2 SP-CAB-xx Power Supply Power/Data Out
