HS-2010MED Safety & Introduction
1-10 User Manual
Typical Applications
The HS-2010MED pan & tilt head can be mounted on the AutoCam™ SP-2000/
X-Y free roaming servo pedestal, SP-2100Z Elevating Pedestal or manual ped-
estals such as Vinten’s Fulmar or Quattro models. NOTE: Make sure that the
total load (head and payload) does not exceed the capacity of your pedestal. For
example, a fully loaded HS-2010MED will exceed the capacity of a Quattro
pedestal.
Up to eight pedestals and heads can be controlled remotely with the AutoCam™
ACP-8000P touchscreen controller. For applications without servo pedestals, the
HCP-8000 touchscreen controller or the compact MultiController II can be
used. Communication between the head and the controller is by RS-422 data.
Refer to the User Manuals for your specific pedestals and controllers for more
information.

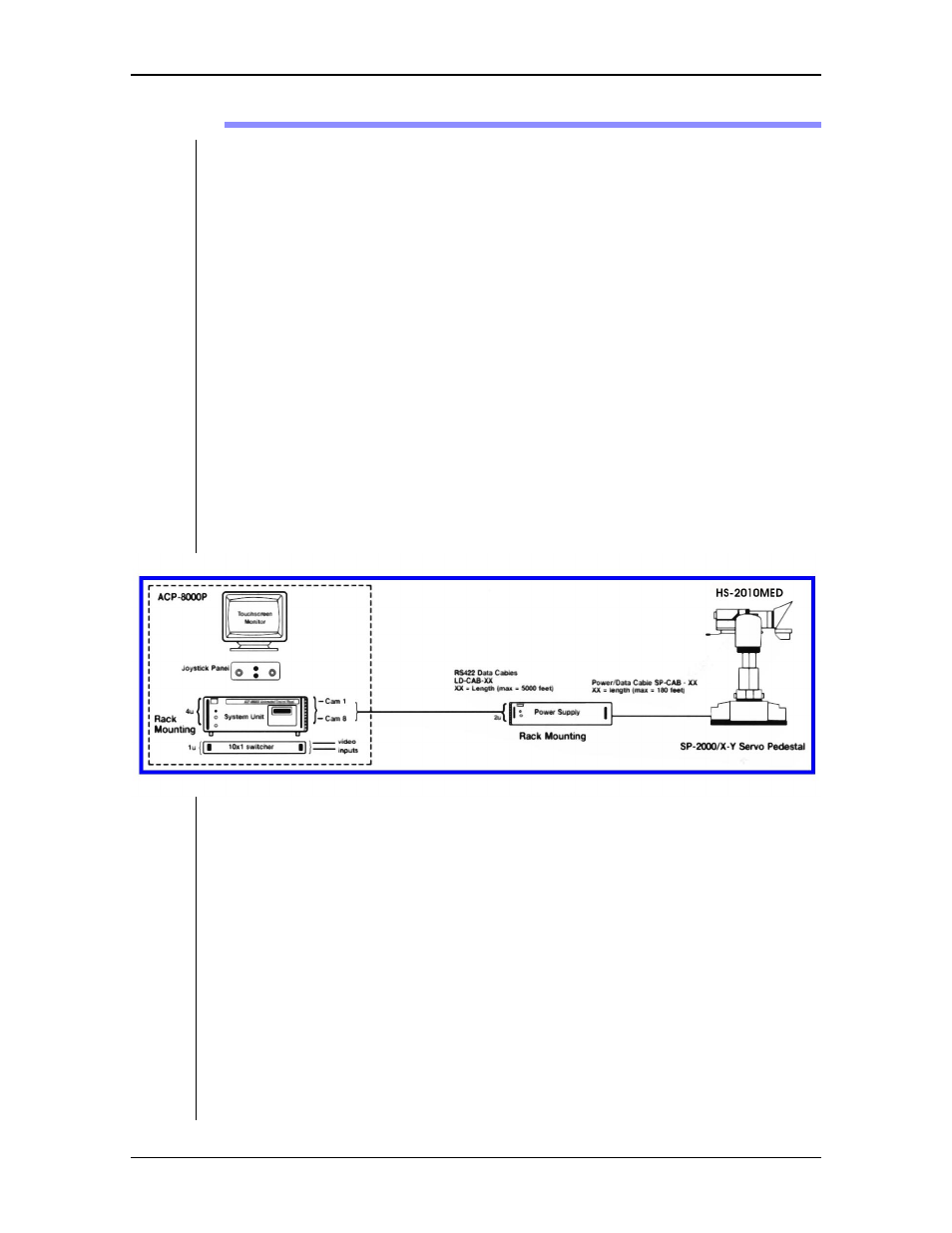

ACP-8000P System
In systems with one or more (up to eight) servo pedestals, the ACP-8000P con-
troller is used as shown below
The distance between the controller and rack mounted power supply can be up
to a maximum of 5000 ft. (1500 m). With manual pedestals, the power/data
cable connects the power supply directly to the head up to a maximum distance
of 500 ft. (150 m). With servo pedestals, the power/data connection is made
from the power supply to the pedestal (maximum distance 180 ft or 55 m) and
then looped up to the head.
