Hygienic Weighing Module Contego®
Installation Manual
EN-4
Sartorius
2
Design Recommendations
2.1

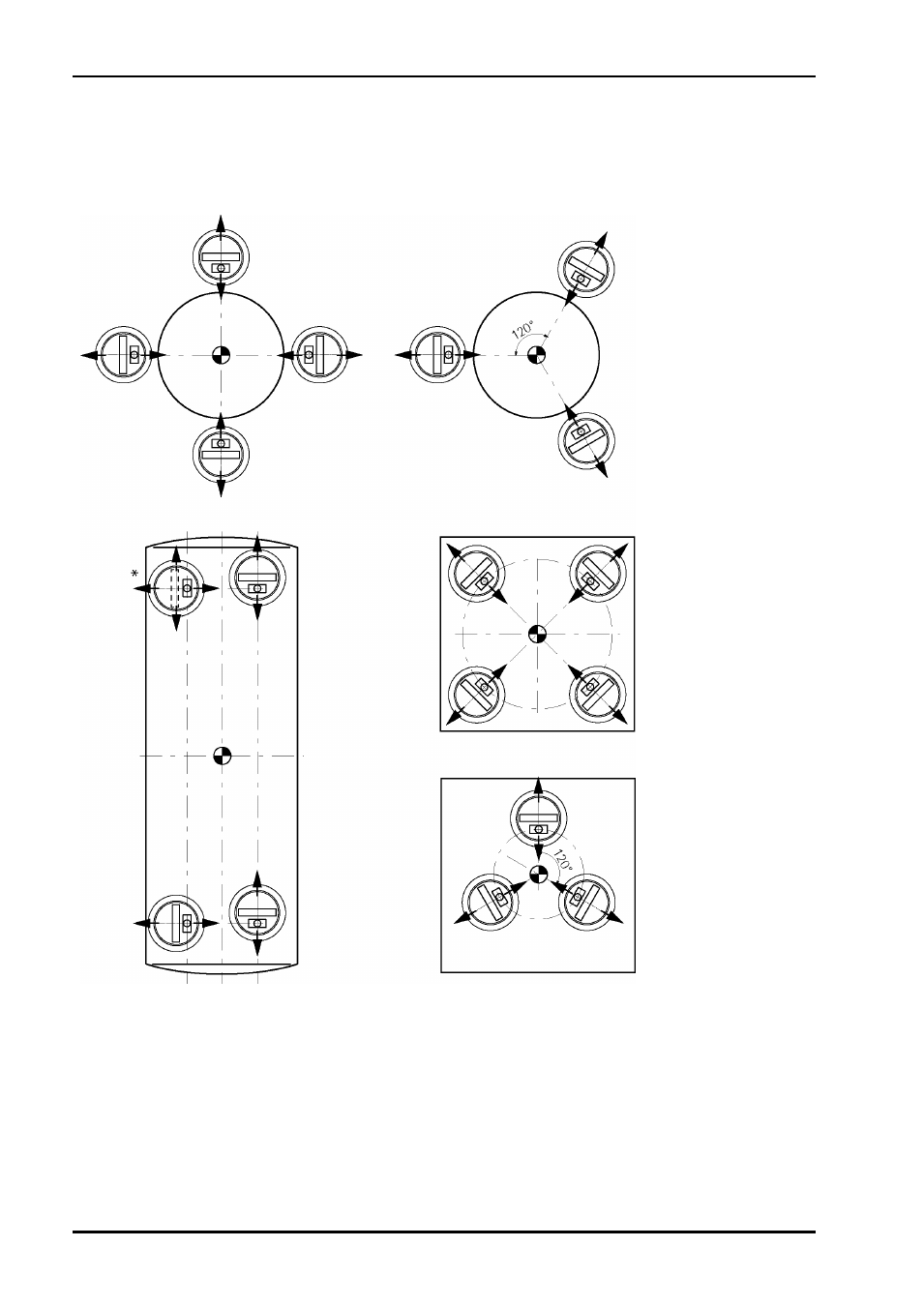

Location of Weighing Modules
* If necessary, release or remove the stopper, to avoid distortions.
The underframe of the vessels must be strong enough to support the specified loads, horizontal (water
level!) and flat. Preferably, vessels should be installed on 3 weighing modules with integrated stopper (see
figure).
Parasitic forces, horizontal forces and torques are disturbances which can generate measuring failures and
in case of exceeding the permissible limits may damage the load cell.
