Hygienic Weighing Module Contego®

Installation Manual

EN-26

Sartorius

8

Servicing/Repairs/Cleaning

8.1

Servicing

8.1.1

Replace the Bellow

Warning:
The vessel may turn over during mounting.
Securing the vessel against tipping is imperative.

Procedure

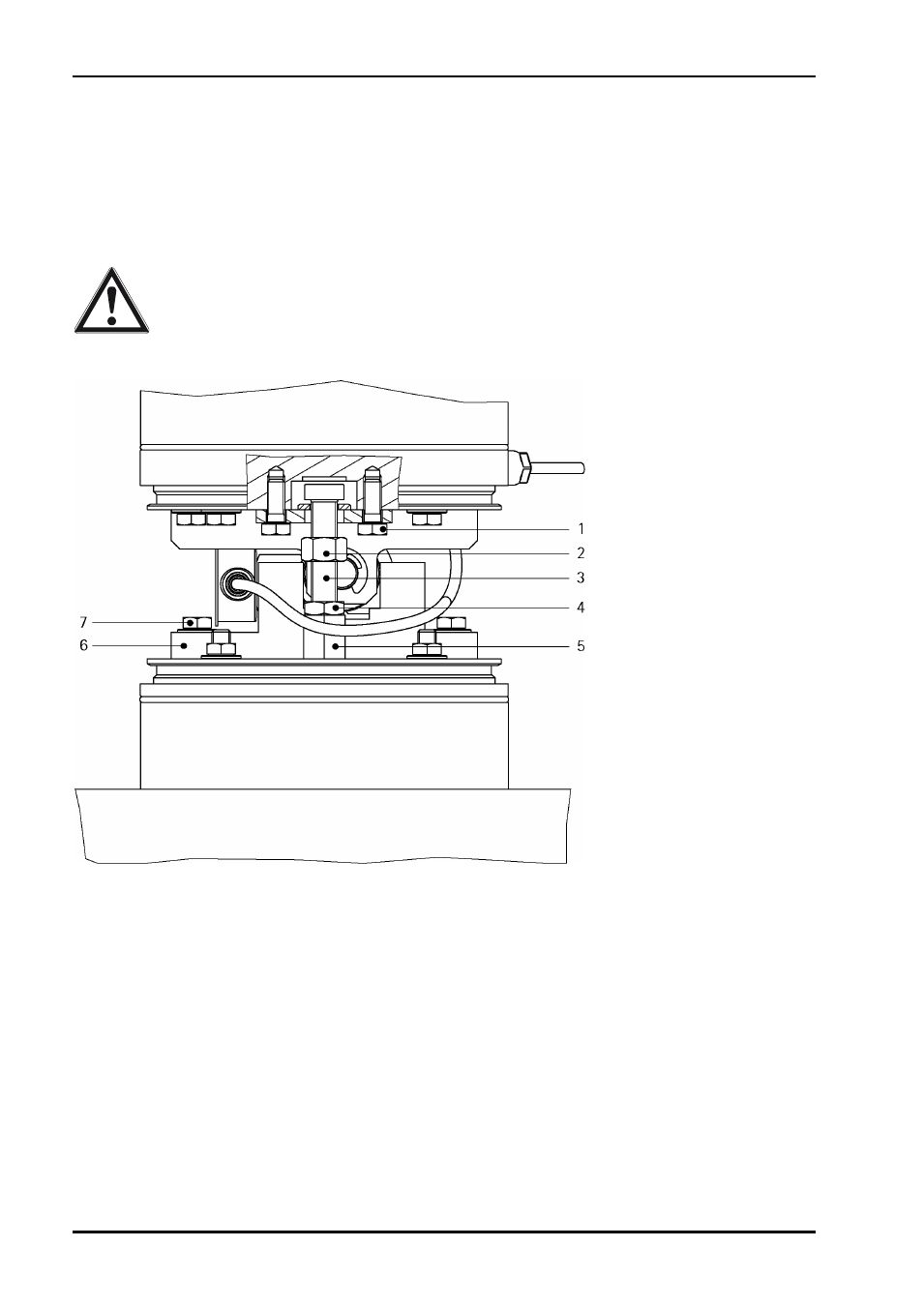

• Remove a defective bellow (not shown) and discard it according to the local regulations.
• Release and remove the bolts (7).
• Fold the stopper (6) onto the bottom plate and withdraw it sideways together with the film.
• Release and remove the bolts (1).
• Release the locknut (4) and screw the bolt of the lift-off protector (3) at the hex (2) into the threaded

bush (5).

• Release and remove the threaded bush (secured with Loctite) with the complete lift-off protector (3).
