ProgressiveRC 8 PowerLab - Manual (Page 62)

Balance connector wiring
When using FMA Wiring mode (Factory Default Setting)

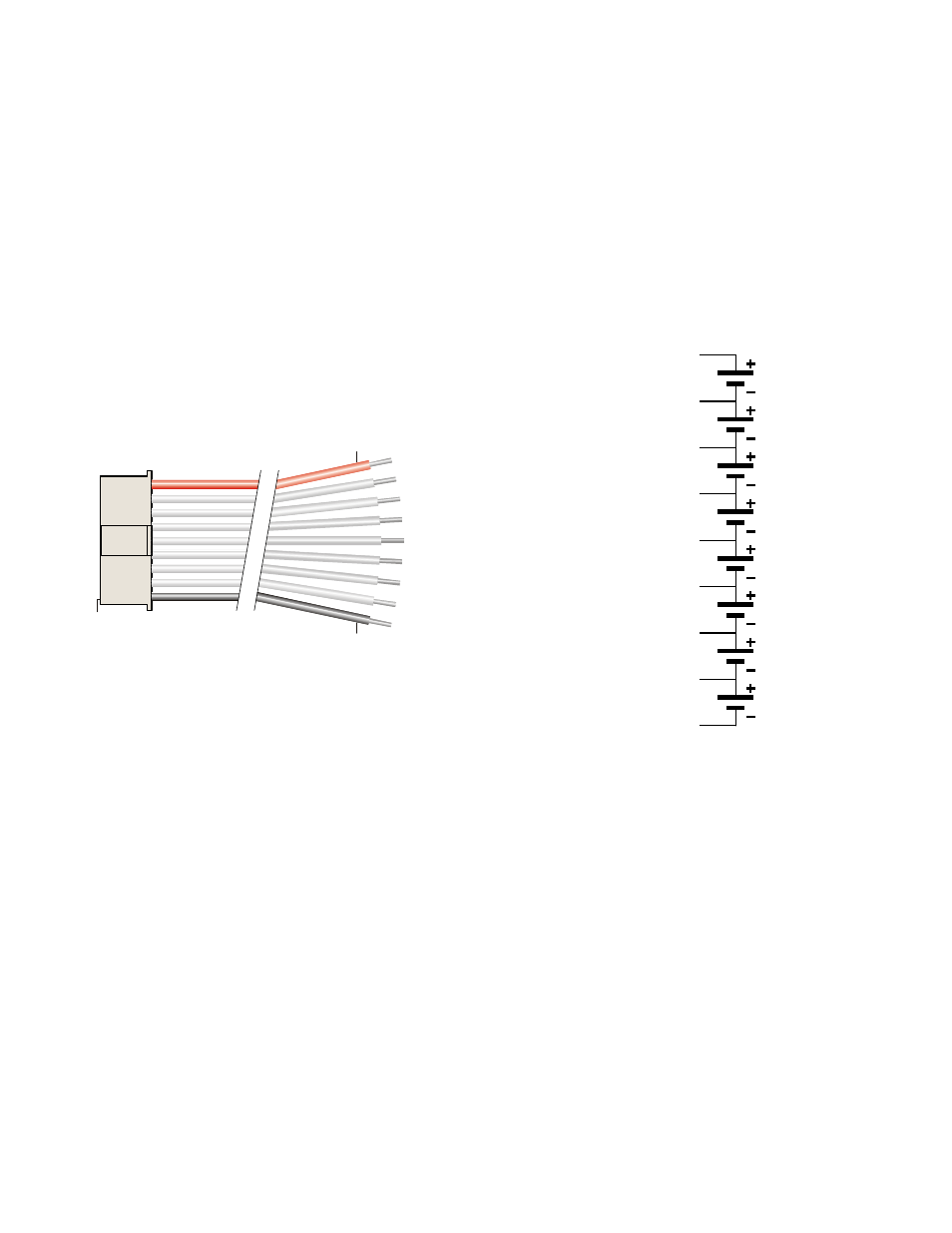

The following diagrams shows how a 9 pin Cellpro (JST PA series) balance connector
(REVO PN CPBP9P-10-US) must be wired to an 8s, 7s, 6s, 5s, 4s, 3s, 2s, and 1s
battery pack when the PowerLab 8 is set to FMA Wiring mode (Factory default).
Whether the following is accomplished via the available adapters, or by physically
connecting (soldering) the 9 pin Cellpro pigtail to a battery pack directly, this is what the
PowerLab must see at its balance connector (output):
Pin 1
Red
Black
Node 5
Node 6
Node 7
Pack positive
Node 4
Node 3
Node 2
Node 1
Pack negative
8s Pack
Pack positive
(red), 29.6V*
Node 4, 14.8V*
Node 5, 18.5V*
Node 6, 22.2V*
Node 7, 25.9V*
Node 3, 11.1V*
Node 2, 7.4V*
Node 1, 3.7V*
Pack negative
(blk), 0V
Cell 5
Cell 6
Cell 7
Cell 8
Cell 4
Cell 3
Cell 2
Cell 1
* Nominal voltage with
respect to pack negative
FMA Cellpro Connector/FMA Wiring Mode
