Connect packs: basic
Connect the pack to PowerLab 8’s Output jacks, Balance Port or both.

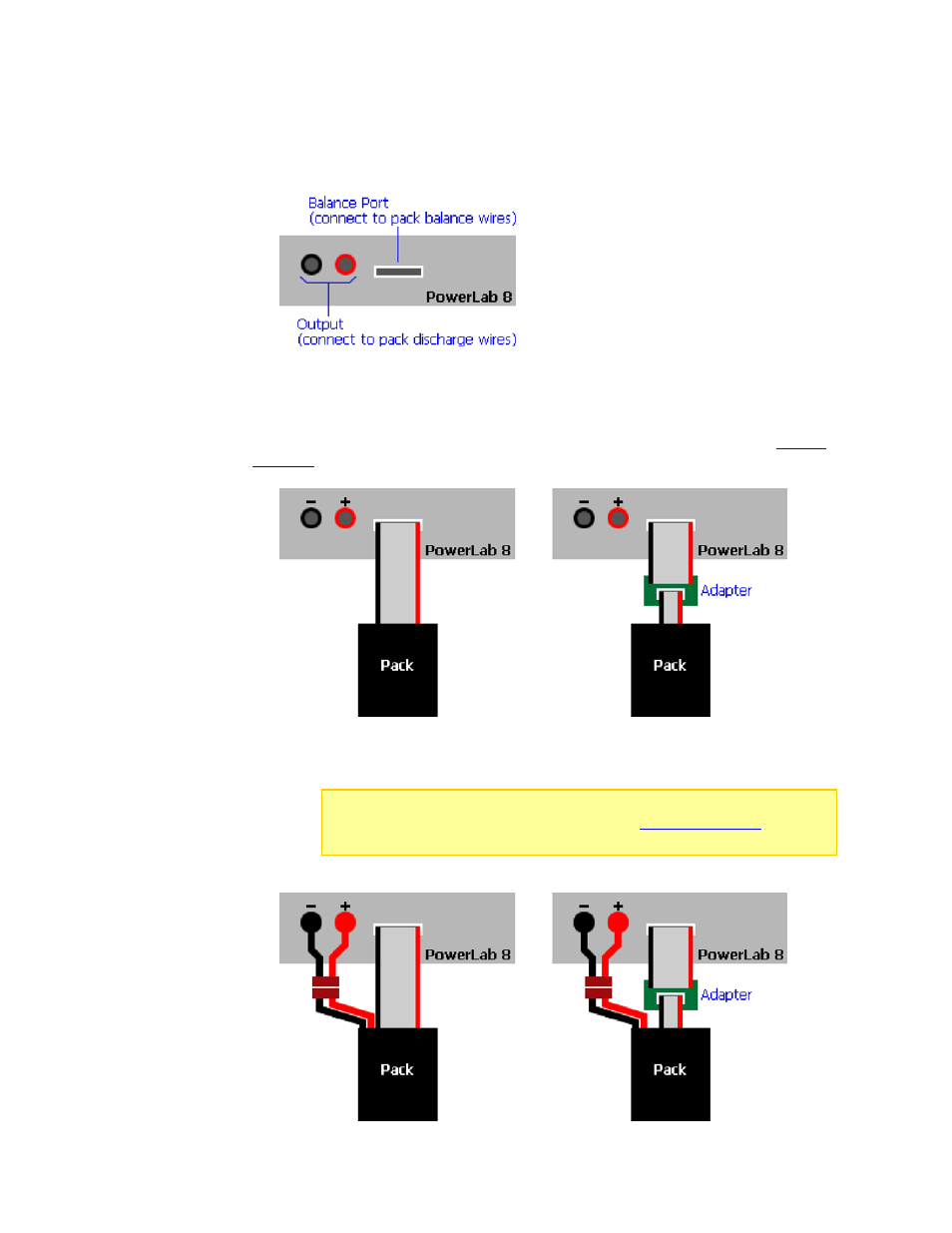

The Balance Port accepts a 9-pin Cellpro balance connector, which supports packs up to
8s. For charge/discharge rates up to 3A, you can attach just the balance connector, as
shown below. If the pack has a different style balance connector, REVOLECTRIX offers
a variety of adapters for most popular connector types and brands
section
in the REVOLECTRIX Web site).
If the pack has both heavy discharge wires and a balance connector, you can connect
both to PowerLab 8 (good for any charge/discharge current):
Note:
Best practice is to connect balance connector first, then connect
discharge wires. When the PowerLab 8 is set to
, you
must connect both the balance connector and the discharge wires.
