Configuration F

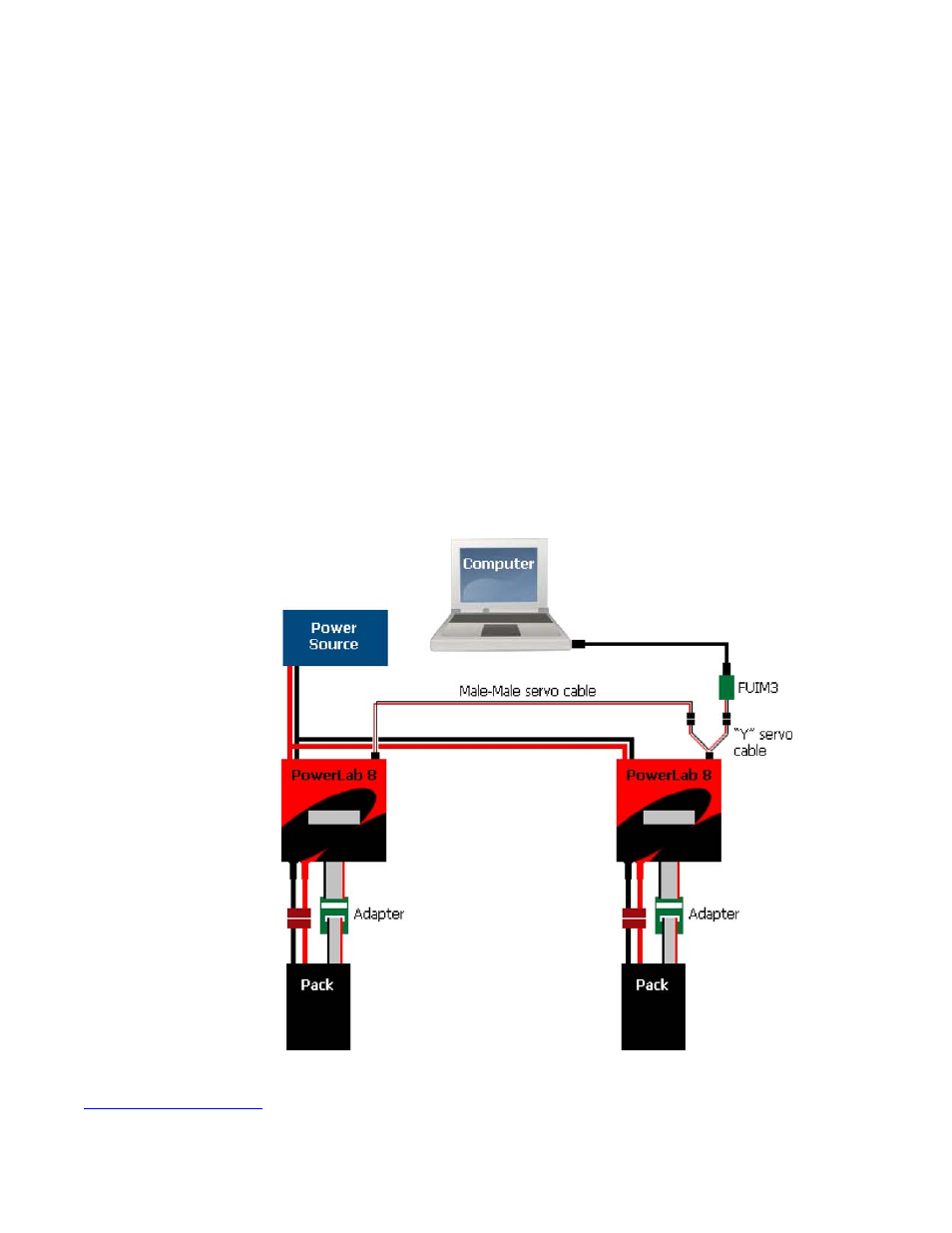

Summary: two PowerLabs charging separate packs, one power source, Expansion
Channel Mode.
Components:
2 PowerLabs
1 power source
2 standard adapters or Safe Parallel Adapters (1 adapter per pack)
2 packs (Safe Parallel Adapters require same cell count for both packs)
1 optional FUIM3 for computer support
1 optional “Y” servo cable (required for Expansion Channel operation with
computer support)
Male-male servo cable (required for Expansion Channel operation; required for
computer support)
PowerLab 8 mode: Expansion Channel.
PowerLab 8 maximum charge power: up to 1344W to each pack (8s) using
24VDC/3400W power source. Standard house circuit would likely not provide enough
power; would require 240VAC power supply for full power.
S ee also
Expansion Channel Mode
